73449 (314-8) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) ENGINE CONTROLS (MODEL 73429 ONLY) Parts Diagram

Garden Tractor

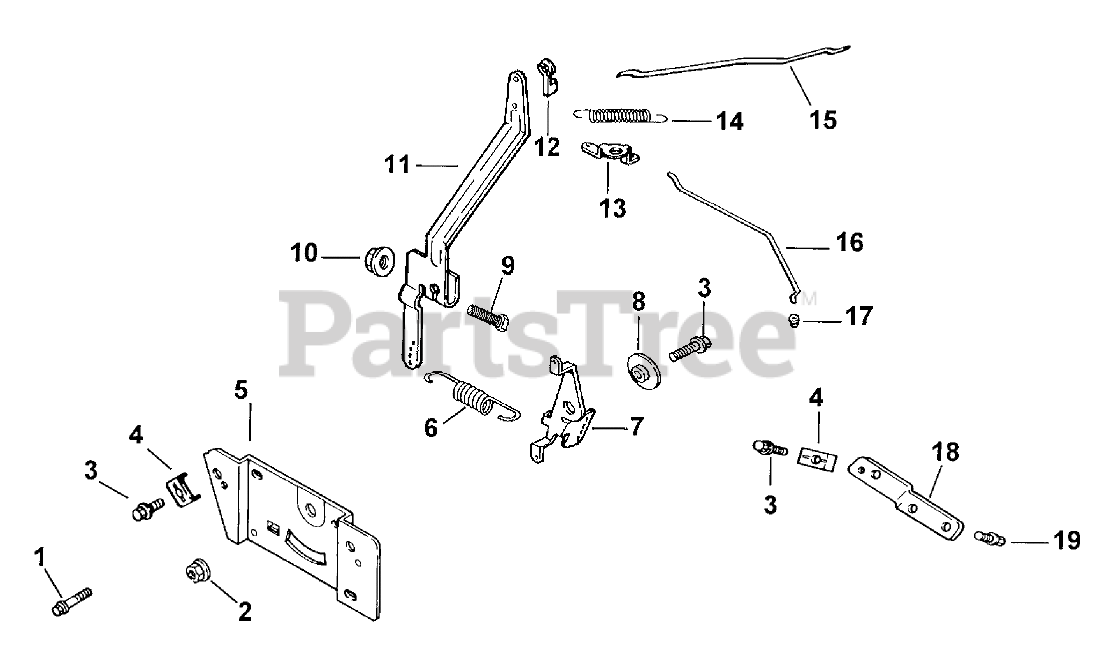

ENGINE CONTROLS (MODEL 73429 ONLY) Parts Diagram

  • Title
1

Kohler M-0664020

Screw Socket

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

2

Kohler M-0541050

Nut, hex. flange M5x0.8

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

3

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$2.49

$

In Stock, Qty 15

0

4

Kohler 12 237 01

Clamp
(Superseded to 12 237 01-S)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$3.49

$

In Stock, Qty 5

0

5

1214605

Plate, control

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

6

1208917

Spring, governor

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

7

1209013

Lever, throttle control

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

8

1211207

Spacer, throttle control

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

9

Kohler SM-0642025

Screw
(Superseded to SM-642025)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$2.49

$

In Stock, only 1 left!

0

10

Kohler M-0641060

Nut
(Superseded to M-641060)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$4.49

$

In Stock, Qty 8

0

11

1209019

Lever, governor

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

12

Kohler 25 158 11

Bushing-Linkage
(Superseded to 25 158 11-S)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$5.99

$

In Stock, only 2 left!

0

13

1209014

Lever, choke-upper

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

14

Kohler 230117

Spring, linkage
(Superseded to 230117-S)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$13.99

$

In Stock, only 1 left!

0

15

1207904

Linkage, throttle

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

16

1207908

Linkage, choke-upper

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

17

Kohler 25 158 08

Bushing-Linkage
(Superseded to 25 158 08-S)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$5.99

$

In Stock, Qty 18

0

18

1212615

Bracket, choke mount

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

19

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$4.49

$

In Stock, only 3 left!

0
