73449 (314-8) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) BATTERY ASSEMBLY Parts Diagram

Garden Tractor

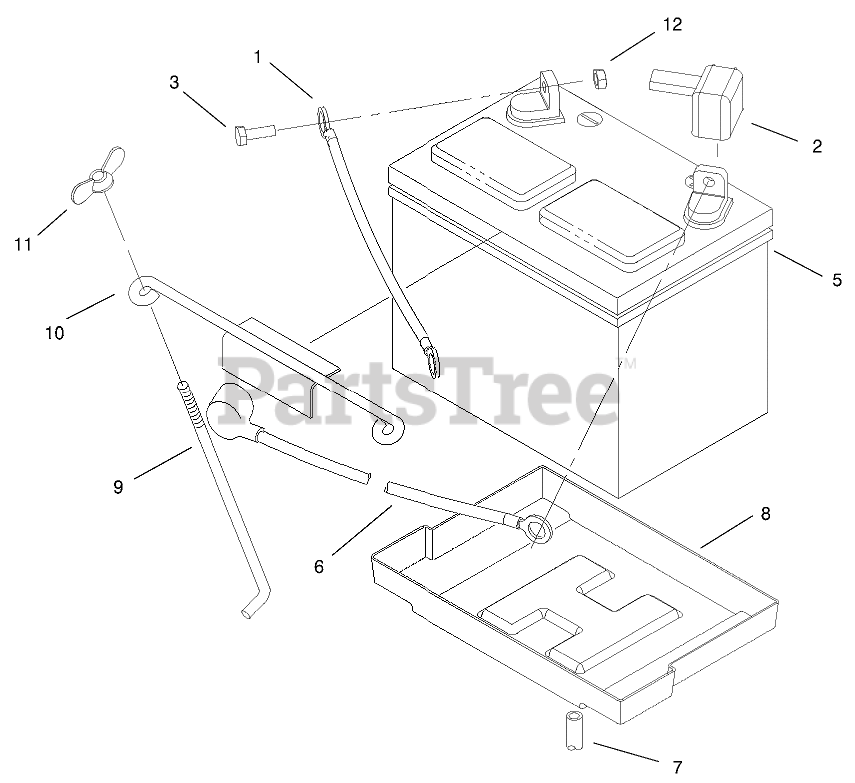

BATTERY ASSEMBLY Parts Diagram

  • Title
1

Toro 95-7654

CABLE-NEGATIVE, BLACK

$51.99

$

Usually ships in 3-6 days

0

2

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 104962

Battery
(Superseded to 105-1692)

$

$

Not available

5

Toro 94-1865

BATTERY (DRY)
(Superseded to 105-1692)

$

$

Not available

6

Toro 100-3539

CABLE-BATTERY, POSITIVE

$86.99

$

Usually ships in 3-6 days

0

7

Toro 114720

TUBE-21" BATTERY DRAIN

$7.99

$

Usually ships in 3-6 days

0

8

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 1 left!

0

9

Toro 113969

HOOK-BATTERY RETAIN

$16.99

$

In Stock, only 2 left!

0

10

Toro 113010

HOLDDOWN-BATTERY

$27.99

$

In Stock, only 4 left!

0

11

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
