73449 (314-8) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) AIR INTAKE/FILTRATION (MODEL 73449 ONLY) Parts Diagram

Garden Tractor

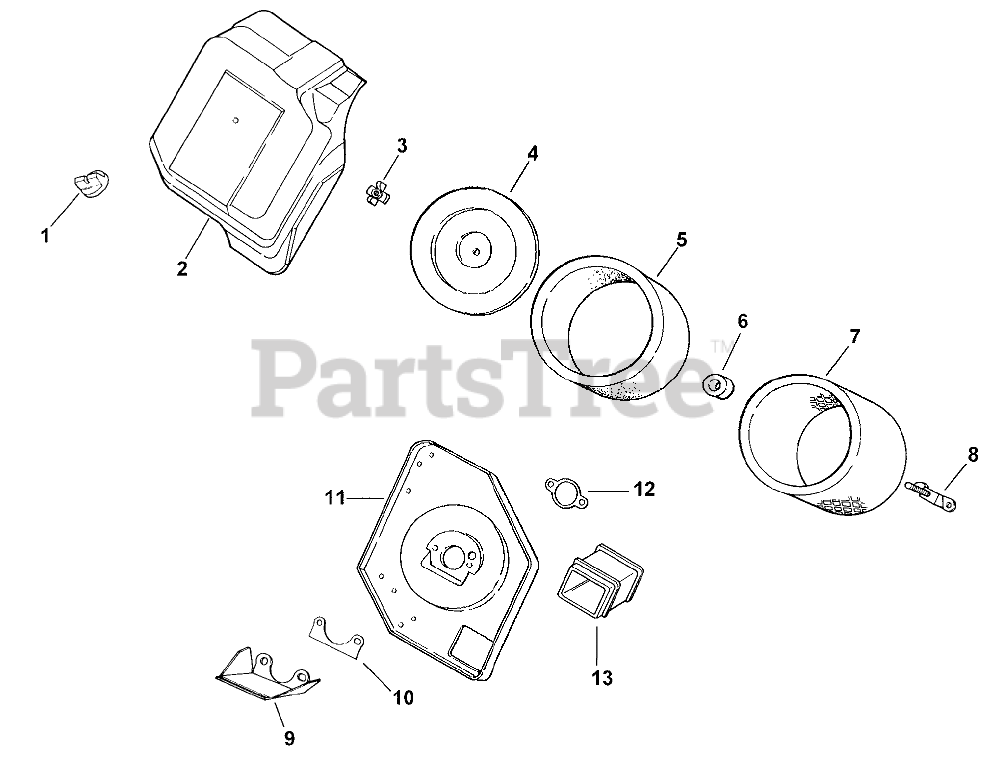

AIR INTAKE/FILTRATION (MODEL 73449 ONLY) Parts Diagram

  • Title

1

2534103

Knob-Cover

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

2

1209615

Cover, air cleaner

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

3

Kohler 12 100 01

Wingnut
(Superseded to 12 100 01-S)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$3.99

$

In Stock, only 2 left!

0

4

1209635

Cover, air cleaner element with deflector

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

5

5208301

Precleaner, element

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

6

2403203

Seal, insert

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

7

4708301

Element, air cleaner

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

8

1212647

Bracket, air cleaner

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

9

1214614

Plate, air cleaner

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

10

1204109

Gasket, collector plate

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

11

1209406

Base, air cleaner

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

12

1204102

Gasket-Air Cleaner

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

13

1212307

Tube, air intake

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

Kohler 12 113 04

Decal-Air Cleaner
(Superseded to 12 113 04-S)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$2.49

$

In Stock, only 1 left!

0

Kohler 12 113 04

Decal-Air Cleaner
(Superseded to 12 113 04-S)

Note: Not illustrated

$2.49

$

In Stock, only 1 left!

0
