73449 (314-8) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) TRANSMISSION 8-SPEED 4 PINION (MODEL 73429 ONLY) Parts Diagram

Garden Tractor

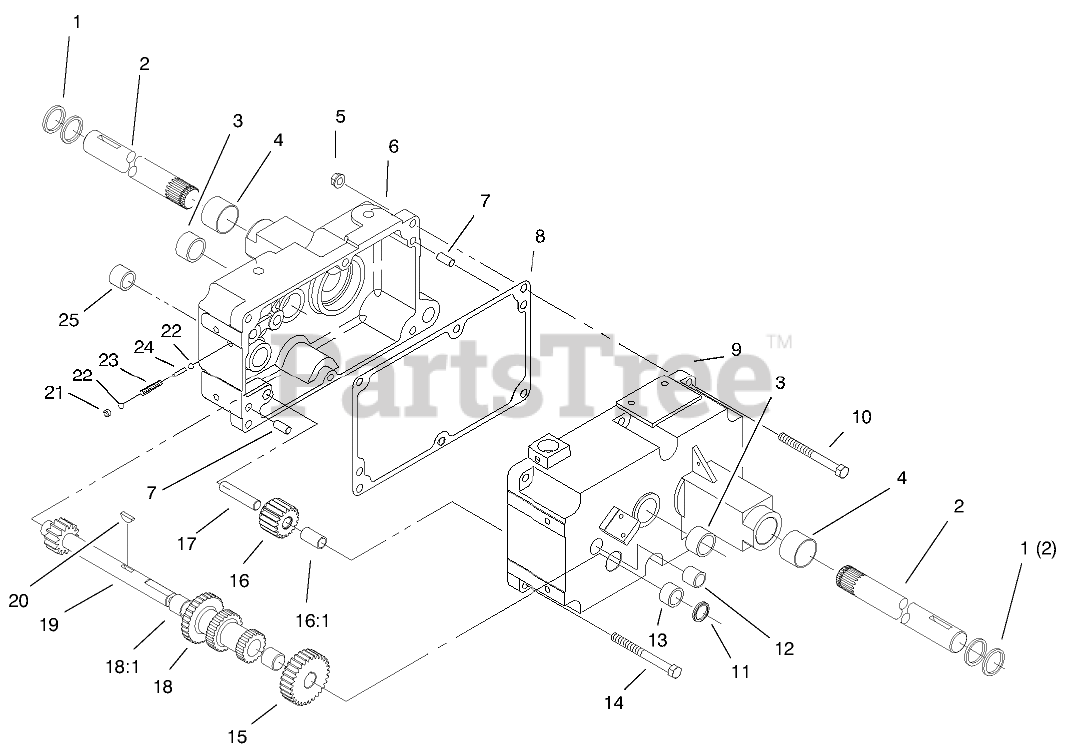

TRANSMISSION 8-SPEED 4 PINION (MODEL 73429 ONLY) Parts Diagram

  • Title

1

Toro 100443

SEAL-OIL

$14.99

$

Usually ships in 3-6 days

0

2

Toro 105875

AXLE-REAR

$411.99

$

Usually ships in 3-6 days

0

3

Toro 1532

BEARING-NEEDLE

$59.99

$

In Stock, only 4 left!

0

4

Toro 9416

BEARING

$81.99

$

Usually ships in 3-6 days

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

6

Toro 111200-01

CASE-RH TRANS

$

$

Not available

7

Toro 3915

PIN-DOWEL

$7.99

$

Usually ships in 3-6 days

0

8

Toro 3912

GASKET-TRANSMISSION

$10.99

$

In Stock, only 1 left!

0

9

Toro 95-5143-01

CASE-TRANS LH

$1178.99

$

Usually ships in 3-6 days

0

10

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

0

11

Toro 100441

SEAL-OIL

$9.99

$

In Stock, only 2 left!

0

12

Toro 83-2890

BEARING-NEEDLE

$

$

Not available

13

Toro 1523

BEARING-NEEDLE

$42.99

$

Usually ships in 3-6 days

0

14

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

15

Toro 3527

GEAR-CLUSTER SHAFT

$

$

Not available

16

Toro 4204

GEAR/BUSHING ASM-REVERSE IDLER

$165.99

$

Usually ships in 3-6 days

0

17

Toro 3909

PIN-DIFFERENTIAL

$

$

Not available

18

Toro 7269

GEAR-CLUSTER

$

$

Not available

18:1

Toro 1504

BUSHING-BRONZE

$50.99

$

Usually ships in 3-6 days

0

19

Toro 83-3530

SHAFT-CLUSTER

$524.99

$

Usually ships in 3-6 days

0

20

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, Qty 5

0

21

Toro 1243

CUP-PLUG

$5.99

$

In Stock, Qty 10

0

22

Toro 3517

BALL-DETENT

$0.99

$

In Stock, Qty 5

0

23

Toro 106030

SPRING-SHIFT STOP

$2.99

$

In Stock, only 3 left!

0

24

Toro 5614

PIN-SHIFT

$

$

Not available

25

Toro 1529

BEARING-NEEDLE

$50.99

$

Usually ships in 3-6 days

0
