73449 (314-8) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) TRANSAXLE ASSEMBLY Parts Diagram

Garden Tractor

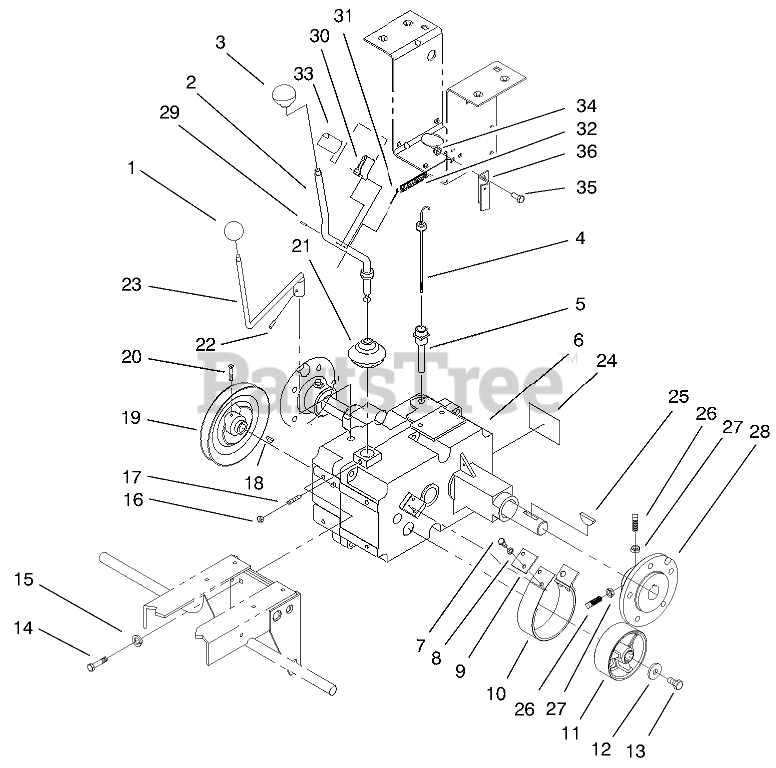

TRANSAXLE ASSEMBLY Parts Diagram

  • Title
1

$16.99

$

Usually ships in 3-6 days

0

2

Toro 95-7684

SHIFT ROD ASM

$200.99

$

In Stock, only 1 left!

0

3

$15.99

$

In Stock, Qty 5

0

4

Toro 101847-03

DIPSTICK

$

$

Not available

5

Toro 102703

NIPPLE-FILL, TRANSMISSION

$

$

Not available

6

Toro 94-6670

Transmission ASM 8 Spd 4 (Only On: 73429)

$

$

Not available

6

Toro 94-6671

Transmission ASM 8 Spd 8 (Only On: 73449)

$6406.99

$

Usually ships in 3-6 days

0

7

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 94-6696-03

PLATE-BRAKE

$10.99

$

Usually ships in 3-6 days

0

10

Toro 9593

BRAKE BAND ASM

$156.99

$

In Stock, only 4 left!

0

11

Toro 106719

DRUM-BRAKE

$109.99

$

Usually ships in 3-6 days

0

12

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

13

Toro 110234

SCREW-HEX HD CAP

$5.49

$

In Stock, only 1 left!

0

14

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

15

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

16

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

17

Toro 1239

SETSCREW

$10.99

$

In Stock, Qty 7

0

18

Toro 937221

KEY-HI PRO
(Superseded to 3257-17)

$6.49

$

Usually ships in 3-6 days

0

19

Toro 106165

PULLEY-TRANSMISSION

$148.99

$

Usually ships in 3-6 days

0

20

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

21

Toro 3577

COVER-DUST

$

$

Not available

22

Toro 933184

PIN-SPIROL

$1.49

$

In Stock, Qty 8

0

23

Toro 110727

SHIFT ROD ASM

$93.99

$

Usually ships in 3-6 days

0

24

Toro 94-1834

DECAL-UNIDRIVE

$5.99

$

In Stock, Qty 7

0

25

Toro 937108

KEY-WOODRUFF

$5.99

$

In Stock, only 3 left!

0

26

Toro 3243-5

SCREW-SET, SQH

$2.99

$

In Stock, Qty 13

0

27

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

28

Toro 105763-03

HUB-WHEEL

$191.99

$

In Stock, only 1 left!

0

29

$0.99

$

Usually ships in 3-6 days

0

30

Toro 95-7683

MAGNET CLIP ASM

$

$

Not available

31

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

32

Toro 110769

SPRING-EXTENSION

$14.99

$

In Stock, only 4 left!

0

33

Toro 98-1748

SHIELD-MAGNET

$29.99

$

In Stock, only 1 left!

0

34

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

35

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

36

Toro 99-8029-03

BRACKET-SPRING

$

$

Not available
