73449 (314-8) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) STARTER (MODEL 73429 ONLY) Parts Diagram

Garden Tractor

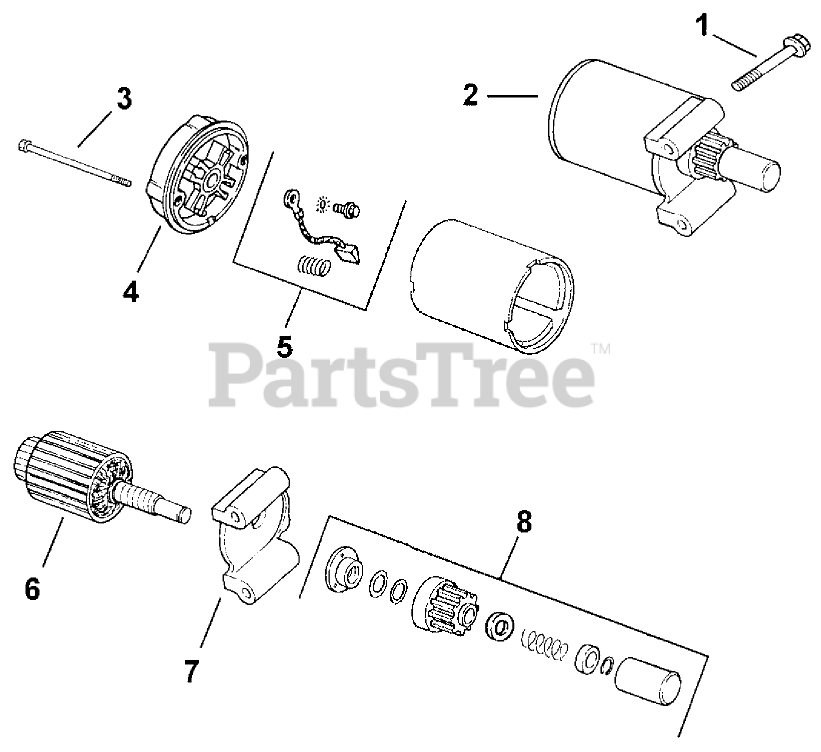

STARTER (MODEL 73429 ONLY) Parts Diagram

  • Title

1

Toro M-0839070D

Screw, hex. flange M8x1.25x70

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

2

1209812

Starter assembly (Includes 3-8)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

3

Kohler 12 086 25

Screw
(Superseded to 12 086 25-S)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

4

1222710

Cap-Commutator End

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

5

Kohler 82 755 28

Kit-Brush & Spring
(Superseded to 82 755 28-S)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

6

4517003

Armature

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

7

1222705

Cap-Drive End

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

8

1275553

Kit-Drive

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available
