73449 (314-8) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) CARBURETOR & FUEL PUMP (MODEL 73429 ONLY) Parts Diagram

Garden Tractor

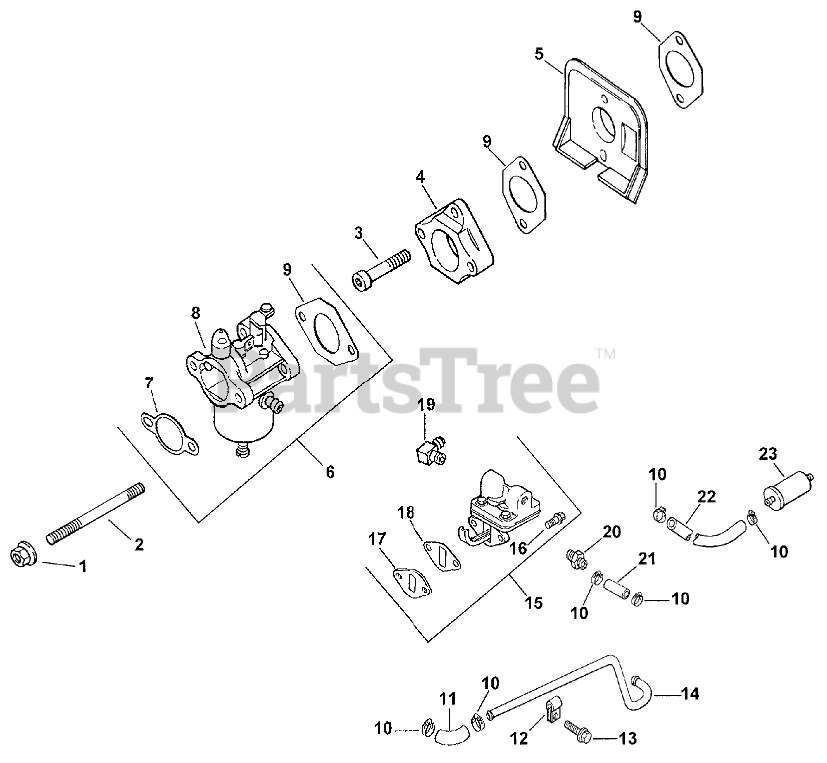

CARBURETOR & FUEL PUMP (MODEL 73429 ONLY) Parts Diagram

  • Title

1

Kohler M-0641060

Nut
(Superseded to M-641060)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$4.49

$

In Stock, Qty 8

0

2

Kohler M-0629085

Stud M6x1.0x85
(Superseded to M-629085-S)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$3.99

$

Usually ships in 2-5 days

0

3

Kohler M-0644035

Screw, hex. socket cap M6x1.0x35
(Superseded to M-644035-S)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$2.99

$

Usually ships in 2-5 days

0

4

1202904

Adapter, carburetor

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

5

1226504

Deflector-Heat

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

6

1285360

Kit, carburetor w/gaskets (Incl. 7-90)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

7

1204102

Gasket-Air Cleaner

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

8

1205360

Carburetor assembly (For information only not available separately)(Service with parts listed under "Not Illustrated")

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

9

1204101

Gasket-Carburetor

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

10

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$4.99

$

In Stock, only 2 left!

0

11

1235307

Line fuel

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

12

1215401

Clip, tube

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

13

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$4.49

$

In Stock, only 2 left!

0

14

1235311

Line, fuel-metal

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

15

1255901

Kit, fuel pump (Includes 16-18)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

16

Kohler M-0645020

Screw
(Superseded to M-645020)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$2.49

$

In Stock, only 1 left!

0

17

1211205

Spacer

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

18

2504109

Gasket-Fuel Pump

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

19

Kohler 25 155 02

Connector
(Superseded to 25 155 02-S)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$14.99

$

In Stock, only 1 left!

0

20

Kohler X-380-1

Connector
(Superseded to X-380-1-S)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$3.99

$

In Stock, only 1 left!

0

21

1235301

Line-Fuel

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

22

2535302

Line-Fuel 3"

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

23

2505002

Filter-Fuel

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

23

2505002

Filter-Fuel

Note: Not illustrated

$

$

Not available

1236805

Needle-Idle

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

1236805

Needle-Idle

Note: Not illustrated

$

$

Not available

1208909

Spring-Idle

Note: Not illustrated

$

$

Not available

1208909

Spring-Idle

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

1208604

Screw-Idle

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

1208604

Screw-Idle

Note: Not illustrated

$

$

Not available

1214603

Plate-Choke

Note: Not illustrated

$

$

Not available

1214603

Plate-Choke

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

2508627

Screw

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

2508627

Screw

Note: Not illustrated

$

$

Not available

1214409

Shaft-w/Lever & Seal

Note: Not illustrated

$

$

Not available

1214409

Shaft-w/Lever & Seal

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

1233704

Jet-Main

Note: Not illustrated

$

$

Not available

1233704

Jet-Main

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

1275708

Kit-Choke Repair

Note: Not illustrated

$

$

Not available

1275708

Kit-Choke Repair

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

1214612

Plate-Choke

Note: Not illustrated

$

$

Not available

1214612

Plate-Choke

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

1217306

Cap-Choke Lever

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

1217306

Cap-Choke Lever

Note: Not illustrated

$

$

Not available

1275702

Kit-Float

Note: Not illustrated

$

$

Not available

1275702

Kit-Float

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

1204105

Gasket-Bowl

Note: Not illustrated

$

$

Not available

1204105

Gasket-Bowl

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

1210401

Bowl-Fuel

Note: Not illustrated

$

$

Not available

1210401

Bowl-Fuel

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

1208605

Screw-Bowl

Note: Not illustrated

$

$

Not available

1208605

Screw-Bowl

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

1204106

Gasket-Bowl

Note: Not illustrated

$

$

Not available

1204106

Gasket-Bowl

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

1275703

Kit-Carburetor Repair

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

1275703

Kit-Carburetor Repair

Note: Not illustrated

$

$

Not available
