73448 (314-8) - Toro Garden Tractor (SN: 089000500 - 089099999) (1998) HOODSTAND, CONSOLE Parts Diagram

Garden Tractor

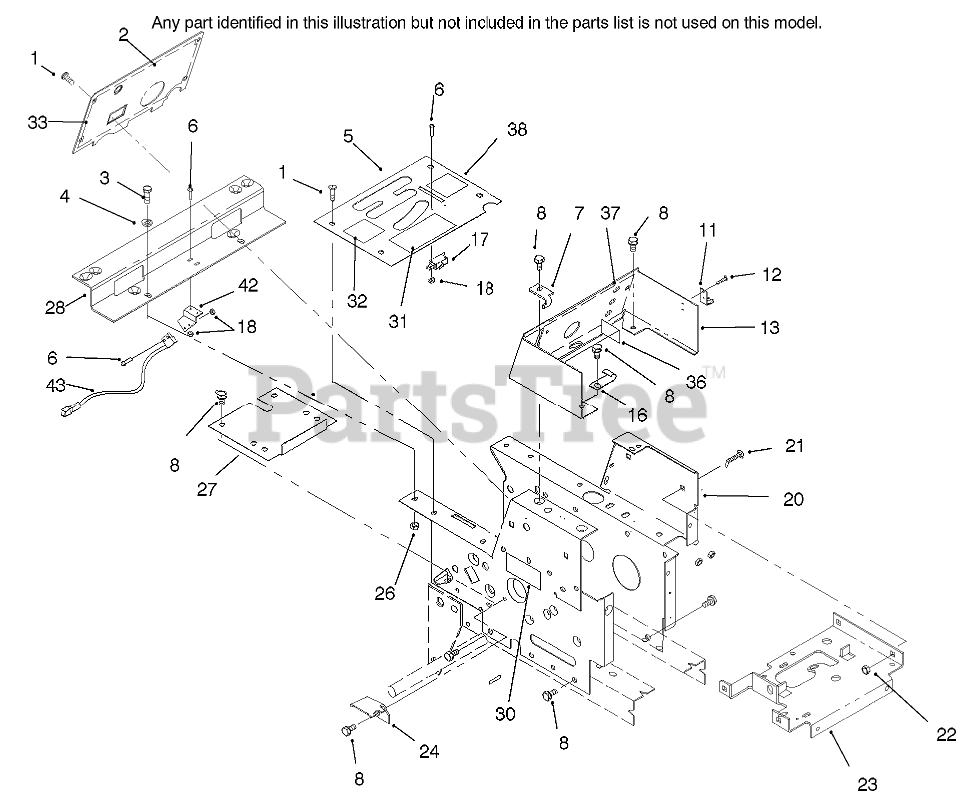

HOODSTAND, CONSOLE Parts Diagram

  • Title
1

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

2

Toro 95-7675-03

PLATE-HOODSTAND

$

$

Not available

3

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 111386-03

Plate-Shift

$

$

Currently unavailable

6

Toro 9109484

SCREW-PPH

$0.99

$

In Stock, Qty 10

0

7

Toro 112415

STOP-PTO

$21.99

$

In Stock, only 1 left!

0

8

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

11

Toro 117343

KEEPER-LATCH

$4.99

$

In Stock, only 2 left!

0

12

Toro 117432

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

13

Toro 95-7670-03

CONSOLE

$111.99

$

Usually ships in 3-6 days

0

16

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

17

Toro 111332

SWITCH

$12.99

$

In Stock, only 2 left!

0

18

Toro 9157324

NUT-HEX

$1.49

$

In Stock, Qty 7

0

19

$2.99

$

In Stock, Qty 20+

0

20

Toro 95-7676-03

HOODSTAND ASM

$

$

Not available

21

Toro 117371

BOLT CARR. 5/16X1/2 BK

$

$

Not available

22

Toro 9151126

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

23

Toro 78-3010-03

SUPPORT-BATTERY

$

$

Not available

24

Toro 88-2170-03

BRACKET-BELT SUPPORT

$

$

Not available

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 106250-03

COVER-DUST

$

$

Not available

28

Toro 95-7665-03

BRACKET-FENDER

$65.99

$

In Stock, only 1 left!

0

30

Toro 92-9829

DECAL - MODEL 314-8

$

$

Not available

31

Toro 92-8946

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0

32

Toro 111534

DECAL-SHIFT PATTERN

$9.49

$

Usually ships in 3-6 days

0

33

Toro 98-0675

DECAL - DASH, LOWER

$

$

Not available

36

Toro 111926

DECAL ELECT SYSTEM

$

$

Not available

37

Toro 98-0676

DECAL - CONSOLE

$

$

Not available

38

Toro 111510

DECAL-PARKING, BRAKE

$8.99

$

Usually ships in 3-6 days

0

39

Toro 116397

RELAY

$40.99

$

In Stock, only 1 left!

0

40

Toro 3234-33

SCREW-HHF

$0.99

$

In Stock, Qty 10

0

41

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

42

Toro 95-7666

BRACKET-SWITCH, REED

$

$

Not available

43

Toro 95-7669

SWITCH-REED, MAGNETIC

$

$

Not available

44

Toro 3290-378

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, Qty 8

0
