73448 (314-8) - Toro Garden Tractor (SN: 089000500 - 089099999) (1998) CLUTCH Parts Diagram

Garden Tractor

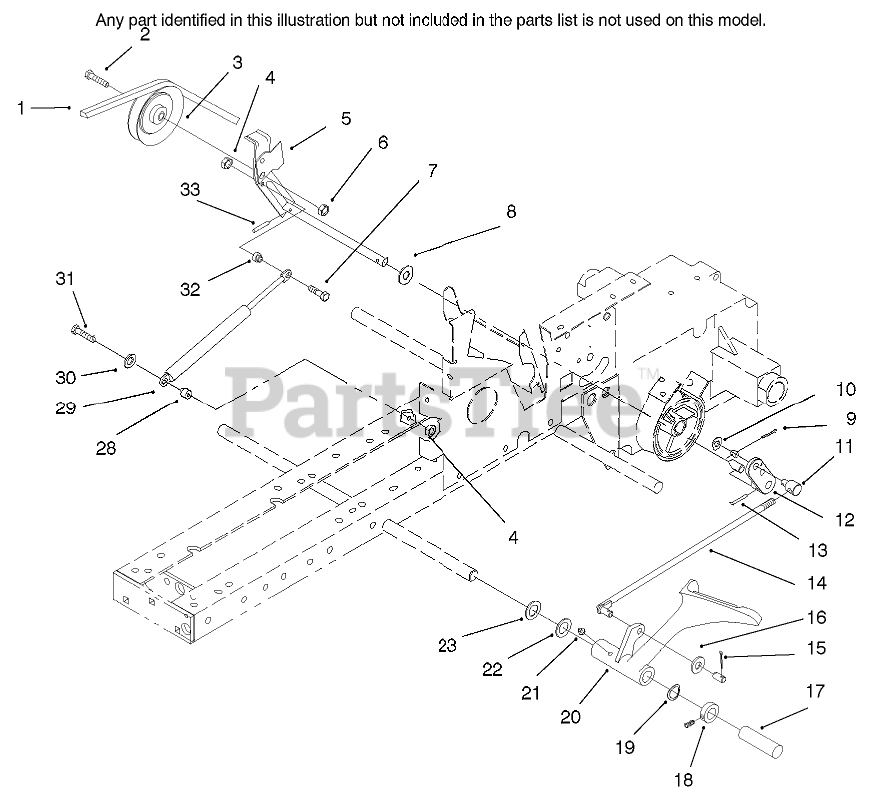

CLUTCH Parts Diagram

  • Title
1

Toro 93-9808

BELT-V IN

$68.99

$

In Stock, only 1 left!

0

2

Toro 106193

BOLT-SPECIAL HEX

$10.99

$

In Stock, Qty 7

0

3

Toro 95-7668

PULLEY-V, IDLER

$25.99

$

In Stock, only 2 left!

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 78-2970-03

Arm-Idler

$

$

Currently unavailable

6

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

7

Toro 321-31

Capscrew
(Superseded to 321-5)

$0.99

$

In Stock, Qty 20+

0

8

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

9

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

10

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 101161

TRUNNION

$

$

Not available

12

Toro 105896-03

ARM-CLUTCH ROD

$64.99

$

In Stock, only 1 left!

0

13

Toro 933190

PIN-SPIROL

$

$

Not available

14

Toro 103347

ROD AND GUIDE ASM

$58.99

$

Usually ships in 3-6 days

0

15

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

16

Toro 920248

WASHER-NYLON

$1.49

$

Usually ships in 3-6 days

0

17

Toro 94-6683

SLEEVE-PROTECTIVE

$8.99

$

In Stock, only 1 left!

0

18

Toro 111383

COLLAR

$6.99

$

In Stock, only 1 left!

0

19

Toro 7896

WASHER-BOWED

$1.49

$

In Stock, Qty 5

0

20

Toro 94-3703-01

PEDAL-BRAKE, CLUTCH

$170.99

$

Usually ships in 3-6 days

0

21

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

22

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

23

Toro 9202254

WASHER

$3.99

$

In Stock, only 2 left!

0

28

Toro 78-3250

SPACER-SHOULDER-.400

$26.99

$

Usually ships in 3-6 days

0

29

Toro 78-3240

ASS'Y-GAS SPRING

$196.99

$

Usually ships in 3-6 days

0

30

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

32

Toro 78-3260

SPACER-SHOULDER-.200

$42.99

$

Usually ships in 3-6 days

0

33

Toro 933267

PIN-SPIROL

$1.49

$

In Stock, Qty 11

0
