73448 (314-8) - Toro Garden Tractor (SN: 089000001 - 089000499) (1998) STARTER Parts Diagram

Garden Tractor

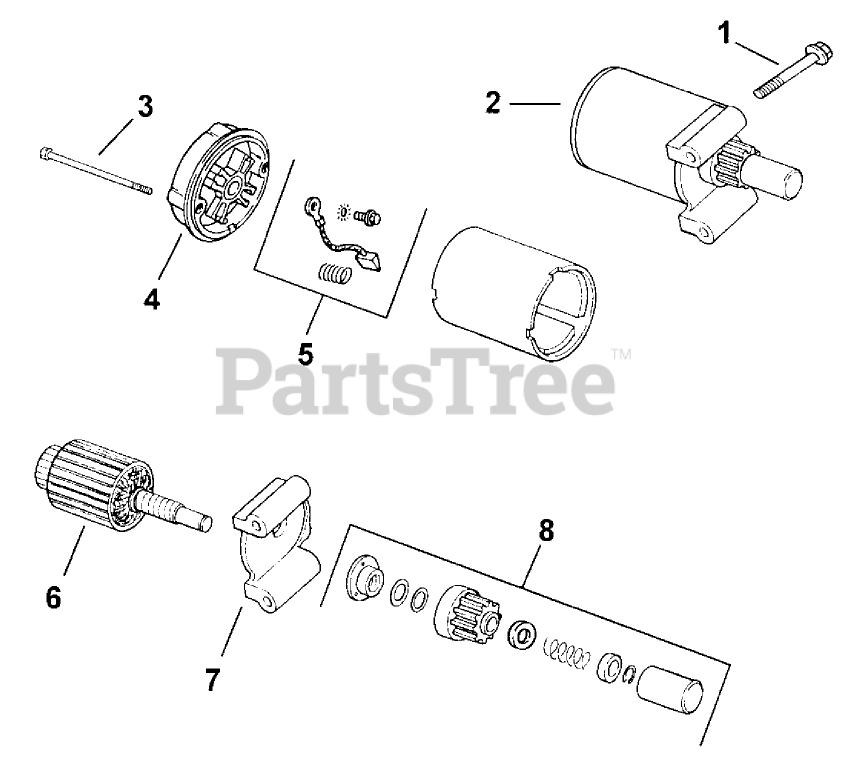

STARTER Parts Diagram

  • Title
1

Toro M-0839070D

Screw, hex. flange M8x1.25x70

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

2

1209812

Starter assembly (Includes 3-8)

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Not available

3

Kohler 12 086 25

Screw
(Superseded to 12 086 25-S)

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Not available

4

1222710

Cap-Commutator End

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Not available

5

Kohler 82 755 28

Kit-Brush & Spring
(Superseded to 82 755 28-S)

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Not available

6

4517003

Armature

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Not available

7

1222705

Cap-Drive End

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Not available

8

1275553

Kit-Drive

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Not available
