73448 (314-8) - Toro Garden Tractor (SN: 089000001 - 089000499) (1998) GAUGES, WARNING LIGHTS & CONTROLS Parts Diagram

Garden Tractor

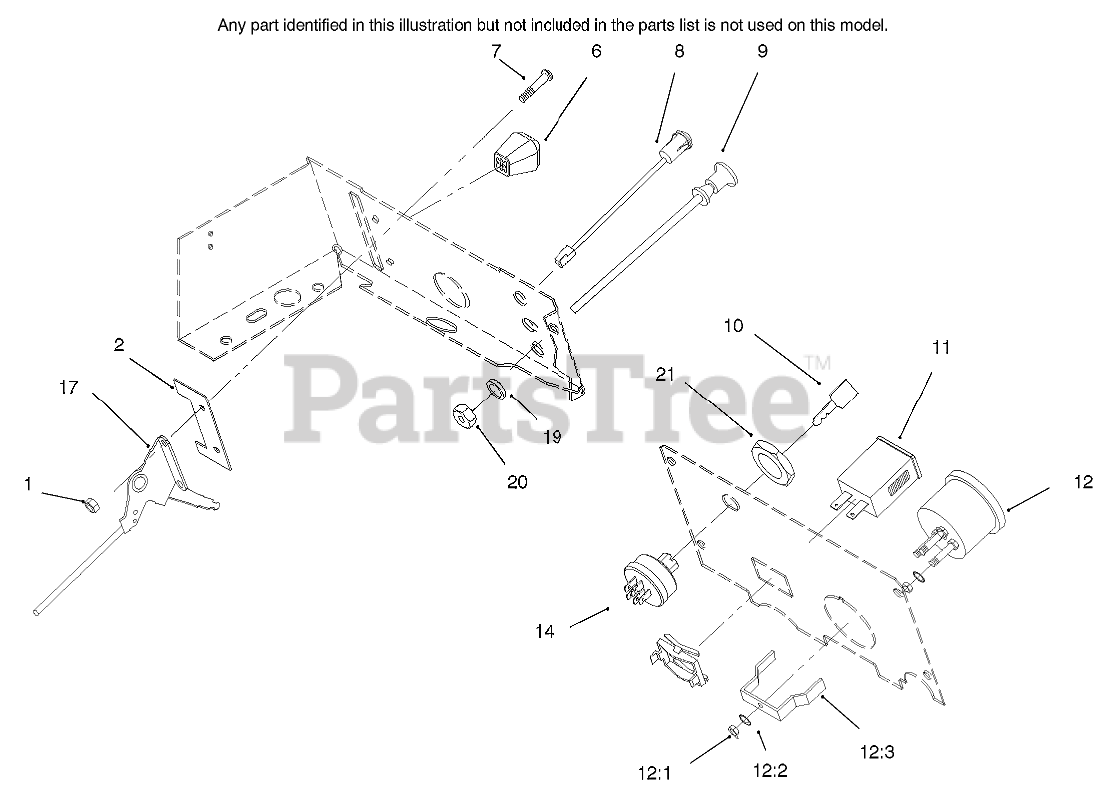

GAUGES, WARNING LIGHTS & CONTROLS Parts Diagram

  • Title

1

Toro 9157404

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

2

Toro 120590-03

STOP-THROTTLE

$

$

Not available

6

Toro 66-0120

KNOB

$5.99

$

In Stock, only 2 left!

0

7

Toro 9107922

SCRW-PHC

$10.99

$

Usually ships in 3-6 days

0

8

Toro 95-7652

LIGHT-INDICATOR

$49.99

$

Usually ships in 3-6 days

0

9

Toro 95-7656

CHOKE CONTROL ASM

$62.99

$

In Stock, only 2 left!

0

10

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, Qty 20+

0

11

Toro 94-4208

HOURMETER
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

12

Toro 79-0060

VOLTMETER

$168.99

$

Usually ships in 3-6 days

0

12:1

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

12:2

Toro 3255-25

WASHER-LOCK
(Superseded to 3255-20)

$0.99

$

Usually ships in 3-6 days

0

12:3

Toro 78-0080

CLAMP-MOUNTING

$

$

Not available

14

Toro 92-6785

SWITCH-IGNITION

$86.99

$

In Stock, only 2 left!

0

17

Toro 95-7657

THROTTLE CONTROL ASM

$67.99

$

Usually ships in 3-6 days

0

19

Toro 3256-37

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

20

Toro 109530

NUT-HEX PALNUT

$1.49

$

In Stock, only 4 left!

0

21

Toro 700919

NUT

$5.99

$

In Stock, only 2 left!

0
