73448 (314-8) - Toro Garden Tractor (SN: 089000001 - 089000499) (1998) FOOTREST & HOODSTAND SIDE COVERS Parts Diagram

Garden Tractor

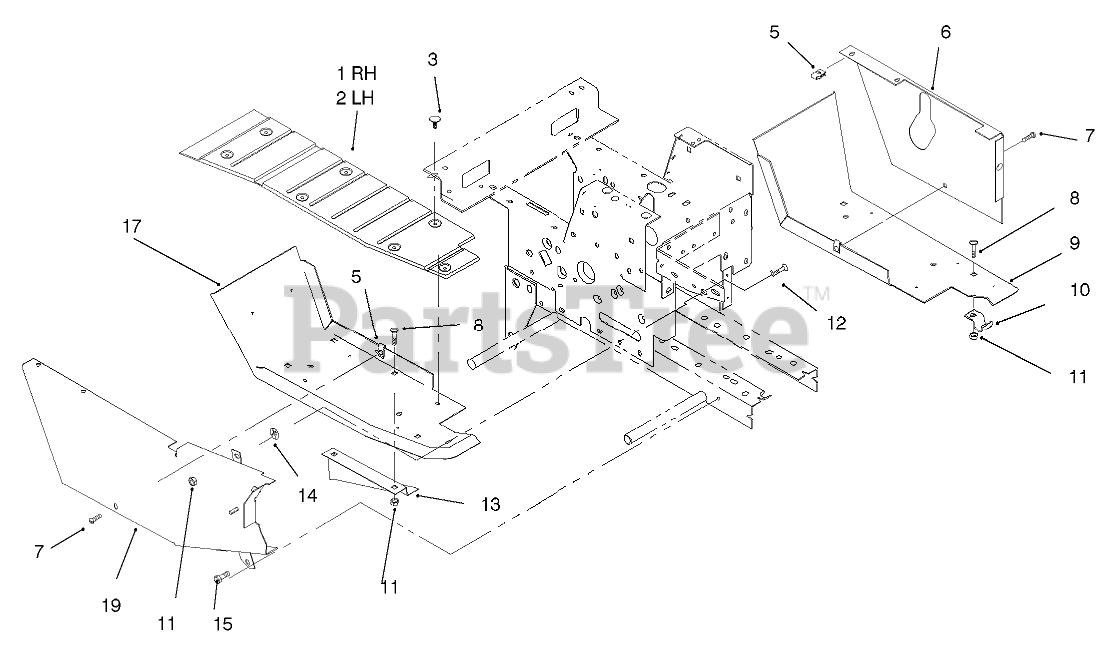

FOOTREST & HOODSTAND SIDE COVERS Parts Diagram

  • Title

1

Toro 94-3710

PAD-FOOT RH

$77.99

$

Usually ships in 3-6 days

0

2

Toro 94-3712

PAD-FOOT LH

$77.99

$

Usually ships in 3-6 days

0

3

Toro 3290-479

FASTENER-PANEL

$4.99

$

In Stock, Qty 20+

0

5

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

6

Toro 113935-01

COVER-LH

$81.99

$

Usually ships in 3-6 days

0

7

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

8

Toro 116000

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

9

Toro 101625

PINION SHAFT

$

$

Not available

9

Toro 101626

GEAR

$

$

Not available

9

Toro 94-3522-01

FOOTREST-LH

$

$

Not available

10

Toro 7456

BRACKET

$

$

Not available

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

13

Toro 106352-01

GUIDE-LOWER BELT

$21.99

$

Usually ships in 3-6 days

0

14

Toro 108457

NUT-PUSH

$

$

Not available

15

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

17

Toro 94-3521-01

FOOTREST-RH

$170.99

$

Usually ships in 3-6 days

0

18

Toro 98-1447

Decal-Certification

$

$

Not available

19

Toro 95-7695-01

SINGLE BELT GUARD ASM

$

$

Not available
