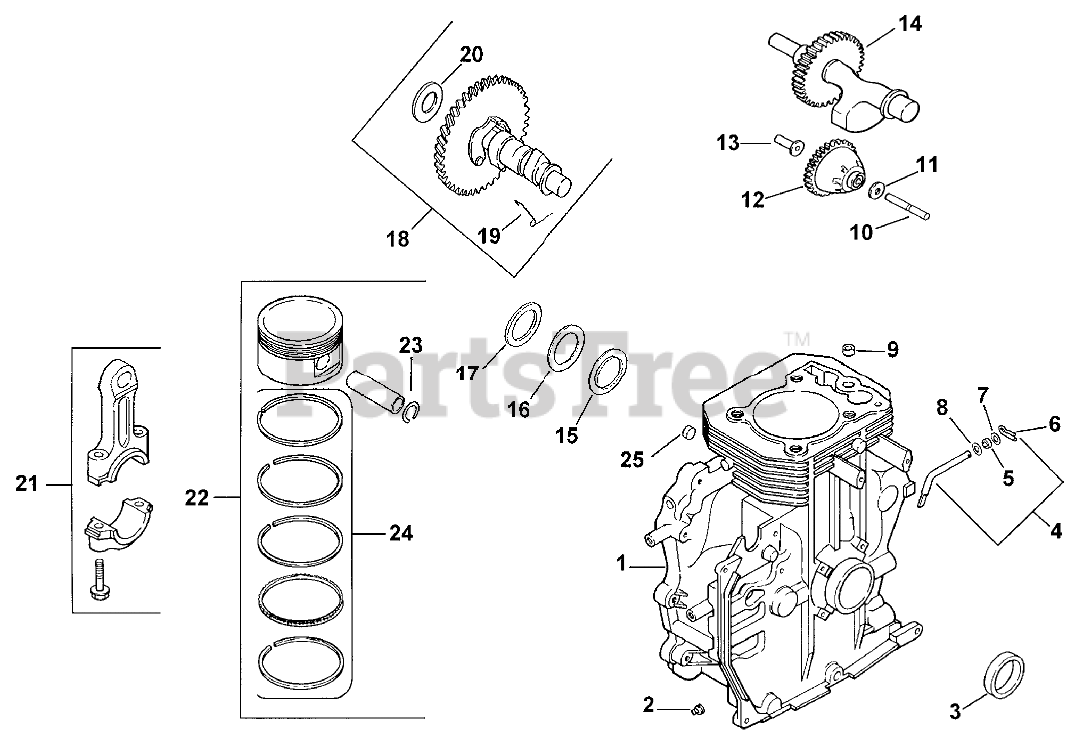

73448 (314-8) - Toro Garden Tractor (SN: 089000001 - 089000499) (1998) CRANKCASE Parts Diagram

Garden Tractor

CRANKCASE Parts Diagram

  • Title

1

Short Block

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$

$

Not available

2

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$2.49

$

In Stock, only 3 left!

0

3

1203203

Seal-Crankshaft

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$

$

Not available

4

1275564

Kit, governor cross shaft (Includes #6)

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$

$

Not available

5

1203201

Seal-Cross Shaft

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$

$

Not available

6

1215405

Clip-Hitch Pin

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$

$

Not available

7

Kohler X-25-102

Washer
(Superseded to X-25-102-S)

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$2.49

$

In Stock, Qty 5

0

8

Kohler M-0631015

Washer, plain 6 mm
(Superseded to M-631015)

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$2.49

$

In Stock, Qty 7

0

9

1238017

Dowel-Locating

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$

$

Not available

10

Kohler 12 144 02

Shaft-Gear, Governor
(Superseded to 12 144 02-S)

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$4.49

$

In Stock, Qty 8

0

11

Kohler M-0631005

Washer
(Superseded to M-631005)

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$2.49

$

Usually ships in 2-5 days

0

12

1204305

Gear, governor

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$

$

Not available

13

Kohler 12 380 01

Pin-Governor
(Superseded to 12 380 01-S)

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$3.49

$

In Stock, Qty 10

0

14

1214426

Shaft, balance

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$

$

Not available

15

2403008

Bearing, thrust

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$

$

Not available

16

5211404

Washer, thrust

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$

$

Not available

17

2442204

Shim, thrust

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$

$

Not available

18

1275550

Kit, camshaft (Includes

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$

$

Not available

19

1208931

Spring-Actuating

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$

$

Not available

20

Kohler 12 422 08

Shim-Camshaft
(Superseded to 12 422 08-S)

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$2.49

$

In Stock, only 2 left!

0

Kohler 12 422 09

Shim-Camshaft
(Superseded to 12 422 09-S)

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 10

Shim-Camshaft
(Superseded to 12 422 10-S)

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 11

Shim-Camshaft
(Superseded to 12 422 11-S)

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 12

Shim-Camshaft
(Superseded to 12 422 12-S)

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 13

Shim-Camshaft
(Superseded to 12 422 13-S)

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 07

Shim-Camshaft
(Superseded to 12 422 07-S)

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$4.49

$

Usually ships in 2-5 days

0

21

1206705

Rod Connecting STD

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$

$

Not available

1206706

Rod Connecting .25

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$

$

Not available

22

1287401

Piston w/Ring Set (Std.)(Includes 23, 24)

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$

$

Not available

1287402

Piston w/Ring Set (.25)

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$

$

Not available

1287403

Piston w/Ring Set (.50)

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$

$

Not available

23

1201802

Retainer-Piston Pin

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$

$

Not available

24

1210801

Ring Set STD

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$

$

Not available

1210802

Ring Set .25

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$

$

Not available

1210803

Ring Set .50

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$

$

Not available

25

Kohler 52 139 09

Plug
(Superseded to 52 139 09-S)

Note: Kohler Engine CH14S 1838 Obtain Parts From Kohler

$4.99

$

In Stock, only 2 left!
