73441 (416-8) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLY Parts Diagram

Garden Tractor

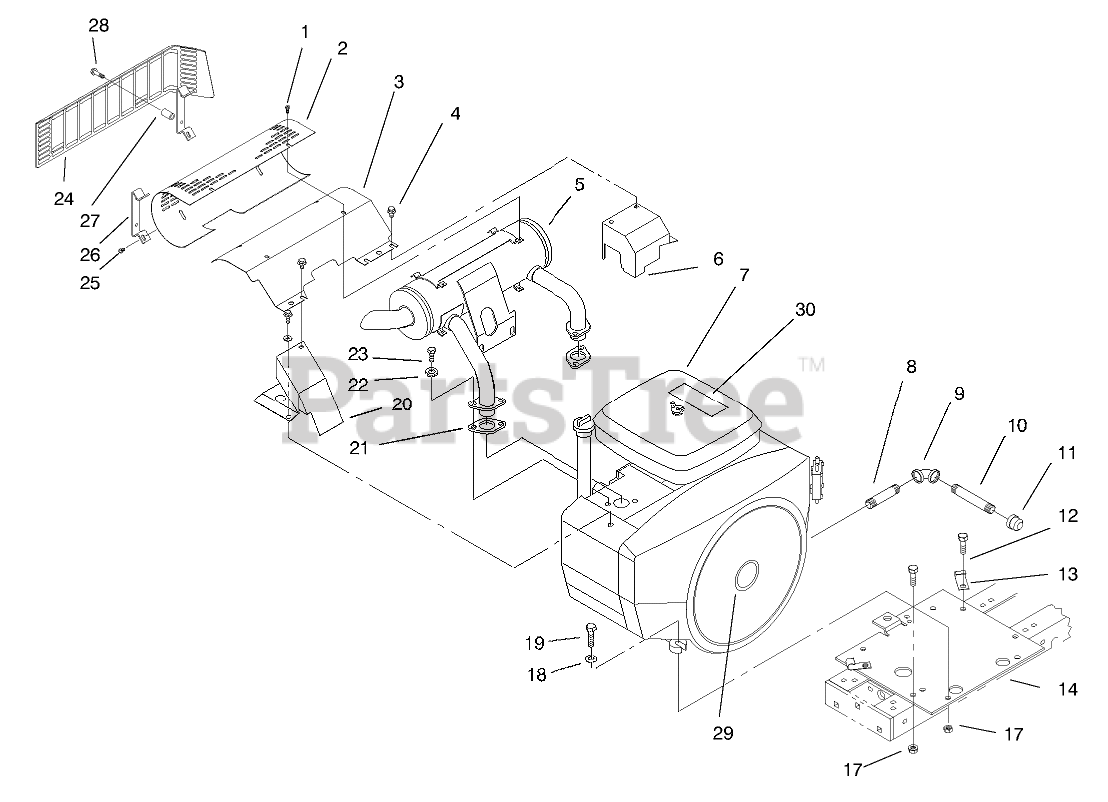

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 114888

SCW 10-24 STAINLESS

$

$

Not available

2

Toro 94-6664

SHIELD - HEAT

$

$

Not available

3

Toro 94-1803-03

Baffle-Deflector
(Superseded to 94-1803)

$

$

Not available

4

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

5

Toro 116471

MUFFLER-EXHAUST

$1452.99

$

Usually ships in 3-6 days

0

6

Toro 114216-03

COVR-EXHAST (BLACK)

$

$

Not available

7

Toro 94-1810

Engine-Onan
(Superseded to 95-7690)

$

$

Not available

8

Toro 114636

Pipe
(Superseded to 289-45)

$23.99

$

Usually ships in 3-6 days

0

9

Toro 114764

ELBOW 3/8 90 DEG

$17.99

$

In Stock, only 1 left!

0

10

Toro 114763

PIPE-NIPPLE 3/8 X 4"

$15.99

$

In Stock, only 1 left!

0

11

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

12

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

13

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

14

Toro 116609-03

Plate-Engine
(Superseded to 11-6609)

$

$

Not available

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

18

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

19

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 114215-03

COVR-EXHAST (BLACK)

$

$

Not available

21

Toro 57-9210

GASKET

$18.99

$

In Stock, Qty 6

0

22

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

23

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

24

Toro 94-9700-03

SHIELD - HEAT (BLACK)

$

$

Not available

25

Toro 32144-28

Screw-Phcr

$

$

Currently unavailable

26

Toro 93-9287-03

Bar-Guard

$

$

Currently unavailable

27

Toro 94-9701

SPACER

$

$

Not available

28

Toro 32144-110

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

29

Toro 118530

NAME-PLATE TORO LOGO

$16.99

$

Usually ships in 3-6 days

0

30

Toro 118540

DECAL-PWR PLUS 16 PL

$

$

Not available
