73441 (416-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) PTO CLUTCH LINKAGE Parts Diagram

Garden Tractor

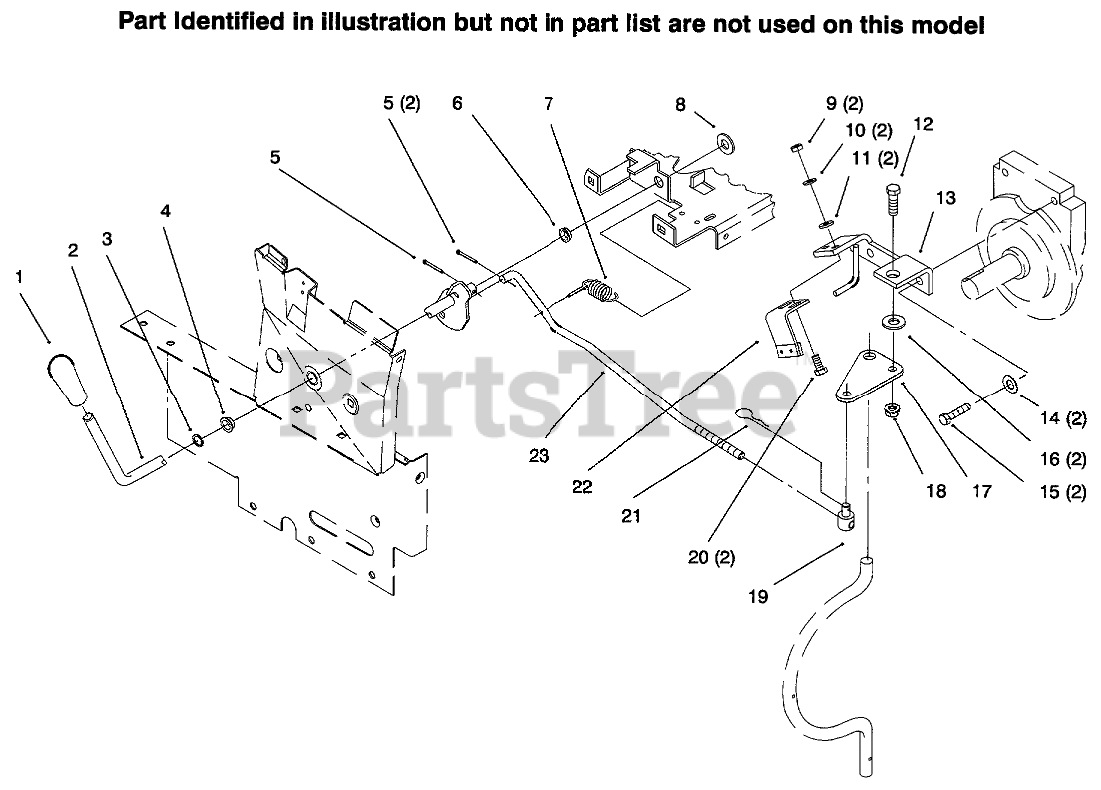

PTO CLUTCH LINKAGE Parts Diagram

  • Title

1

Toro 94-3727

KNOB

$

$

Not available

2

Toro 94-3701

PTO CLUTCH LEVER ASM

$78.99

$

Usually ships in 3-6 days

0

3

Toro 32151-11

RING-EXT GRIP

$11.99

$

In Stock, Qty 5

0

4

Toro 5666

BUSHING-NYLINER

$6.49

$

In Stock, only 4 left!

0

5

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

6

Toro 5983

NYLINER BUSHING

$6.99

$

In Stock, Qty 16

0

7

Toro 103125

SPRING

$9.99

$

In Stock, only 3 left!

0

8

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

9

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

10

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 113853

BRACKET WA ENG. B

$50.99

$

Usually ships in 3-6 days

0

14

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

15

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

15

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Toro 104859

SPACER-LIFT LINK

$51.99

$

Usually ships in 3-6 days

0

17

Toro 110669

PLATE

$29.99

$

Usually ships in 3-6 days

0

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

19

Toro 110656

TRUNNION
(Superseded to 101161)

$

$

Not available

20

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

21

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

22

Toro 110665

ASM-Bracket
(Superseded to 94-6652)

$45.99

$

In Stock, only 2 left!

0

22

Toro 94-6652

BRAKE ASM

$45.99

$

In Stock, only 2 left!

0

23

Toro 111052

ROD-PTO CLUTCH

$82.99

$

Usually ships in 3-6 days

0
