73440 (416-8) - Toro Garden Tractor (SN: 059000001 - 059000222) (1995) INTAKE MANIFOLD Parts Diagram

Garden Tractor

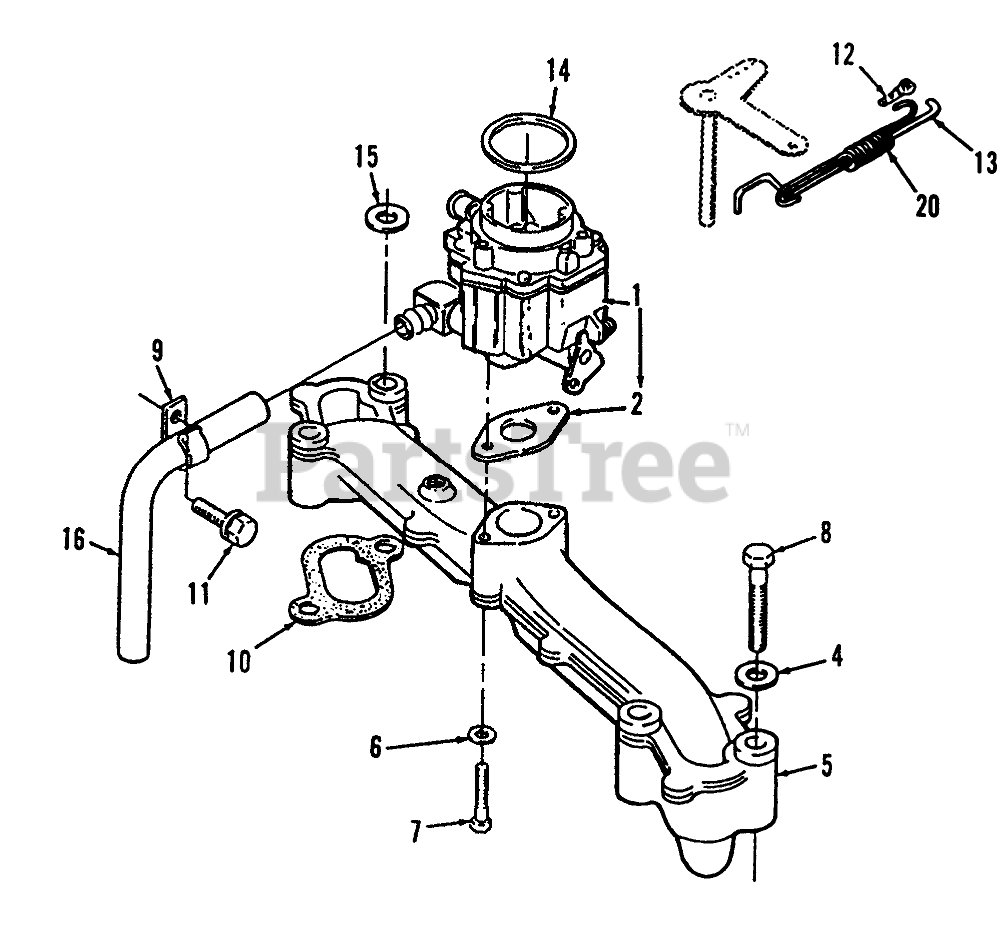

INTAKE MANIFOLD Parts Diagram

  • Title
1

Toro NN10504

Carburetor (Incl.Mounting Gasket,Elbow,&"O"Ring)

$

$

Not available

2

Toro 72-0850

Gasket

$

$

Not available

4

Toro 82-1350

WASHER-FLAT

$

$

Not available

5

Toro 92-0918

MANIFOLD

$

$

Not available

6

Toro 82-1410

Bolt
(Superseded to NN10545)

$

$

Not available

7

Toro 82-1410

Bolt
(Superseded to NN10545)

$

$

Not available

8

$

$

Not available

9

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

10

Toro 71-5980

GASKET

$14.99

$

In Stock, only 3 left!

0

11

Toro 82-1450

Screw
(Superseded to 71-6240)

$

$

Not available

12

$5.49

$

In Stock, only 1 left!

0

13

Toro 92-0919

GOVERNOR CONTROL ROD

$

$

Not available

14

$

$

Not available

15

Toro NN10362

FLAT WASHER

$

$

Not available

16

Toro NN10858

FIXED-JET

$

$

Not available

20

Toro NN10877

Spring-Governor Rod
(Superseded to NN10928)

$

$

Not available
