73440 (416-8) - Toro Garden Tractor (SN: 049000001 - 049999999) (1994) DRIVE BELT AND PULLEYS Parts Diagram

Garden Tractor

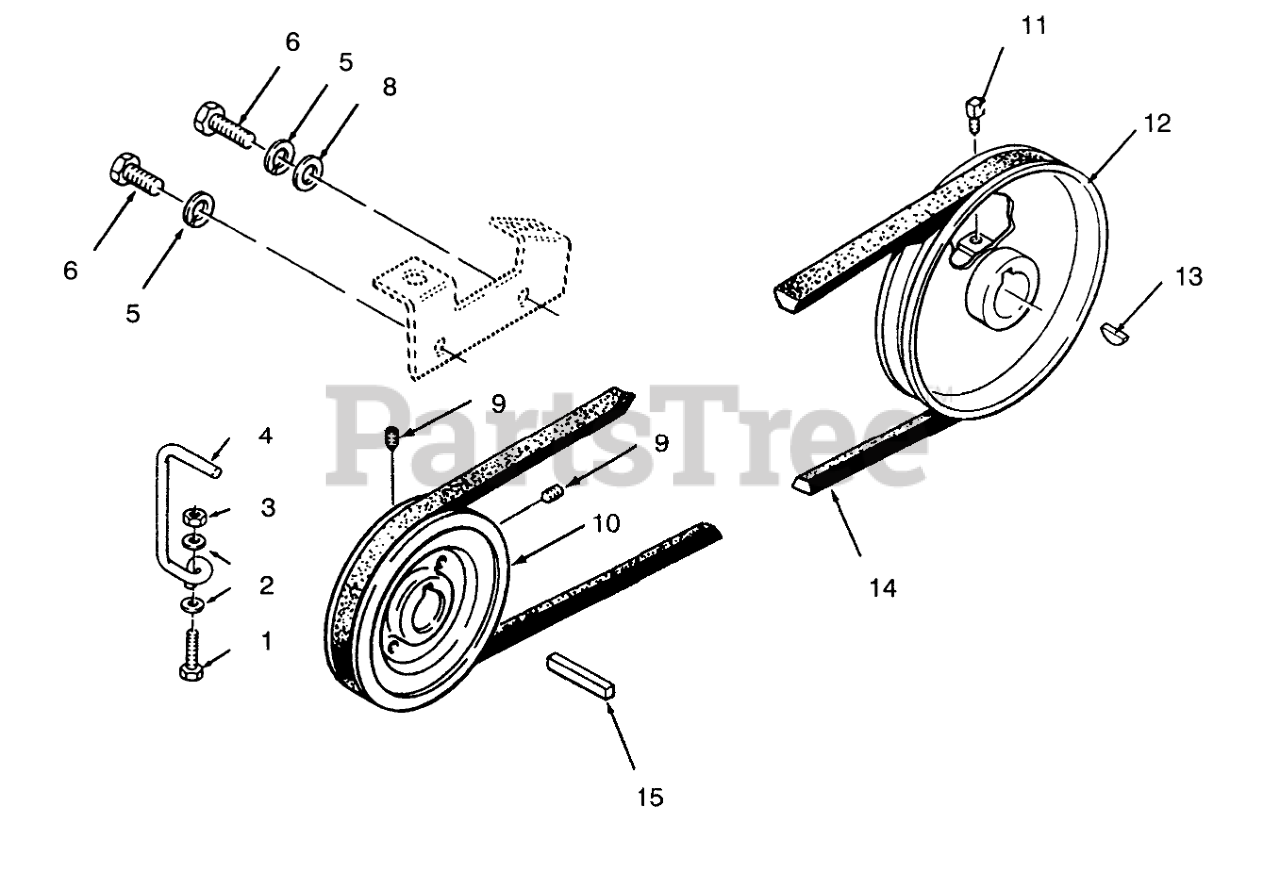

DRIVE BELT AND PULLEYS Parts Diagram

  • Title
1

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

2

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 120320

GUIDE-BELT BOTTOM

$

$

Not available

5

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

6

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

8

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

9

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

10

Toro 7466

PULLEY

$184.99

$

Usually ships in 3-6 days

0

11

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

12

Toro 106165

PULLEY-TRANSMISSION

$148.99

$

Usually ships in 3-6 days

0

13

Toro 937221

KEY-HI PRO
(Superseded to 3257-17)

$6.49

$

Usually ships in 3-6 days

0

14

Toro 107939

Belt-Drive
(Superseded to 93-9809)

$69.99

$

In Stock, only 1 left!

0

15

$2.49

$

In Stock, only 2 left!

0
