73440 (416-8) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) HOOD ASSEMBLY Parts Diagram

Garden Tractor

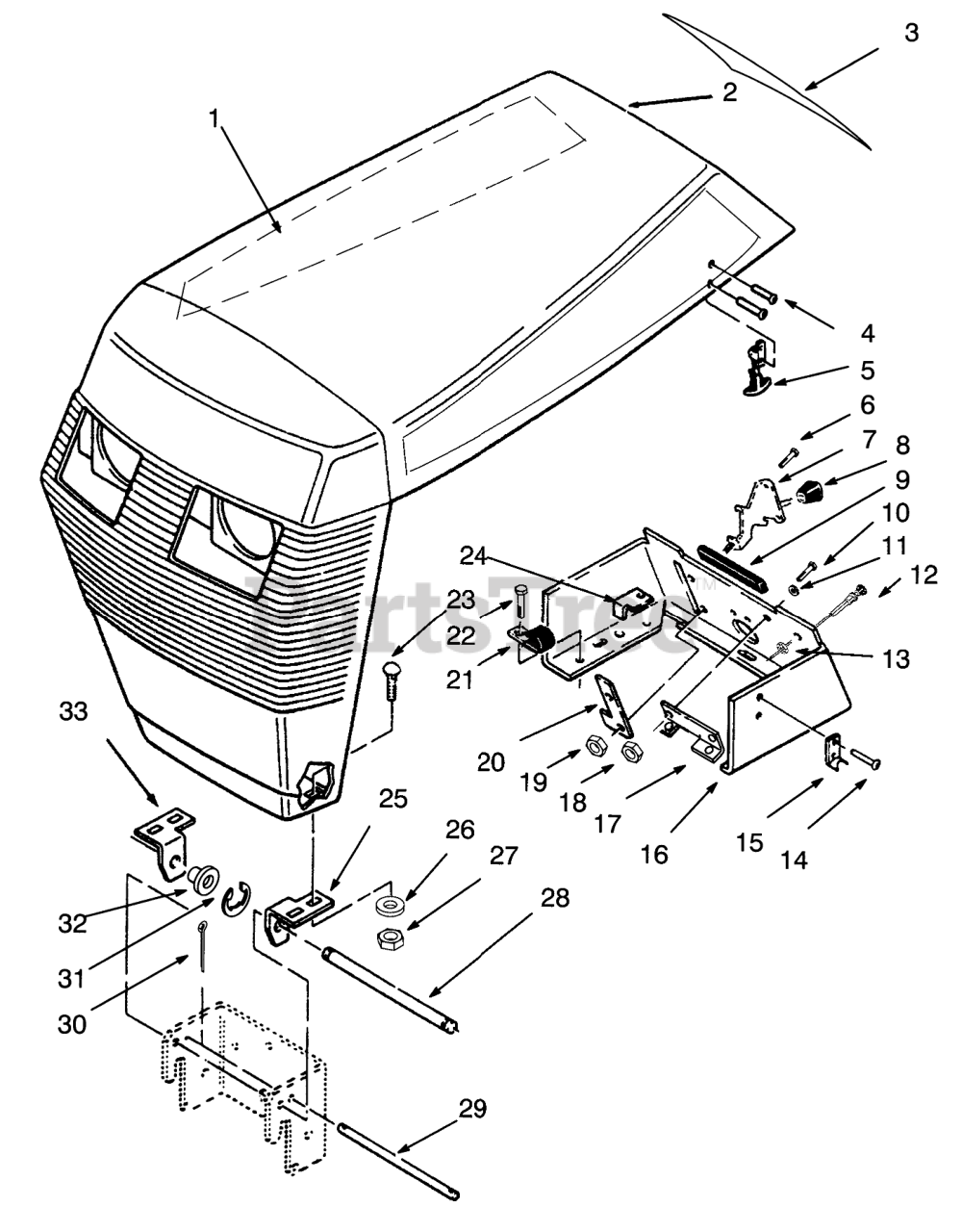

HOOD ASSEMBLY Parts Diagram

  • Title
1

Toro 79-4640

DECAL-HOOD 416-8 R H

$

$

Not available

Toro 79-4650

DECAL-HOOD 416-8 L H

Note: Not illustrated

$

$

Not available

2

Toro 88-2782

Hood (Incl. Ref. #3)

$

$

Not available

3

Toro 88-0020

Decal-Danger
(Superseded to 98-0750)

$31.99

$

Usually ships in 3-6 days

0

4

Toro 117432

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

5

Toro 117344

Handle Assembly (Incl. Ref. #15)

$36.99

$

Usually ships in 3-6 days

0

6

Toro 9107922

SCRW-PHC

$10.99

$

Usually ships in 3-6 days

0

7

Toro 115392

CONTROL-THROTTLE

$112.99

$

In Stock, only 3 left!

0

8

Toro 116454

KNOB-CONTROL
(Superseded to 66-0120)

$5.99

$

In Stock, only 2 left!

0

9

Toro 111757

EDGING-CONSOLE

$11.99

$

In Stock, only 2 left!

0

10

Toro 9107622

SCREW-PAN

$1.49

$

Usually ships in 3-6 days

0

11

Toro 9201504

Washer-Lock

$

$

Currently unavailable

12

Toro 114951

CONTROL-CHOKE

$118.99

$

Usually ships in 3-6 days

0

13

Toro 109530

NUT-HEX PALNUT

$1.49

$

In Stock, only 4 left!

0

14

Toro 117431

POPRIVET 1/8X 1/8 BK

$

$

Not available

15

Toro 117343

KEEPER-LATCH

$4.99

$

In Stock, only 2 left!

0

16

Toro 111271

Console
(Superseded to 111271-03)

$

$

Not available

17

Toro 112506

BRACKET

$9.49

$

Usually ships in 3-6 days

0

18

Toro 9159604

Nut
(Superseded to 3217-29)

$0.99

$

Usually ships in 3-6 days

0

19

Toro 9157404

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

20

Toro 120590

Washer
(Superseded to 120590-03)

$

$

Not available

21

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

22

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

23

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

24

Toro 112415

STOP-PTO

$21.99

$

In Stock, only 1 left!

0

25

Toro 116747

BRACKET-GRILL, LH

$12.99

$

In Stock, Qty 6

0

26

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

28

Toro 116745

ROD-GRILL PIVOT

$16.99

$

In Stock, only 2 left!

0

29

Toro 101850

ROD-HOOD STOP

$21.99

$

Usually ships in 3-6 days

0

30

Toro 9320004

Pin-Cotter
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

31

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

32

Toro 5979

BUSHING-NYLINER

$3.49

$

In Stock, Qty 20+

0

33

Toro 116746

BRACKET-GRILL, R H

$12.99

$

In Stock, Qty 11

0
