73429 (312-8) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) FENDER, SEAT & TAIL LIGHTS/REFLECTORS ASSEMBLY Parts Diagram

Garden Tractor

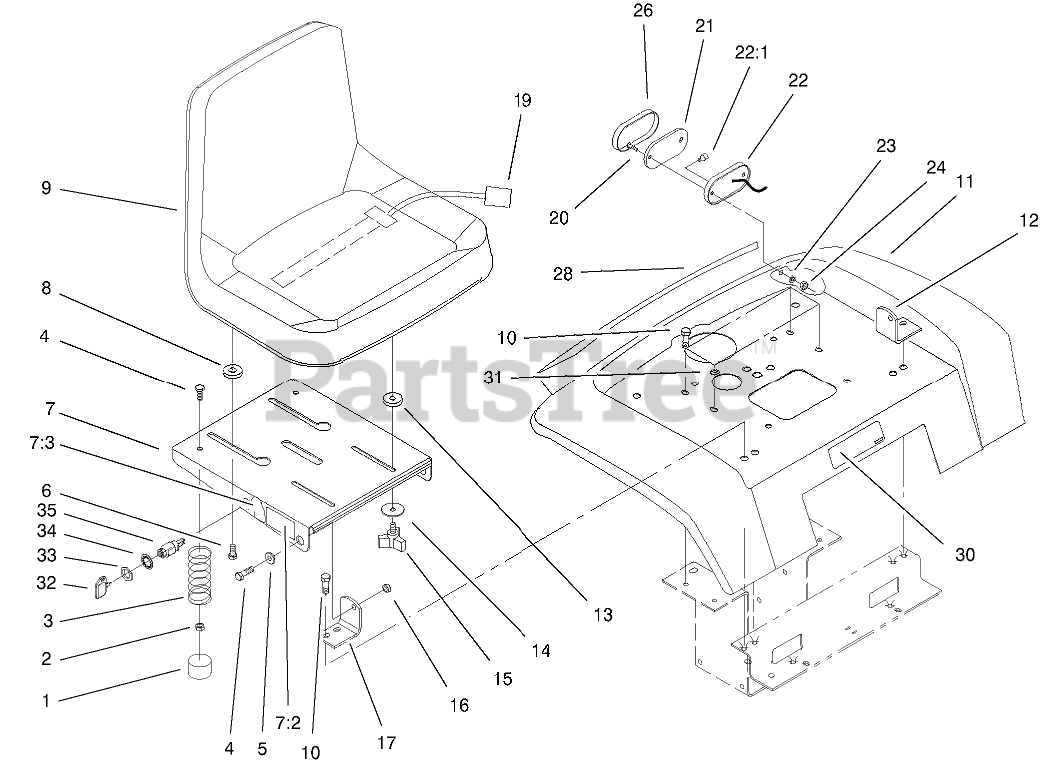

FENDER, SEAT & TAIL LIGHTS/REFLECTORS ASSEMBLY Parts Diagram

  • Title
1

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, Qty 13

0

2

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 11

0

3

Toro 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 10

0

4

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

6

Toro 92-6986

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

7

Toro 99-8031

SUPPORT-SEAT

$107.99

$

Usually ships in 3-6 days

0

7:2

Toro 99-2985

DECAL-DANGER

$

$

Not available

7:3

Toro 99-5339

DECAL

$

$

Not available

8

Toro 92-6750

SPACER-NYLON

$16.99

$

Usually ships in 3-6 days

0

9

Toro 92-6511

SEAT-V-511

$

$

Not available

10

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

11

$

$

Not available

12

Toro 79-0970-03

BRACKET-PIVOT, LH

$

$

Not available

13

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0

14

Toro 94-2869

WASHER

$1.99

$

In Stock, Qty 5

0

15

$20.99

$

In Stock, Qty 5

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 79-0950-03

BRACKET-PIVOT, RH

$

$

Not available

19

Toro 38-1420

SWITCH-SEAT

$

$

Not available

20

Toro 3250-31

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

21

Toro 108547

Reflector (only on: 73429)
(Superseded to 106557)

$

$

Not available

22

Toro 105202

Base-Taillight (only on: 73449)

$

$

Not available

22:1

Toro 109045

Bulb (only on: 73449)

$

$

Not available

23

Toro 3254-1

Washer-Lock/Int (only on: 73449)

$0.99

$

Usually ships in 3-6 days

0

24

Toro 3296-27

NUT-LOCK, NI

$1.49

$

In Stock, Qty 10

0

26

Toro 112564

Lens-Tail Light (only on: 73449)

$9.99

$

In Stock, Qty 5

0

28

Toro 92-9827

DECAL - REAR FENDER
(Superseded to 106-5846)

$32.99

$

Usually ships in 3-6 days

0

30

Toro 76-1340

DECAL - USA

$16.99

$

In Stock, only 1 left!

0

31

Toro 3255-8

Washer-Lock/Ext (only on: 73449)

$0.99

$

In Stock, Qty 5

0

32

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, Qty 20+

0

33

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

34

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

35

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, Qty 7

0
