73429 (312-8) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) CYLINDER HEAD/VALVE & BREATHER (MODEL 73449 ONLY) Parts Diagram

Garden Tractor

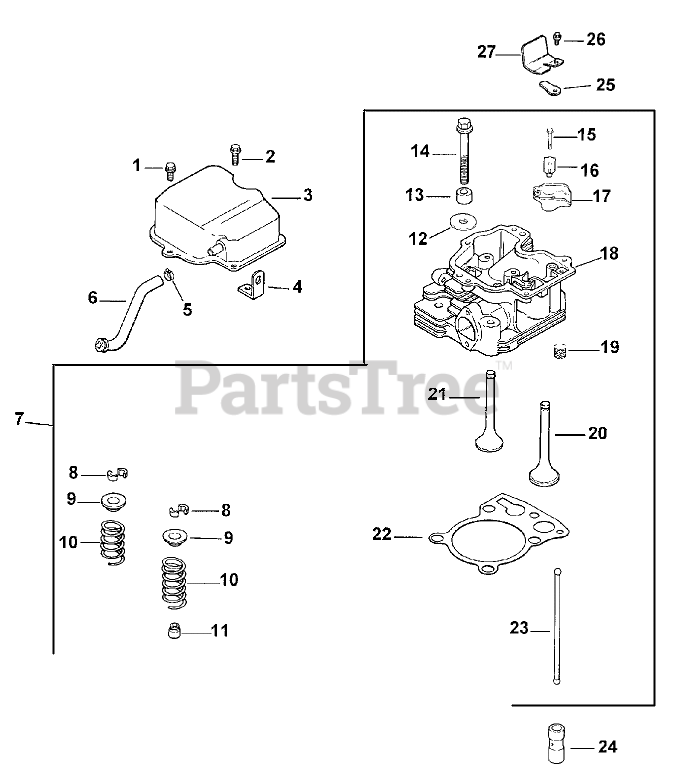

CYLINDER HEAD/VALVE & BREATHER (MODEL 73449 ONLY) Parts Diagram

  • Title

1

Kohler M-0645020

Screw
(Superseded to M-645020)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$2.49

$

In Stock, only 1 left!

0

2

Kohler M-0645025

Screw
(Superseded to M-645025)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$2.49

$

In Stock, only 2 left!

0

3

1209607

Cover-Valve w/Nipple

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

4

Kohler 12 445 05

Strap-Lifting
(Superseded to 25 445 02-S)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$2.99

$

In Stock, only 1 left!

0

5

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$4.99

$

In Stock, only 3 left!

0

6

1232609

Hose, breather

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

7

1204101

Kit, cylinder head (Includes 8-23,

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

1204102

Gasket-Air Cleaner

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

1204103

Gasket-Exhaust

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

1275581

gasket)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

8

Kohler 12 755 03

Retainer Kit
(Superseded to 12 755 03-S)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$5.99

$

In Stock, Qty 8

0

9

Kohler 12 173 01

Cap-Spring, Valve
(Superseded to 25 173 28-S)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$8.49

$

In Stock, only 3 left!

0

10

1208901

Spring-Valve

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

11

Kohler 24 032 05

Seal-Stem, Valve
(Superseded to 24 032 05-S)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$11.99

$

In Stock, Qty 20+

0

12

1246805

Washer

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

13

1211213

Spacer-Head Bolt

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

14

1208615

Screw M10x1.5x80

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

15

Kohler M-0640034

Screw

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

16

1259903

Pivot-Rocker Arm

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

17

Kohler 25 186 01

Arm-Rocker
(Superseded to 25 186 01-S)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$12.99

$

In Stock, only 1 left!

0

18

1231819

Head-Cylinder

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

19

Kohler X-75-23

Plug
(Superseded to X-75-23-S)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$3.49

$

In Stock, only 2 left!

0

20

1201701

Valve-Intake STD

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

21

1201601

Valve-Exhaust STD

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

22

1204108

Gasket-Cylinder Head

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

23

1241101

Rod-Push

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

24

1235102

Lifter-Valve

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

25

1240202

Reed-Breather

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

26

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$4.49

$

In Stock, only 3 left!

0

27

1201803

Retainer, breather reed

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

1201702

Valve-Intake .25

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

1201702

Valve-Intake .25

Note: Not illustrated

$

$

Not available

1201602

Valve-Exhaust .25

Note: Not illustrated

$

$

Not available

1201602

Valve-Exhaust .25

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available
