73429 (312-8) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) IGNITION/ELECTRICAL (MODEL 73449 ONLY) Parts Diagram

Garden Tractor

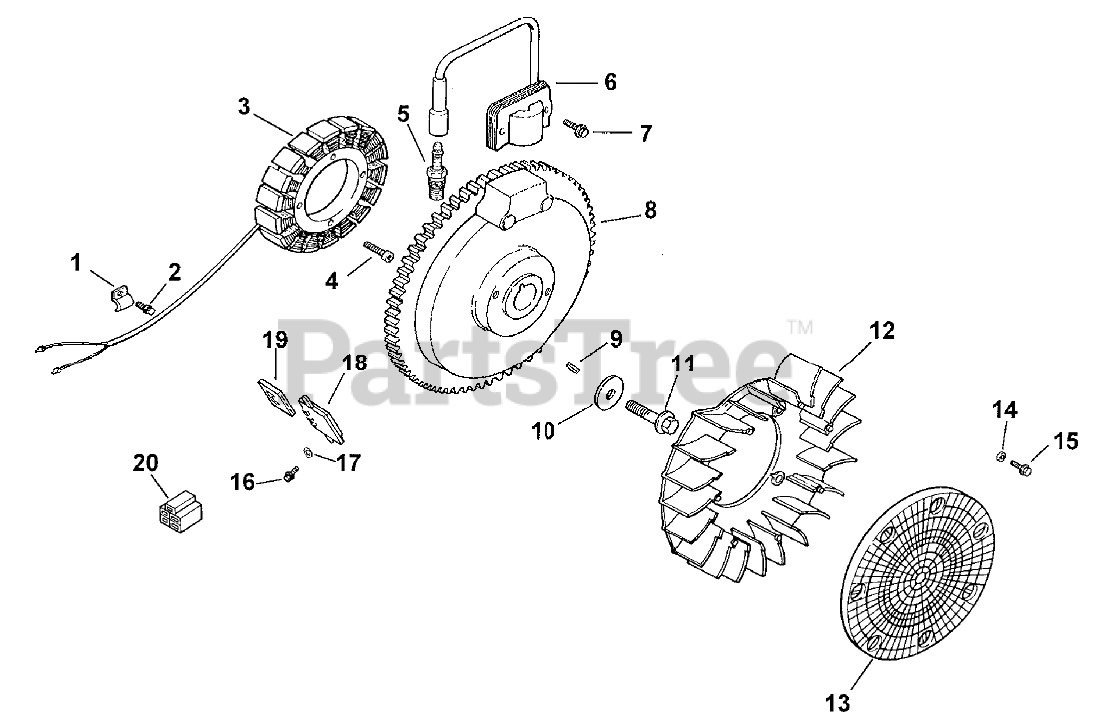

IGNITION/ELECTRICAL (MODEL 73449 ONLY) Parts Diagram

  • Title

1

Kohler X-728-1

Clip
(Superseded to X-728-1-S)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$2.49

$

Usually ships in 2-5 days

0

2

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$4.49

$

In Stock, only 2 left!

0

3

Kohler 24 126 71

Kit, 15 amp stator (Includes 54 755 09 Bracket).
(Superseded to 24 126 71-S)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$15.99

$

Usually ships in 2-5 days

0

4

Kohler M-0548025

Screw
(Superseded to M-548025)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$2.49

$

In Stock, only 2 left!

0

5

Kohler 12 132 02

Plug-Spark
(Superseded to 12 132 02-S)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$3.49

$

In Stock, Qty 20+

0

6

1258404

Module, ignition

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

7

Kohler M-0545020

Screw

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

8

1202515

Flywheel

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

9

Kohler X-42-15

Key
(Superseded to X-42-15-S)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$2.99

$

In Stock, Qty 7

0

10

Kohler 12 468 03

Washer
(Superseded to 25 468 09-S)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$6.49

$

In Stock, only 2 left!

0

11

Kohler 12 086 14

Screw
(Superseded to 25 086 361-S)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$3.99

$

In Stock, Qty 12

0

12

1215703

Fan

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

13

Kohler 24 162 03

Screen-Grass
(Superseded to 24 162 03-S)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

14

1211201

Spacer

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

15

Kohler M-0639016

Screw
(Superseded to M-639016)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$2.49

$

In Stock, Qty 6

0

16

Kohler M-0639016

Screw
(Superseded to M-639016)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$2.49

$

In Stock, Qty 6

0

17

Kohler X-22-11

Washer
(Superseded to X-22-11-S)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$2.49

$

In Stock, only 3 left!

0

18

4140309

Rectifier-regulator

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

19

Kohler 236602

Connector
(Superseded to 236602-S)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$24.99

$

In Stock, only 1 left!

0

20

4815501

Connector

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

20

4815501

Connector

Note: Not illustrated

$

$

Not available

2551829

Lead-Black

Note: Not illustrated

$

$

Not available

2551829

Lead-Black

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

1251801

Lead-White

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

Kohler 2551805

Lead-Black

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

Kohler 24 126 71

Bracket-Wire, Stator
(Superseded to 24 126 71-S)

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$15.99

$

Usually ships in 2-5 days

0
