73428 (312-8) - Toro Garden Tractor (SN: 089000500 - 089099999) (1998) OIL PAN/LUBRICATION Parts Diagram

Garden Tractor

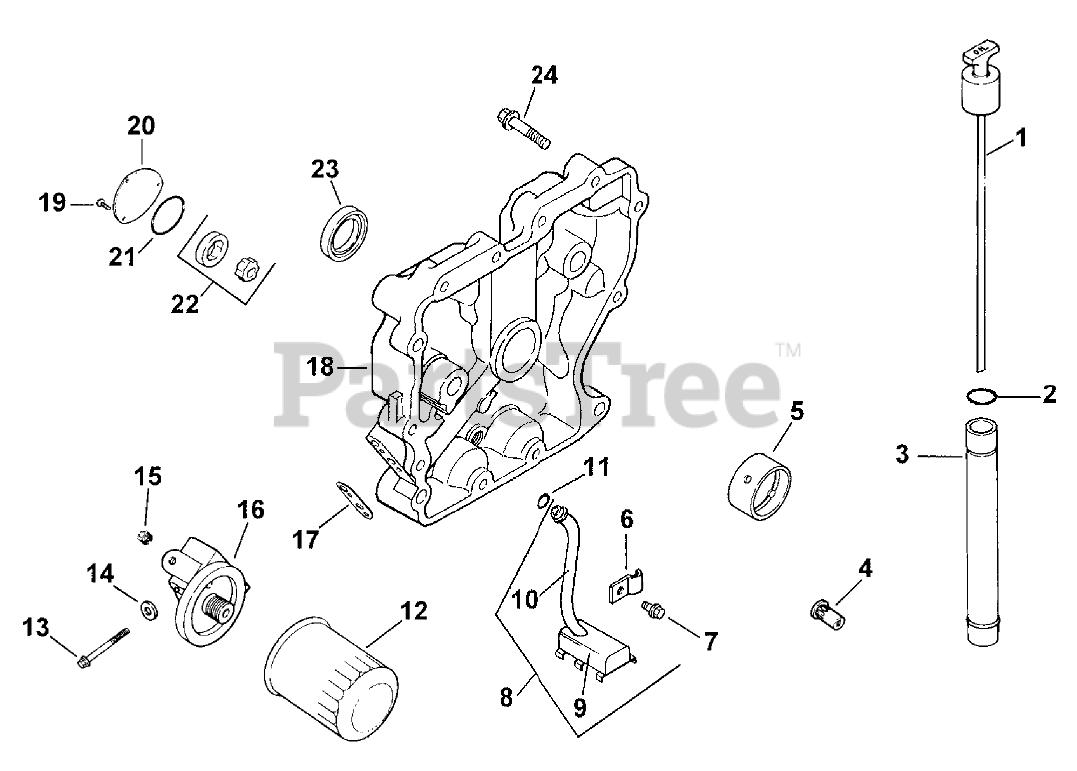

OIL PAN/LUBRICATION Parts Diagram

  • Title

1

4703826

Dipstick

$

$

Not available

2

Kohler 41 153 01

O-Ring
(Superseded to 41 153 01-S)

$5.49

$

In Stock, only 1 left!

0

3

2412311

Tube, oil fill

$

$

Not available

4

2546209

Valve-Oil Pressure

$

$

Not available

5

1203005

Bearing, crankshaft

$

$

Not available

6

5215401

Clip

$

$

Not available

7

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

$2.49

$

In Stock, Qty 15

0

8

Kohler 12 755 73

Kit oil pick-up (Includes 9,10)
(Superseded to 12 755 73-S)

$88.99

$

Usually ships in 2-5 days

0

9

2538101

Pick-up, oil screen

$

$

Not available

10

1212321

Tubing, oil pick-up

$

$

Not available

11

1215304

O-Ring, oil pick-up

$

$

Not available

12

5205002

Filter-Oil

$

$

Not available

13

Toro M-0651060

Screw, hex. flange M6x1.0x60

$

$

Currently unavailable

14

Kohler X-25-12

Washer
(Superseded to X-25-12-S)

$3.49

$

In Stock, only 2 left!

0

15

Kohler X-75-23

Plug
(Superseded to X-75-23-S)

$3.49

$

In Stock, only 2 left!

0

16

1202901

Adapter, oil filter

$

$

Not available

17

1204107

Gasket, oil filter adapter

$

$

Not available

18

Toro 1200936

Plate, closure Asm (Includes 4,5,19-22)

$

$

Currently unavailable

19

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

$2.49

$

In Stock, Qty 15

0

20

1209621

Cover, oil pump

$

$

Not available

21

1215305

O-Ring, oil pump cover

$

$

Not available

22

1239301

Pump-Oil

$

$

Not available

23

1203203

Seal-Crankshaft

$

$

Not available

24

Kohler 24 086 16

Screw
(Superseded to 24 086 17-S)

$2.49

$

In Stock, Qty 5

0

24

Kohler 24 086 17

Screw
(Superseded to 24 086 17-S)

$2.49

$

In Stock, Qty 5

0
