73423 (416-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) PC BOARD & TEST SWITCH Parts Diagram

Garden Tractor

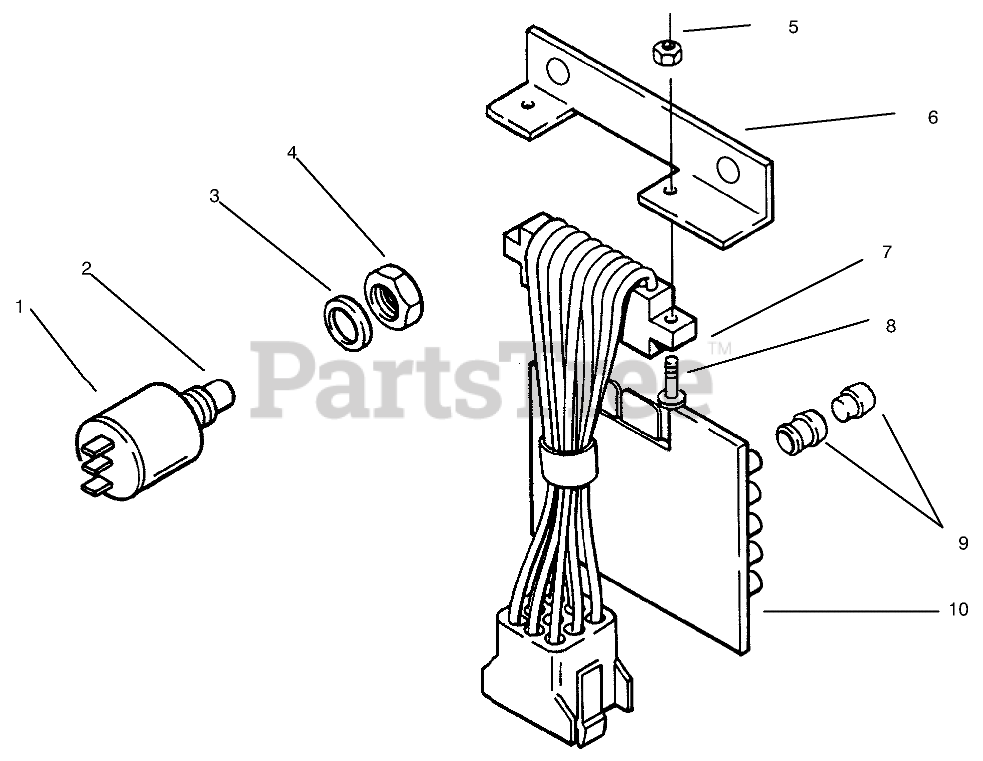

PC BOARD & TEST SWITCH Parts Diagram

  • Title
1

Toro 116796

SWITCH-PUSH BUTTON

$99.99

$

Usually ships in 3-6 days

0

2

Toro 117217

Switch-Button (Incl. Ref. #2-4)

$

$

Not available

3

Toro 111767

Washer
(Superseded to 3254-8)

$0.99

$

Usually ships in 3-6 days

0

4

Toro 111359

NUT F/W 116796

$4.49

$

Usually ships in 3-6 days

0

5

Toro 915732

NUT HEX 4-40 ELAST
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0

6

Toro 112506

BRACKET

$9.49

$

Usually ships in 3-6 days

0

7

Toro 116723

P.C.-BOARD HARNESS

$

$

Not available

8

Toro 9107562

Screw

$

$

Currently unavailable

9

Toro 111343

ASSY LENS & BUSHING

$

$

Not available

10

Toro 114825

Board-Pc
(Superseded to 115207)

$

$

Not available
