73423 (416-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) INTAKE MANIFOLD & CARBURETOR Parts Diagram

Garden Tractor

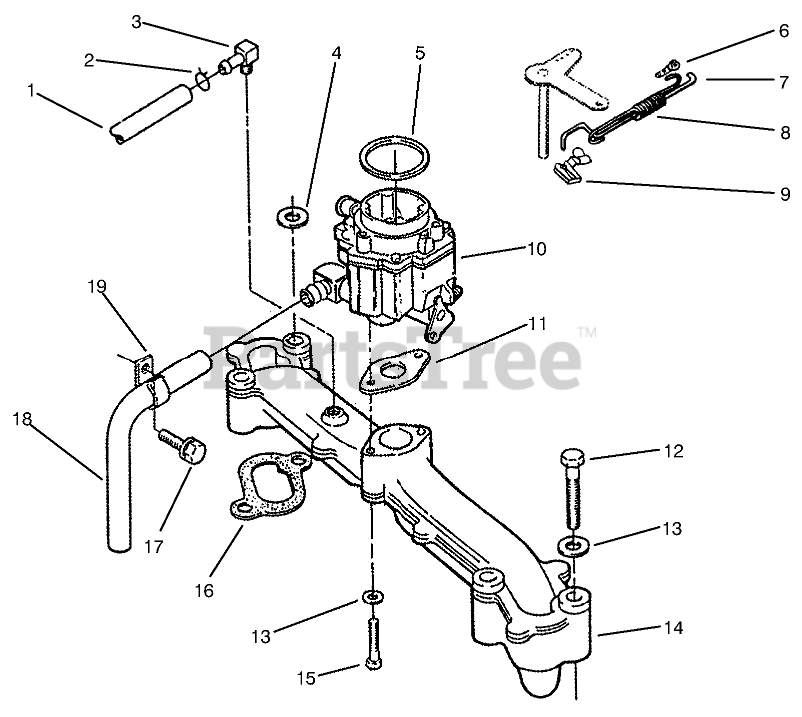

INTAKE MANIFOLD & CARBURETOR Parts Diagram

  • Title

1

Toro 82-1120

HOSE-RUBBER, BREATHER

$

$

Not available

2

Toro 82-1080

CLAMP-HOSE

$7.49

$

In Stock, only 3 left!

0

2

Toro 82-1090

CLAMP-HOSE, BREATHER

$

$

Not available

3

Toro 82-1070

FITTING-BARB

$

$

Not available

4

Toro NN10362

FLAT WASHER

$

$

Not available

5

Toro 57-9620

SEAL

$

$

Not available

6

Toro 57-9700

CLIP

$5.49

$

In Stock, only 1 left!

0

7

Toro 92-0919

GOVERNOR CONTROL ROD

$

$

Not available

8

Toro 82-1740

Spring-Governor Rod
(Superseded to NN10928)

$

$

Not available

9

Toro 94-6680

RETAINING CLIP

$

$

Not available

10

Toro 94-1841

KIT - CARBURETOR

$

$

Not available

10

Toro 94-1842

JET - HIGH ALTITUDE

$

$

Not available

10

Toro 94-1843

Kit-Repair
(Superseded to 93-1677)

$147.99

$

Usually ships in 3-6 days

0

10

Toro 94-1844

KIT-ACCELERATOR PUMP FIX

$

$

Not available

11

Toro 82-0850

GASKET-CARBURETOR

$12.99

$

In Stock, only 1 left!

0

12

Toro NN10375

HHCS

$

$

Not available

13

Toro 82-1350

WASHER-FLAT

$

$

Not available

14

Toro 71-6480

INTAKE MANIFOLD KIT

$

$

Not available

15

Toro NN10545

HEX-HEAD CAP SCREW

$

$

Not available

16

Toro 71-5980

GASKET

$14.99

$

In Stock, only 3 left!

0

17

Toro 82-1540

SCREW-HWH

$

$

Not available

18

Toro NN10306

FUEL HOSE

$

$

Not available

19

Toro 71-6220

CLIP-WIRE

$

$

Not available

Toro 94-1806

Decal-Ident

$

$

Not available

Toro 94-1843

Kit-Repair
(Superseded to 93-1677)

$147.99

$

Usually ships in 3-6 days

0

Toro 94-1844

KIT-ACCELERATOR PUMP FIX

$

$

Not available

Toro 94-1846

HARNESS - ENGINE WIRE

$

$

Not available

Toro 94-1848

JET - HIGH ALTITUDE

$

$

Not available

Toro 95-7692

HARNESS - ENGINE WIRE

$

$

Not available
