73423 (416-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) IGNITION ELECTRONICS Parts Diagram

Garden Tractor

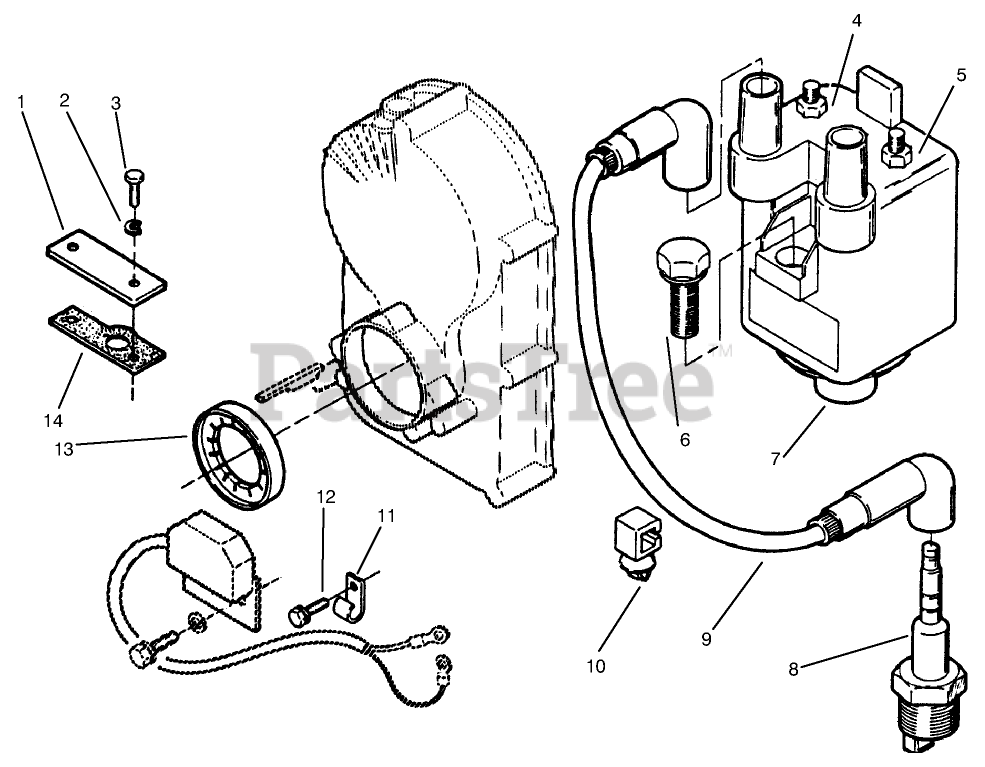

IGNITION ELECTRONICS Parts Diagram

  • Title

1

Toro 71-5990

PLATE-COVER

$

$

Not available

2

Toro 82-1340

WASHER-FLAT

$

$

Not available

3

Toro 82-1360

SCREW - CAP HEX HEAD

$

$

Not available

4

Toro 71-6440

NUT-HEX FLANGE

$

$

Not available

5

Toro 71-6430

NUT-HEX FLANGE

$

$

Not available

6

Toro 59-0970

HEX HD CAPSCREW

$

$

Not available

7

Toro 95-2844

COIL - IGNITION

$487.99

$

Usually ships in 3-6 days

0

Toro 71-6000

COIL-BATTERY IGNITION

Note: Not illustrated

$

$

Not available

8

Toro 57-9340

SPARK PLUG

$4.49

$

In Stock, only 4 left!

0

9

Toro 57-9350

CABLE KIT

$97.99

$

Usually ships in 3-6 days

0

10

Toro 71-6060

WIRE ROUTING CLIP

$

$

Not available

11

Toro 71-6220

CLIP-WIRE

$

$

Not available

12

Toro NN10545

HEX-HEAD CAP SCREW

$

$

Not available

13

Toro 71-6010

ROTOR-IGNITION

$112.99

$

Usually ships in 3-6 days

0

14

Toro 79-6490

Gasket-Plate
(Superseded to 57-9260)

$

$

Not available

Toro 98-1705

Kit-Coil Update
(Superseded to 71-6000)

Note: Not illustrated

$

$

Not available
