73423 (416-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) HOODSTAND, CONSOLE Parts Diagram

Garden Tractor

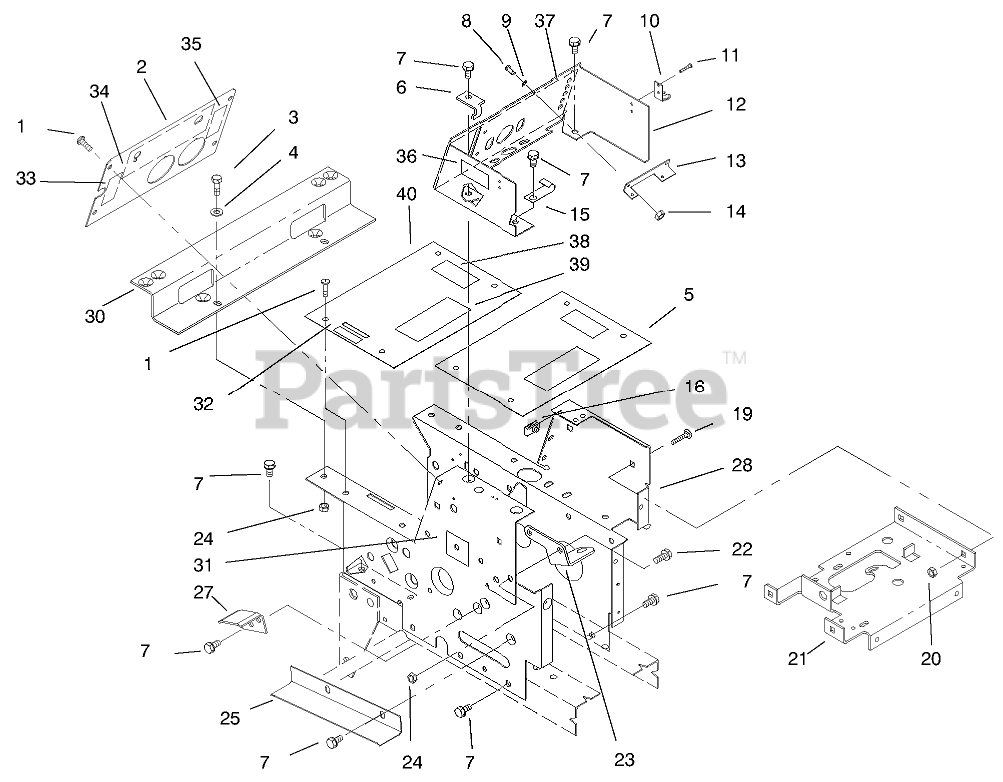

HOODSTAND, CONSOLE Parts Diagram

  • Title
1

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

2

Toro 78-5620-03

PLATE-HOODSTAND (BLACK)

$

$

Not available

3

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 116862-03

Plate-Top Hoodstand

$

$

Currently unavailable

6

Toro 112415

STOP-PTO

$21.99

$

In Stock, only 1 left!

0

7

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

8

Toro 9107622

SCREW-PAN

$1.49

$

Usually ships in 3-6 days

0

9

Toro 9201504

Washer-Lock

$

$

Currently unavailable

10

Toro 117343

KEEPER-LATCH

$4.49

$

In Stock, only 2 left!

0

11

Toro 117432

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

12

Toro 78-5610-03

Console

$

$

Currently unavailable

13

Toro 112506

BRACKET

$7.99

$

Usually ships in 3-6 days

0

14

Toro 9159604

Nut
(Superseded to 3217-29)

$0.99

$

Usually ships in 3-6 days

0

15

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

16

$2.99

$

In Stock, Qty 20+

0

19

Toro 117371

BOLT CARR. 5/16X1/2 BK

$

$

Not available

20

Toro 9151126

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

21

Toro 78-3000-03

Bracket-Battery Support

$

$

Currently unavailable

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 78-1540-03

BRKT-LR CNTROL (BLACK)

$

$

Not available

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

28

Toro 92-1525-03

Hoodstand

$

$

Currently unavailable

30

Toro 107951-03

Bracket-Fender

$

$

Currently unavailable

31

Toro 92-9832

DECAL - MODEL 416-H

$

$

Not available

33

Toro 111960

DECAL PTO CLUTCH

$14.99

$

Usually ships in 3-6 days

0

34

Toro 79-2470

DECAL-BACK PLATE

$20.99

$

Usually ships in 3-6 days

0

35

Toro 78-7300

DECAL-CHOKE

$

$

Not available

36

Toro 111926

DECAL ELECT SYSTEM

$

$

Not available

37

Toro 78-7270

DECAL-DASH

$

$

Not available

38

Toro 116445

DECAL-PARKING BRAKE

$

$

Not available

39

Toro 92-8946

DECAL-DANGER

$6.49

$

Usually ships in 3-6 days

0
