73423 (416-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) AIR CLEANER Parts Diagram

Garden Tractor

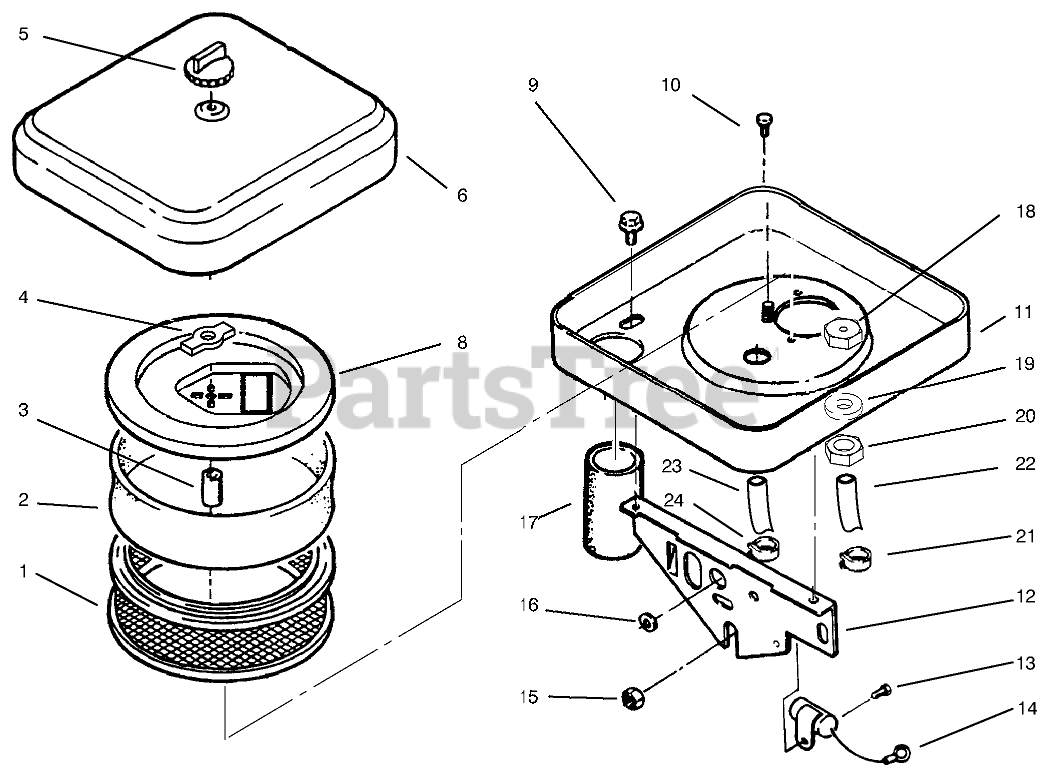

AIR CLEANER Parts Diagram

  • Title
1

Toro NN10774

AIR-CLEANER ELEMENT

$50.99

$

In Stock, only 1 left!

0

2

Toro NN10176

AIR CLEANER ELEMENT

$

$

Not available

3

Toro 79-6510

SPACER-1" LG

$

$

Not available

4

Toro 79-6520

SPACER-RUBBER

$

$

Not available

5

$

$

Not available

6

Toro 94-1840

COVER - AIR CLEANER

$182.99

$

Usually ships in 3-6 days

0

8

Toro 82-0650

ELEMENT COVER KIT

$

$

Not available

9

Toro 82-1550

SCREW-TAPPING

$

$

Not available

10

Toro 92-0915

MACHINE SCREW

$

$

Not available

11

Toro 79-6330

AIR-CLEANER HOUSING

$

$

Not available

12

Toro 79-6340

SUPPORT-AIR CLEANER

$

$

Not available

13

Toro NN10390

SCREW #10-32 X 5/8

$

$

Not available

14

Toro 59-1180

CONDENSER

$42.99

$

In Stock, only 1 left!

0

15

$

$

Not available

16

Toro 71-6140

GROMMET

$

$

Not available

17

Toro NN10187

AIR INTAKE TUBE

$

$

Not available

19

Toro NN10190

HOSE FITTING GASKET

$

$

Not available
