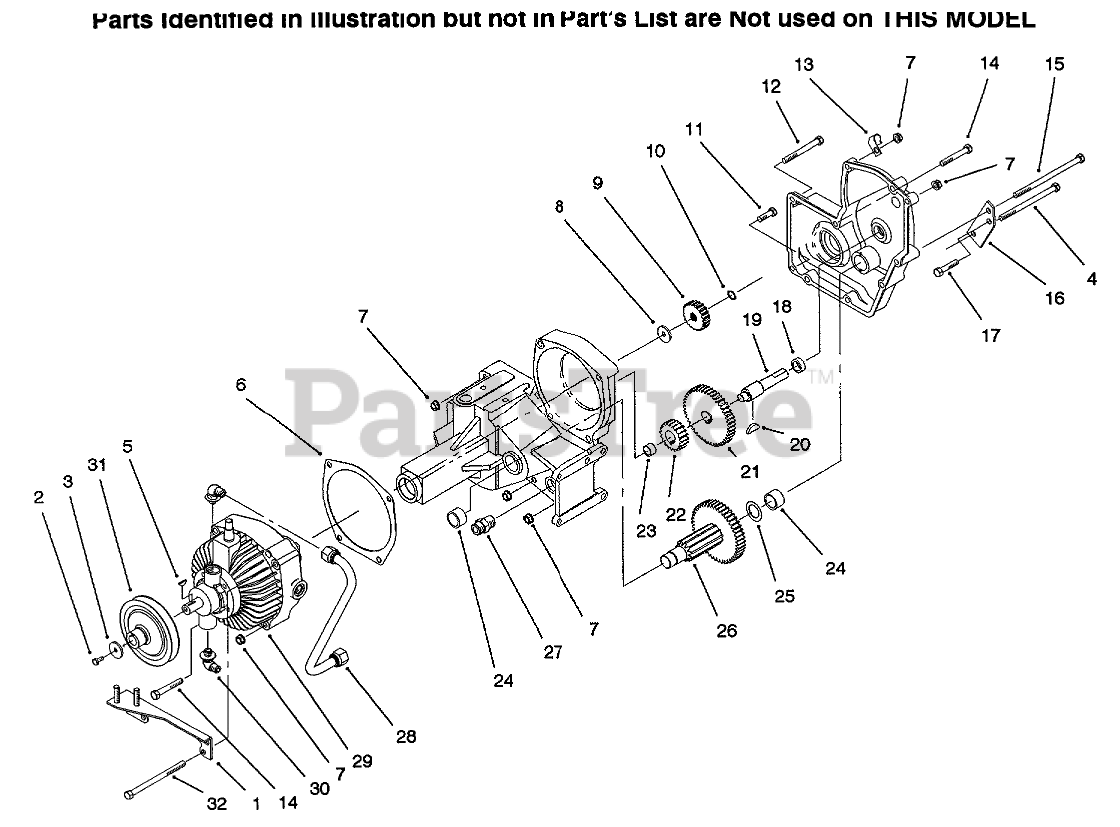

73423 (416-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) HYDROSTATIC TRANSMISSION Parts Diagram

Garden Tractor

HYDROSTATIC TRANSMISSION Parts Diagram

  • Title
1

Toro 108329

ASSY-PLATE B

$

$

Not available

1:1

Toro 108328

Plate

$

$

Currently unavailable

1:2

Toro 6718

NON SERVICE PART

$

$

Not available

2

Toro 9080026

SCREW-HEX HD CAP
(Superseded to 110-9381)

$1.99

$

In Stock, only 3 left!

0

3

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0

4

Toro 323-25

SCREW-HH

$14.99

$

Usually ships in 3-6 days

0

5

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, Qty 5

0

6

Toro 108319

GASKET

$10.99

$

In Stock, only 2 left!

0

7

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

8

Toro 108366

SPACER GEAR

$

$

Not available

9

Toro 109751

GEAR 20 TEETH DRIVE

$

$

Not available

10

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

11

$

$

Currently unavailable

12

Toro 323-15

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

13

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

14

$

$

Currently unavailable

15

Toro 323-26

SCREW-HH

$11.99

$

In Stock, only 1 left!

0

16

Toro 109367

BRACKET-BRAKEB

$

$

Not available

18

Toro 7956

Race Thrust
(Superseded to 702982)

$9.99

$

In Stock, Qty 5

0

19

Toro 109370

SHAFT GEAR

$

$

Not available

20

Toro 937099

Key
(Superseded to 937024)

$

$

Not available

21

Toro 109752

GEAR 46 TEETH

$

$

Not available

22

Toro 109742

GEAR 20 TEETH

$

$

Not available

23

Toro 1518

BEARING-NEEDLE

$31.99

$

Usually ships in 3-6 days

0

24

Toro 1532

BEARING-NEEDLE

$59.99

$

In Stock, only 4 left!

0

25

Toro 9547

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

26

Toro 109703

ASSY GEAR

$

$

Not available

26:1

Toro 101887

GEAR 46T

$

$

Not available

26:2

Toro 101625

PINION SHAFT

$

$

Not available

27

Toro 108364

FITTING-TUBE

$

$

Not available

27

Toro 108362

AXLE-REAR RH

$

$

Not available

28

Toro 111217

ASSY-TUBE SUCTION

$

$

Not available

29

Toro 92-9848

TRANSMISSION-PUMP

$

$

Not available

30

Toro 108365

ELBOW
(Superseded to 103-1802)

$23.99

$

In Stock, only 1 left!

0

31

Toro 108316

PULLEY

$

$

Not available
