73423 (416-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) HYDROSTATIC TRANSMISSION Parts Diagram

Garden Tractor

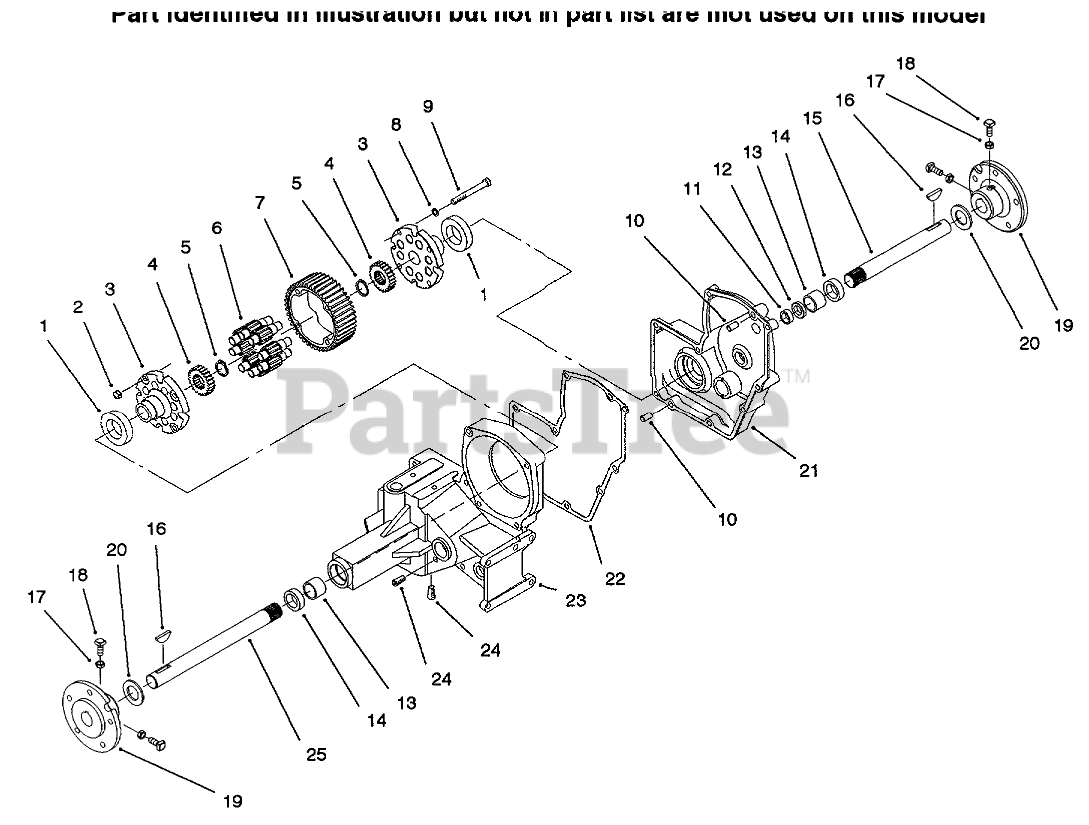

HYDROSTATIC TRANSMISSION Parts Diagram

  • Title

1

Toro 111199

BEARING-BALL

$125.99

$

In Stock, only 3 left!

0

1:1

Toro 108328

Plate

$

$

Currently unavailable

1:2

Toro 6718

NON SERVICE PART

$

$

Not available

2

Toro 108881

NUT

$6.49

$

In Stock, only 2 left!

0

3

Toro 111196

END CAP-DIFFERENTIAL

$254.99

$

In Stock, only 1 left!

0

4

Toro 101889

GEAR-AXLE DIFFERENTIAL

$

$

Not available

5

Toro 105876

RING-SNAP

$5.99

$

In Stock, only 2 left!

0

6

Toro 101623

GEAR-PINION, 11T

$116.99

$

Usually ships in 3-6 days

0

7

Toro 105061

GEAR-DIFFERENTIAL RING, 43T

$1209.99

$

Usually ships in 3-6 days

0

8

Toro 107374

WASHER

$0.99

$

In Stock, Qty 6

0

9

Toro 911423

BOLT-HEX
(Superseded to 1-800805)

$5.49

$

In Stock, only 2 left!

0

10

Toro 108363

PIN-LOCATING

$

$

Not available

11

Toro 1538

NEEDLE BEARING

$46.99

$

Usually ships in 3-6 days

0

12

Toro 108357

Seal
(Superseded to 253-44)

$29.99

$

In Stock, only 1 left!

0

13

Toro 9416

BEARING

$81.99

$

Usually ships in 3-6 days

0

14

Toro 6449

SEAL-OIL

$24.99

$

In Stock, only 1 left!

0

15

Toro 108361

AXLE-REAR LH

$

$

Not available

16

Toro 937108

KEY-WOODRUFF

$5.99

$

In Stock, only 3 left!

0

17

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

18

Toro 3243-5

SCREW-SET, SQH

$2.99

$

In Stock, Qty 13

0

19

Toro 105763

Hub Rear
(Superseded to 105763-03)

$191.99

$

In Stock, only 1 left!

0

20

Toro 106826

WASHER-THRUST

$14.99

$

In Stock, only 1 left!

0

21

Toro 111201

CASE TRANS LH

$

$

Not available

22

Toro 108312

GASKET-TRANSMISSION

$24.99

$

Usually ships in 3-6 days

0

24

Toro 281-10

PLUG

$18.99

$

Usually ships in 3-6 days

0

25

Toro 113927

CASE-TRANS RH

$1209.99

$

Usually ships in 3-6 days

0

26:1

Toro 101887

GEAR 46T

$

$

Not available

26:2

Toro 101625

PINION SHAFT

$

$

Not available

27

Toro 108362

AXLE-REAR RH

$

$

Not available
