73423 (416-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) HYDRAULIC LIFT SYSTEM Parts Diagram

Garden Tractor

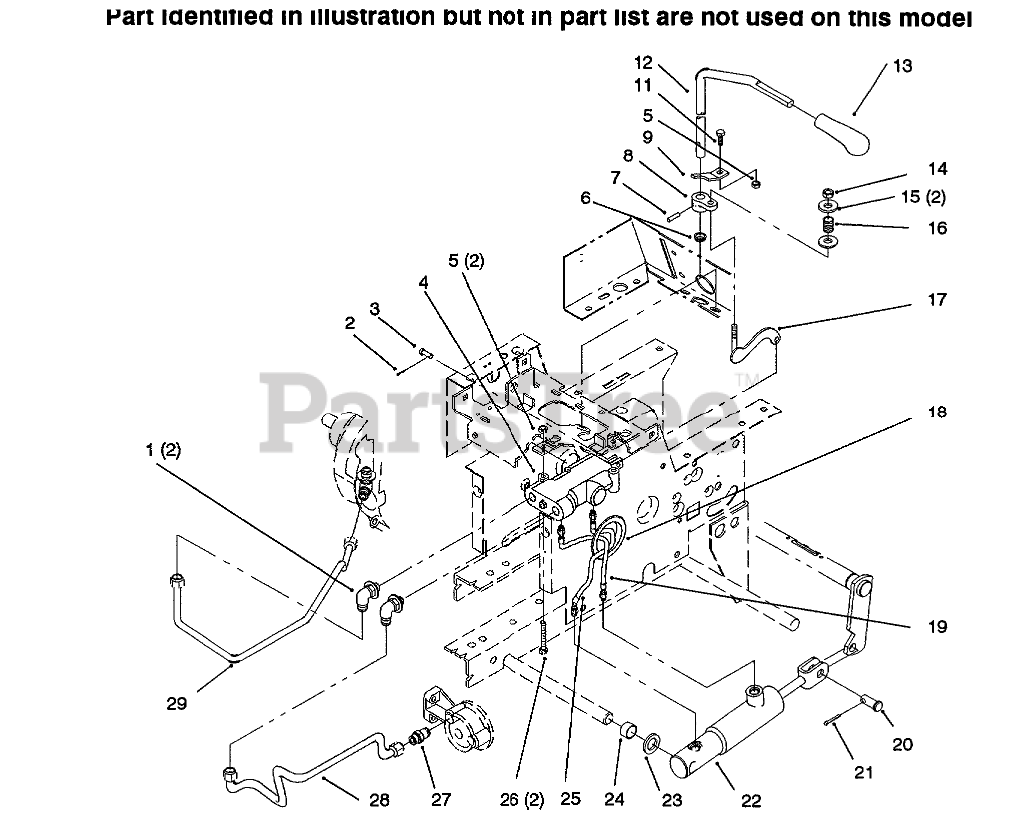

HYDRAULIC LIFT SYSTEM Parts Diagram

  • Title

1

Toro 108365

ELBOW
(Superseded to 103-1802)

$23.99

$

In Stock, only 2 left!

0

2

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

3

Toro 9321204

PIN-CLEVIS

$4.99

$

Usually ships in 3-6 days

0

4

Toro 114000

ASS'Y-VALVE

$

$

Not available

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

Toro 5983

NYLINER BUSHING

$6.99

$

In Stock, Qty 12

0

7

Toro 933198

SPIROL PIN 7/32X7/8

$1.99

$

Usually ships in 3-6 days

0

8

Toro 116302

ARM-CONTROL

$

$

Not available

9

Toro 116305

BRACKET-CONTROL R B

$7.99

$

Usually ships in 3-6 days

0

11

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 78-5670

ROD-LIFT CONTROL

$

$

Not available

13

Toro 94-3700

Knob-Lift
(Superseded to 94-6694)

$

$

Not available

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 104841

SPRING

$2.49

$

In Stock, only 2 left!

0

17

Toro 78-5640

WLDMT-LIFT BAR

$

$

Not available

18

Toro 106267

GROMMET

$

$

Not available

19

Toro 110125

Hose ASM-Hydraulic
(Superseded to 99-5373)

$188.99

$

Usually ships in 3-6 days

0

20

Toro 9329974

Pin-Clevis

$

$

Currently unavailable

21

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

22

Toro 119340

ASS'Y-CYLINDER

$

$

Not available

23

Toro 9202324

Washer

$1.99

$

In Stock, only 3 left!

0

24

Toro 101757

SPACER-OUTER

$6.49

$

In Stock, Qty 5

0

25

Toro 110124

Hose ASM-Hydraulic
(Superseded to 99-5372)

$188.99

$

Usually ships in 3-6 days

0

26

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 102628

FITTING

$

$

Not available

28

Toro 86-9290

TUBE-HYD RETURN

$

$

Not available

29

Toro 86-9280

TUBE-HYD PRESSURE

$138.99

$

Usually ships in 3-6 days

0
