73423 (416-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) GAUGES, THROTTLE Parts Diagram

Garden Tractor

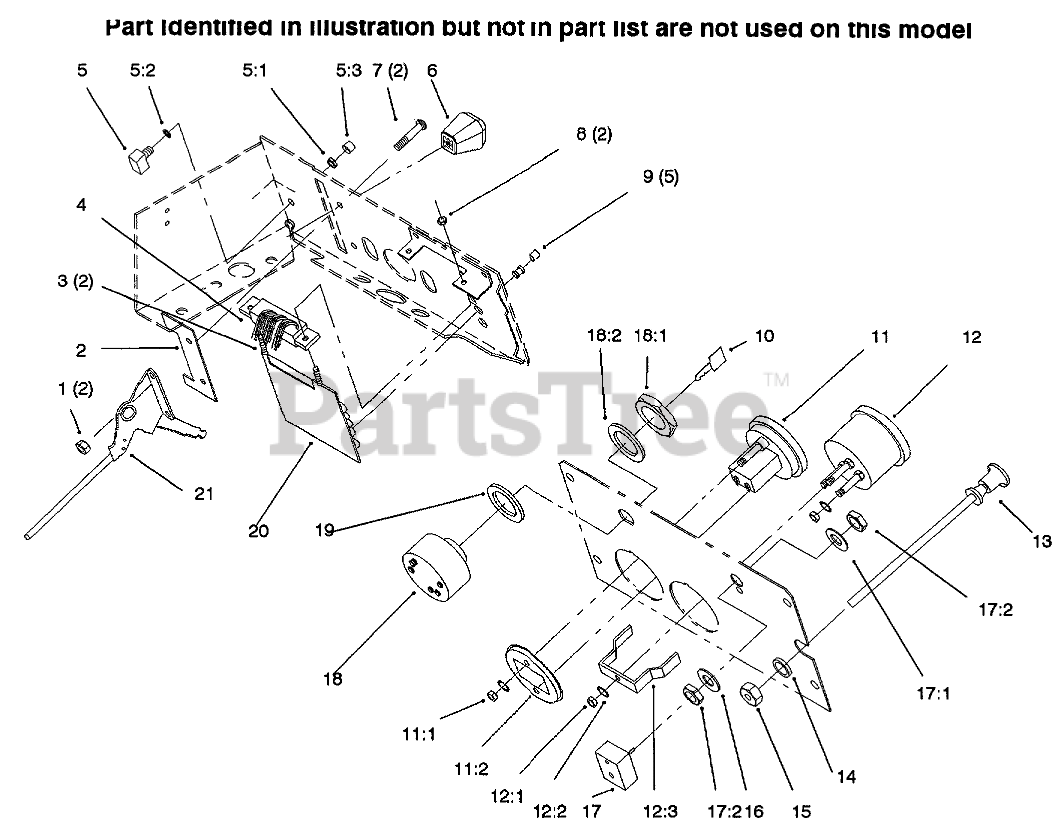

GAUGES, THROTTLE Parts Diagram

  • Title

1

Toro 9157404

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

2

Toro 120590

Washer
(Superseded to 120590-03)

$

$

Not available

3

Toro 9107562

Screw

$

$

Currently unavailable

4

Toro 117377

P.C. BOARD HARNESS

$

$

Not available

5

Toro 116796

SWITCH-PUSH BUTTON

$84.99

$

Usually ships in 3-6 days

0

6

Toro 66-0120

KNOB

$5.99

$

In Stock, only 2 left!

0

7

Toro 9107922

SCRW-PHC

$9.99

$

Usually ships in 3-6 days

0

8

Toro 9157324

NUT-HEX

$1.49

$

In Stock, Qty 7

0

9

Toro 111343

ASSY LENS & BUSHING

$

$

Not available

10

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, only 2 left!

0

11

Toro 94-3723

Hourmeter
(Superseded to 66-2950)

$

$

Not available

11:1

Toro 32149-9

NUT-HEX, KEPS

$1.49

$

Usually ships in 3-6 days

0

11:2

Toro 94-1849

Retainer

$

$

Currently unavailable

12

Toro 79-0060

VOLTMETER

$143.99

$

Usually ships in 3-6 days

0

12:1

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

12:2

Toro 3255-25

WASHER-LOCK
(Superseded to 3255-20)

$0.99

$

Usually ships in 3-6 days

0

12:3

Toro 78-0080

CLAMP-MOUNTING

$5.99

$

Usually ships in 3-6 days

0

13

Toro 114951

CONTROL-CHOKE

$101.99

$

Usually ships in 3-6 days

0

14

Toro 3256-37

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

15

Toro 109530

NUT-HEX PALNUT

$0.99

$

In Stock, only 4 left!

0

16

Toro 9202594

WASHER

$0.99

$

In Stock, only 4 left!

0

17

Toro 102138

SWITCH-LIGHTS

$34.99

$

Usually ships in 3-6 days

0

17:1

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

17:2

Toro 113179

DISC

$

$

Not available

18

Toro 111216

IGNITION SWITCH ASM
(Superseded to 103990)

$27.99

$

In Stock, only 4 left!

0

18:1

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

18:2

Toro 9201604

WASHER-LOCK

$0.99

$

In Stock, only 3 left!

0

19

Toro 9202624

WASHER

$8.99

$

Usually ships in 3-6 days

0

20

Toro 114825

Board-Pc
(Superseded to 115207)

$

$

Not available

21

Toro 115392

CONTROL-THROTTLE

$93.99

$

In Stock, only 3 left!

0
