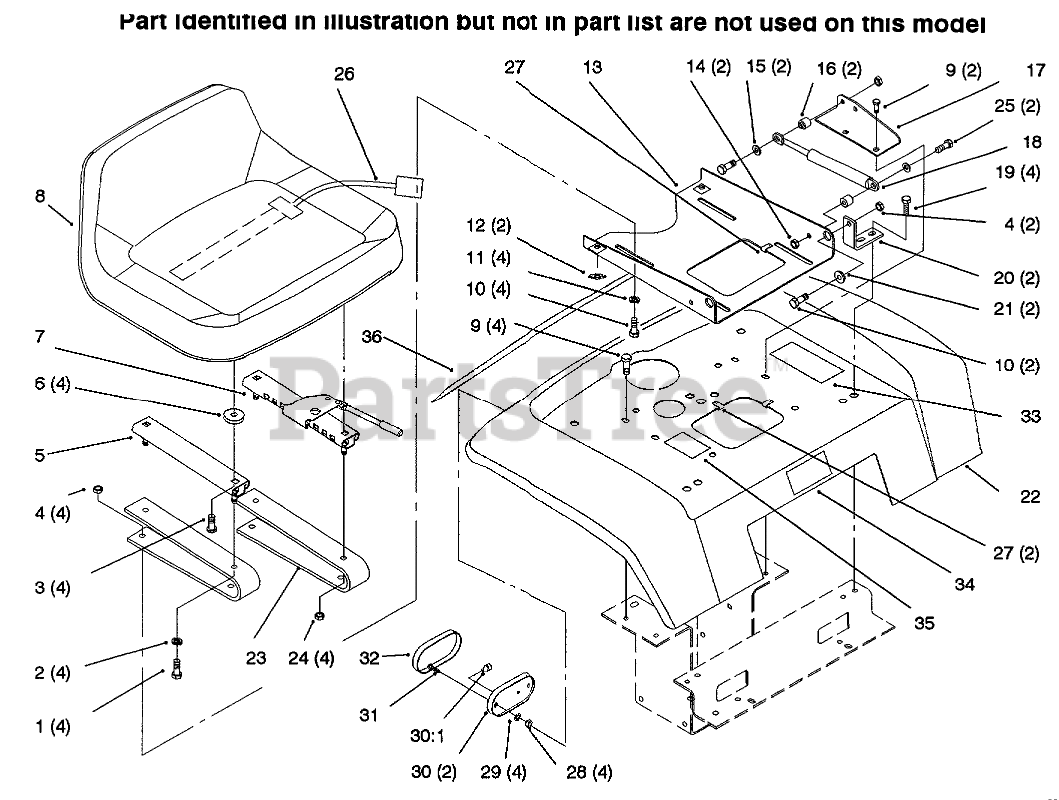

73423 (416-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) FENDER, SEAT Parts Diagram

Garden Tractor

FENDER, SEAT Parts Diagram

  • Title
3

Toro 910865

Screw
(Superseded to 32122-14)

$2.49

$

In Stock, Qty 16

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 114265

ADJUSTER-R.H. SEAT

$

$

Not available

6

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0

7

Toro 114264

Adjuster-Seat
(Superseded to 93-0319)

$

$

Not available

8

Toro 94-3719

SEAT
(Superseded to 98-1625)

$

$

Not available

9

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

10

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

12

Toro 111071

BUMPER SJ5514 BLACK

$3.49

$

In Stock, Qty 5

0

13

Toro 78-2990

Plate-SeatPivot
(Superseded to 78-2990-03)

$

$

Not available

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 114344

SPACER

$2.49

$

Usually ships in 3-6 days

0

17

Toro 114345

BRACKET-CYLINDER R

$

$

Not available

18

Toro 114343

GAS SPRING

$133.99

$

In Stock, only 1 left!

0

19

Toro 9266974

SCREW-HWHTF
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

20

Toro 105524

BRACKET-PIVOT

$

$

Not available

21

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

22

$

$

Not available

23

Toro 114263

Seat Spring
(Superseded to 114263-03)

$195.99

$

In Stock, only 1 left!

0

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 10

0

26

Toro 38-1420

SWITCH-SEAT

$

$

Not available

27

Toro 3023

SPEED CLIP

$

$

Not available

28

Toro 3296-27

NUT-LOCK, NI

$1.49

$

In Stock, Qty 10

0

29

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

30

Toro 105202

BASE-TAIL LIGHT

$

$

Not available

31

Toro 3250-31

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

32

Toro 112564

LENS-TAIL LIGHT

$9.99

$

In Stock, Qty 5

0
