73422 (416-8) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) HOODSTAND ELECTRICAL HOUSING & WIRE HARNESS Parts Diagram

Garden Tractor

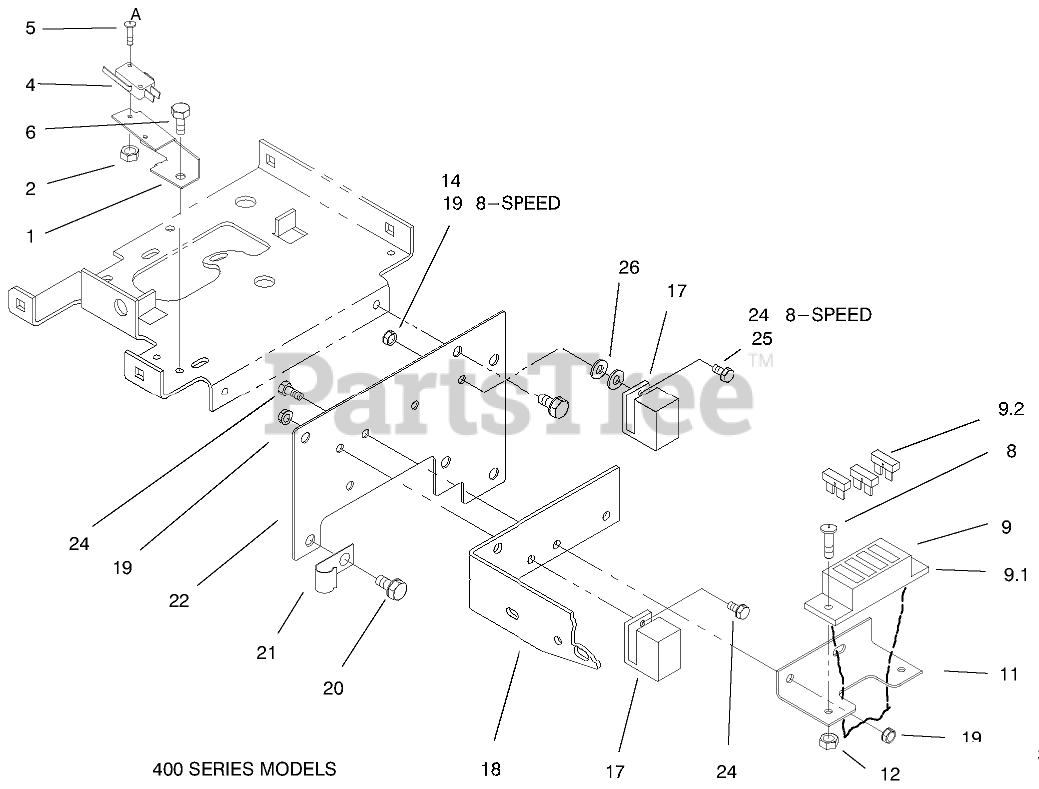

HOODSTAND ELECTRICAL HOUSING & WIRE HARNESS Parts Diagram

  • Title

1

Toro 9157324

NUT-HEX

$1.49

$

In Stock, Qty 7

0

2

Toro 115411

BRACKET-SWITCH

$

$

Not available

4

Toro 111332

SWITCH

$12.99

$

In Stock, only 2 left!

0

5

Toro 9104784

SCREW-PHL 4-40X1 1/4

$1.99

$

Usually ships in 3-6 days

0

6

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

8

Toro 9107944

SCREW-PAN

$2.99

$

Usually ships in 3-6 days

0

9

Toro 79-3600

WIRING-HARNESS & DIA

$

$

Not available

9.1

Toro 120930

FUSE-HOLDER 4 WAY
(Superseded to 67-7160)

$22.99

$

In Stock, only 1 left!

0

9.2

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 17

0

9.2

Toro 109355

FUSE-BLADE, 15 AMP

$3.99

$

Usually ships in 3-6 days

0

9.2

Toro NN10277

FUSE-30 AMP

$9.99

$

Usually ships in 3-6 days

0

11

Toro 118280-03

Bracket-Fuse Holder

$

$

Currently unavailable

12

Toro 9157404

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

17

Toro 116397

RELAY

$40.99

$

In Stock, only 1 left!

0

18

Toro 109554-03

BRACKET-BELT (BLACK)

$23.99

$

Usually ships in 3-6 days

0

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

21

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

22

Toro 78-3020-03

PLATE-FRONT HOODS (BLACK)

$

$

Not available

24

Toro 3234-33

SCREW-HHF

$0.99

$

In Stock, Qty 10

0
