73422 (416-8) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) GOVERNOR Parts Diagram

Garden Tractor

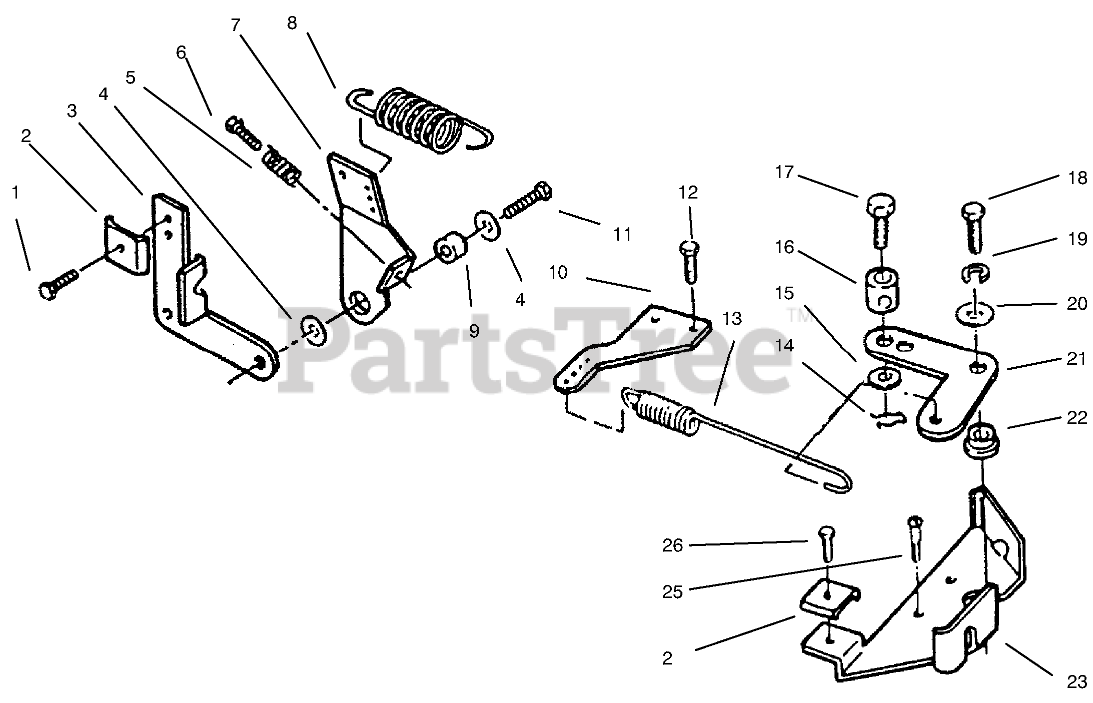

GOVERNOR Parts Diagram

  • Title
1

Toro 72-3900

SCREW-TAPPING

$

$

Not available

2

$

$

Not available

3

Toro 57-9150

BRACKET-GOVERNOR

$

$

Not available

4

Toro 59-0830

WASHER-FLAT

$

$

Not available

5

Toro 59-0430

SPRING

$

$

Not available

6

Toro 59-1030

SCREW-TAP

$

$

Not available

7

Toro 92-0922

GOVERNOR CONTROL ARM

$

$

Not available

8

Toro 57-9100

SPRING

$

$

Not available

9

Toro 57-9120

BUSHING

$

$

Not available

10

Toro 79-6420

ADAPTER-GOV ARM

$

$

Not available

11

Toro 59-1100

SCREW-HWH

$

$

Not available

12

Toro 59-1050

SCREW-TAPPING PAN HD

$

$

Not available

13

Toro NN10932

SPRING-GOV

$

$

Not available

14

Toro 59-0720

PIN-COTTER

$

$

Not available

15

Toro 201270

WASHER-FLAT

$

$

Not available

16

Toro 57-9120

BUSHING

$

$

Not available

17

Toro 72-3890

SCREW

$

$

Not available

18

Toro 82-1370

SCREW - CAP HEX HEAD

$

$

Not available

19

Toro 82-1620

WASHER-LOCK, SPRING

$

$

Not available

20

Toro 59-0830

WASHER-FLAT

$

$

Not available

21

Toro 201256

Governor Control Arm
(Superseded to 79-6410)

$

$

Not available

22

Toro 79-6400

BUSHING-GOV CONTROL

$

$

Not available

23

Toro 79-6390

BRKT-GOVERNOR CONTRL

$

$

Not available

25

Toro 201327

HEX HD CAP SCREW

$

$

Not available

26

Toro 59-1000

TAPPING HEX HD CS

$

$

Not available
