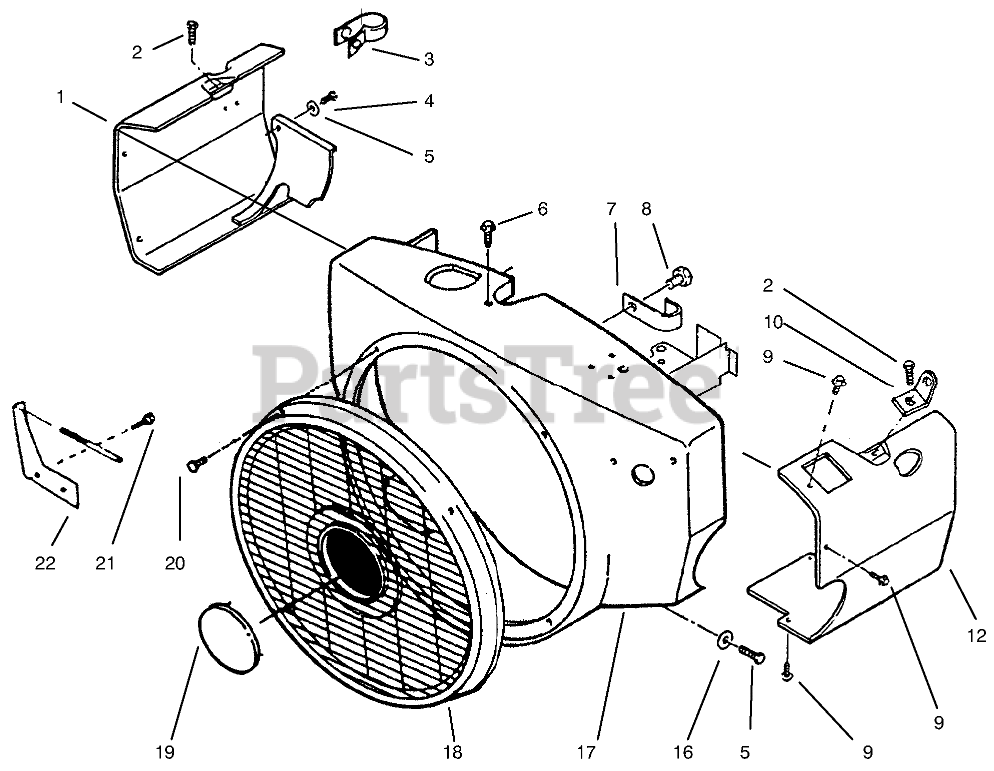

73422 (416-8) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) ENGINE HOUSING Parts Diagram

Garden Tractor

ENGINE HOUSING Parts Diagram

  • Title
1

Toro 92-0920

LH AIR CYLINDER HSG

$

$

Not available

2

Toro 82-1600

SCREW-HWH

$

$

Not available

3

Toro 59-0580

WIRE CLAMP

$

$

Not available

4

Toro 59-0980

SCREW-HH

$

$

Not available

5

Toro 59-0830

WASHER-FLAT

$

$

Not available

6

Toro 59-0970

HEX HD CAPSCREW

$

$

Not available

7

Toro 71-6220

CLIP-WIRE

$

$

Not available

8

Toro 82-1540

SCREW-HWH

$

$

Not available

9

Toro 59-1080

SCREW-HWH

$

$

Not available

10

Toro 98-1701

Bracket-Lift

$

$

Currently unavailable

12

Toro 92-0921

RH AIR CYLINDER HSG

$

$

Not available

16

Toro 59-0820

WASHER-FLAT

$

$

Not available

17

Toro 98-1702

HOUSING - BLOWER

$

$

Not available

Toro NN10769

BLOWER-HOUSING

Note: Not illustrated

$

$

Not available

18

Toro 82-0620

GUARD-STATIONARY

$

$

Not available

20

Toro 82-1590

SCREW-PAN HEAD

$

$

Not available

21

Toro 59-1100

SCREW-HWH

$

$

Not available

22

Toro NN10832

BRACKET

$

$

Not available
