73422 (416-8) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) 416-8 WIRE HARNESS ATTACHMENT & COMPONENT-S Parts Diagram

Garden Tractor

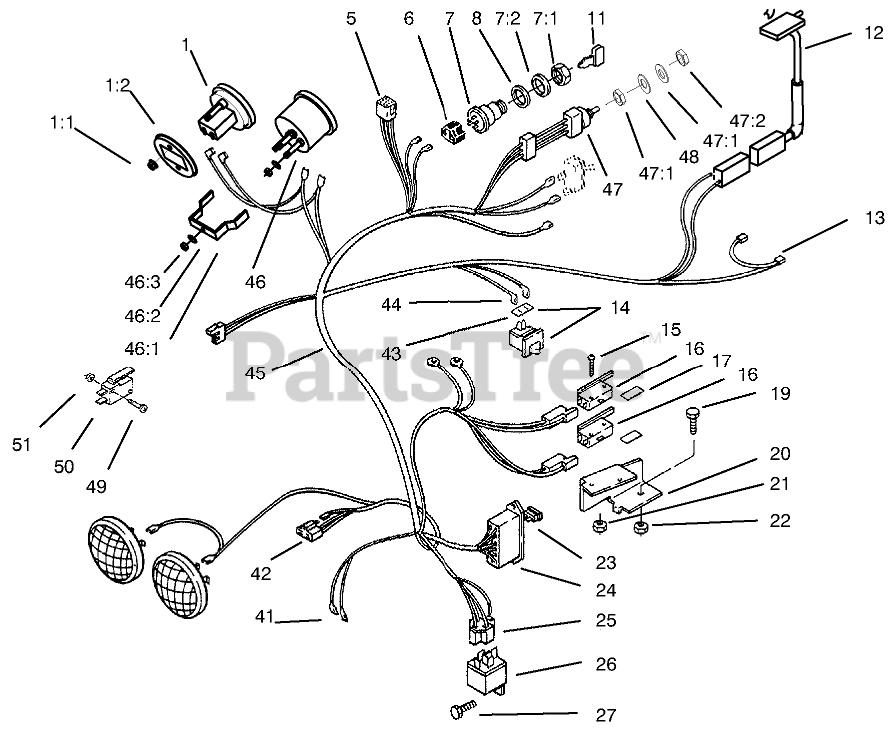

416-8 WIRE HARNESS ATTACHMENT & COMPONENT-S Parts Diagram

  • Title
1

Toro 94-3723

Hourmeter
(Superseded to 66-2950)

$

$

Not available

1:1

Toro 32149-9

NUT-HEX, KEPS

$1.99

$

Usually ships in 3-6 days

0

1:2

Toro 94-1849

Retainer

$

$

Currently unavailable

5

Toro 102651

Terminal

$

$

Not available

6

Toro 104926

CONNECTOR BODY ELECT

$4.49

$

In Stock, only 2 left!

0

7

Toro 111216

IGNITION SWITCH ASM
(Superseded to 103990)

$28.99

$

In Stock, only 4 left!

0

7:1

$7.49

$

In Stock, only 1 left!

0

7:2

Toro 920104

Washer-Lock

$

$

Currently unavailable

8

Toro 9202624

WASHER

$8.99

$

Usually ships in 3-6 days

0

11

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, only 1 left!

0

12

Toro 38-1420

SWITCH-SEAT

$

$

Not available

13

Toro 6921

Sur-Plug

$

$

Currently unavailable

14

Toro 103480

Switch-Interlock, (Incl. Ref. #43)

$

$

Not available

15

Toro 910478

Screw
(Superseded to 9104784)

$1.99

$

Usually ships in 3-6 days

0

16

Toro 111332

SWITCH

$12.99

$

In Stock, only 2 left!

0

17

Toro 111642

BARRIER - SWITCH

$

$

Not available

19

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

20

Toro 115411

BRACKET-SWITCH

$

$

Not available

21

Toro 915732

NUT HEX 4-40 ELAST
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0

22

$

$

Currently unavailable

23

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 8

0

Toro NN10277

FUSE-30 AMP

$9.99

$

Usually ships in 3-6 days

0

24

Toro 120930

FUSE-HOLDER 4 WAY
(Superseded to 67-7160)

$22.99

$

In Stock, only 1 left!

0

25

Toro 518105

TERMINAL 10

$8.99

$

Usually ships in 3-6 days

0

26

Toro 116397

RELAY

$40.99

$

In Stock, only 1 left!

0

27

Toro 960152

Screw
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

42

Toro 112185

5-CONTACT CONN BODY

$9.49

$

Usually ships in 3-6 days

0

43

Toro 110502

SHIELD-DIRT SPST

$

$

Not available

44

Toro 518077

Terminal

$

$

Currently unavailable

45

Toro 79-3600

Wire Harness (Incl. Ref.# 5, 6, 13, 24, 25, 42 & 45)

$

$

Not available

46

Toro 79-0060

VOLTMETER

$168.99

$

Usually ships in 3-6 days

0

46:1

Toro 78-0080

CLAMP-MOUNTING

$

$

Not available

46:2

Toro 3255-24

WASHER-LOCK / EXT

$0.99

$

Usually ships in 3-6 days

0

46:3

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

47

Toro 102138

SWITCH-LIGHTS

$40.99

$

Usually ships in 3-6 days

0

47:1

Toro 3255-25

WASHER-LOCK
(Superseded to 3255-20)

$0.99

$

Usually ships in 3-6 days

0

47:2

$

$

Currently unavailable

48

Toro 9202594

WASHER

$0.99

$

In Stock, only 4 left!

0

49

Toro 910948

Screw
(Superseded to 9109484)

$0.99

$

In Stock, Qty 10

0

50

Toro 111332

SWITCH

$12.99

$

In Stock, only 2 left!

0

51

Toro 915732

NUT HEX 4-40 ELAST
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0
