73422 (416-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) OIL FILL TUBE & BASE Parts Diagram

Garden Tractor

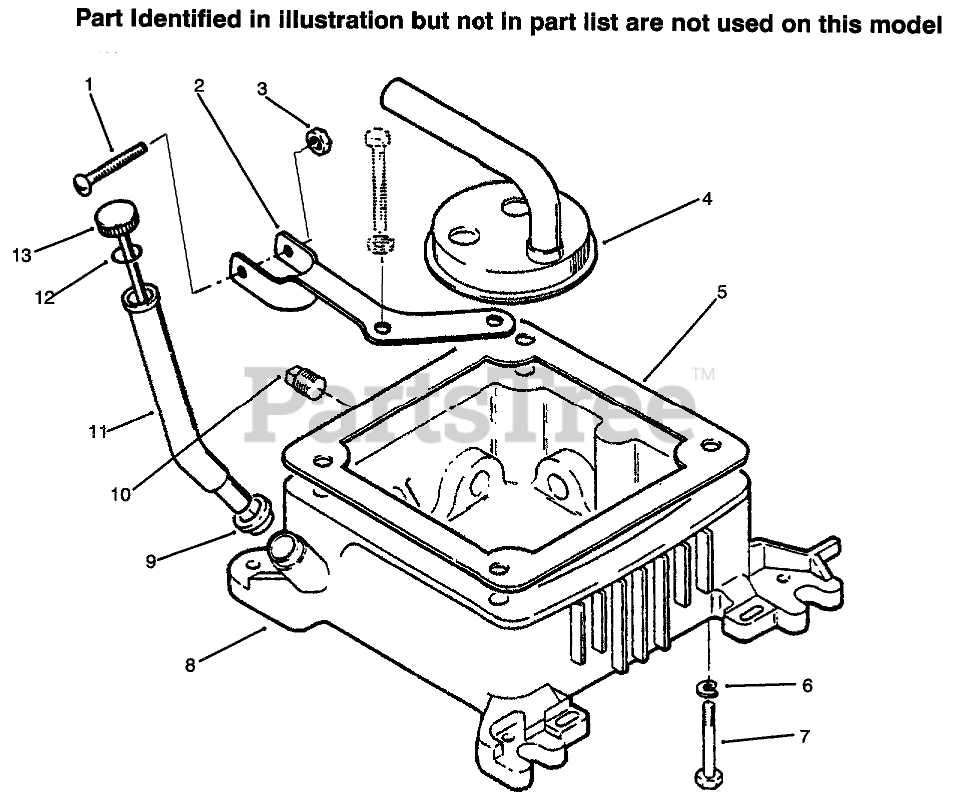

OIL FILL TUBE & BASE Parts Diagram

  • Title
1

Toro 82-1560

SCREW - PAN HEAD

$

$

Not available

2

Toro 79-6460

BRACKET-FILL TUBE

$55.99

$

Usually ships in 3-6 days

0

3

Toro 82-1700

NUT - SPEED

$

$

Not available

4

Toro 57-8490

OIL CUP ASM

$

$

Not available

5

Toro 57-8090

GASKET

$37.99

$

Usually ships in 3-6 days

0

6

Toro 82-1310

WASHER-FLAT

$

$

Not available

7

Toro NN10379

HHCS 3/8-16 X 3 3/4

$

$

Not available

8

Toro 71-5730

OIL BASE ASSY

$

$

Not available

9

Toro 71-6170

SEAL-OIL FILL TUBE

$15.99

$

In Stock, only 1 left!

0

10

Toro 82-1130

PLUG - SQUARE HEAD

$

$

Not available

11

Toro NN10448

Tube-Oil Fill
(Superseded to NN10854)

$

$

Not available

12

Toro 57-9610

SEAL 0-RING

$7.99

$

In Stock, only 1 left!

0

13

Toro NN10159

OIL FILL CAP & IND
(Superseded to 115-0940)

$

$

Not available
