73422 (416-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) MANUAL LIFT SYSTEM Parts Diagram

Garden Tractor

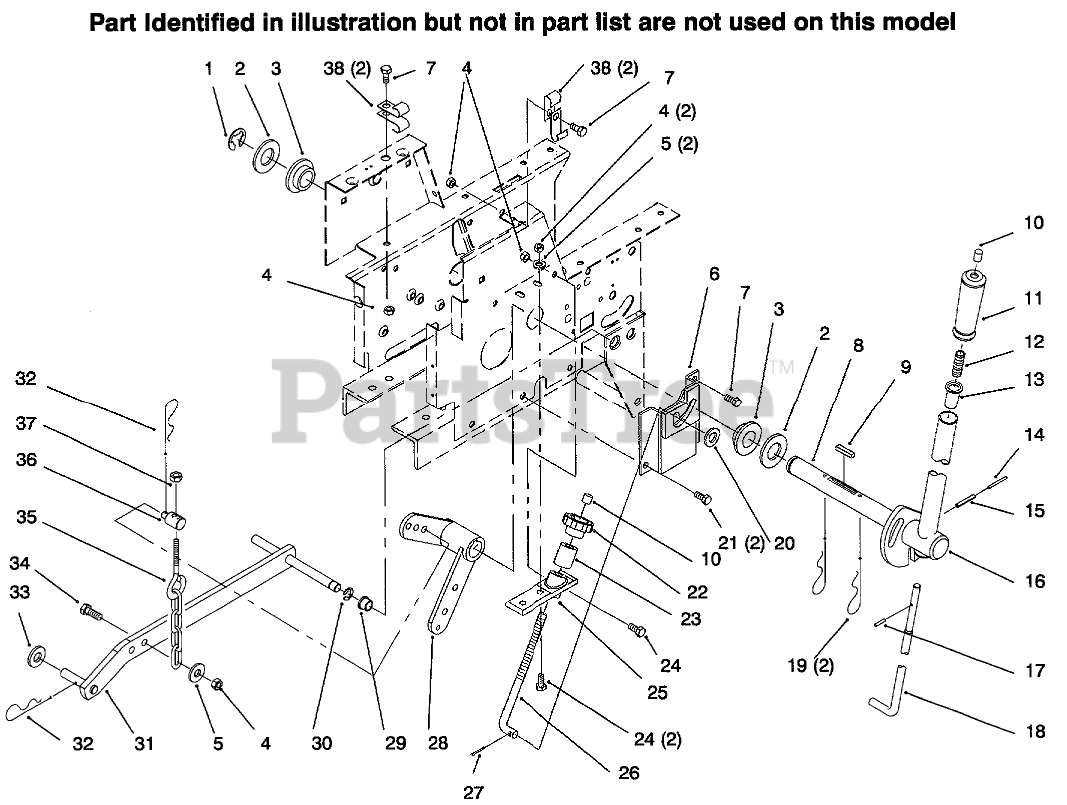

MANUAL LIFT SYSTEM Parts Diagram

  • Title
1

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

2

Toro 3256-62

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

3

Toro 106269

BEARING-FLANGE

$9.99

$

Usually ships in 3-6 days

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 106411

Latch Bracket
(Superseded to 106411-03)

$

$

Not available

7

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

8

Toro 108565

SHAFT-LIFT LEVER

$

$

Not available

9

Toro 1121

KEY-SQUARE

$12.99

$

Usually ships in 3-6 days

0

10

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

11

Toro 92-6710

GRIP-HANDLE

$12.99

$

Usually ships in 3-6 days

0

12

Toro 3624

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

13

Toro 8130

RETAINER-SPRING

$23.99

$

Usually ships in 3-6 days

0

14

Toro 32121-103

PIN-SPRING

$

$

Not available

15

Toro 32121-25

PIN-ROLL

$4.49

$

Usually ships in 3-6 days

0

16

Toro 108563

Lift Lever
(Superseded to 108563-03)

$

$

Not available

17

Toro 933148

PIN-SPIROL

$0.99

$

In Stock, only 3 left!

0

18

Toro 106257

ROD-LATCH LIFT

$112.99

$

Usually ships in 3-6 days

0

19

Toro 9335074

PIN-HAIR

$5.49

$

In Stock, Qty 5

0

20

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

21

Toro 9266964

SCREW-SELF TAP

$9.49

$

Usually ships in 3-6 days

0

22

Toro 5280

KNOB-LIFT CONTROL

$31.99

$

Usually ships in 3-6 days

0

23

Toro 106258

Sleeve
(Superseded to 106258-03)

$20.99

$

Usually ships in 3-6 days

0

24

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 106345

Casting
(Superseded to 106345-03)

$

$

Not available

26

Toro 110653

ROD-HEIGHT CONTROL

$54.99

$

Usually ships in 3-6 days

0

27

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

28

Toro 78-1550

LIFT LEVER ASM

$112.99

$

In Stock, only 1 left!

0

29

Toro 6229

BUSHING

$10.99

$

In Stock, only 2 left!

0

30

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

31

Toro 113445

Bar-Lift
(Superseded to 113445-03)

$134.99

$

Usually ships in 3-6 days

0

32

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

33

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

34

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

35

Toro 106522

CHAIN-LIFT

$36.99

$

In Stock, only 1 left!

0

36

Toro 6739

TRUNNION-LIFT

$24.99

$

In Stock, Qty 5

0

37

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

38

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

39

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0
