73422 (416-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) HOODSTAND, CONSOLE Parts Diagram

Garden Tractor

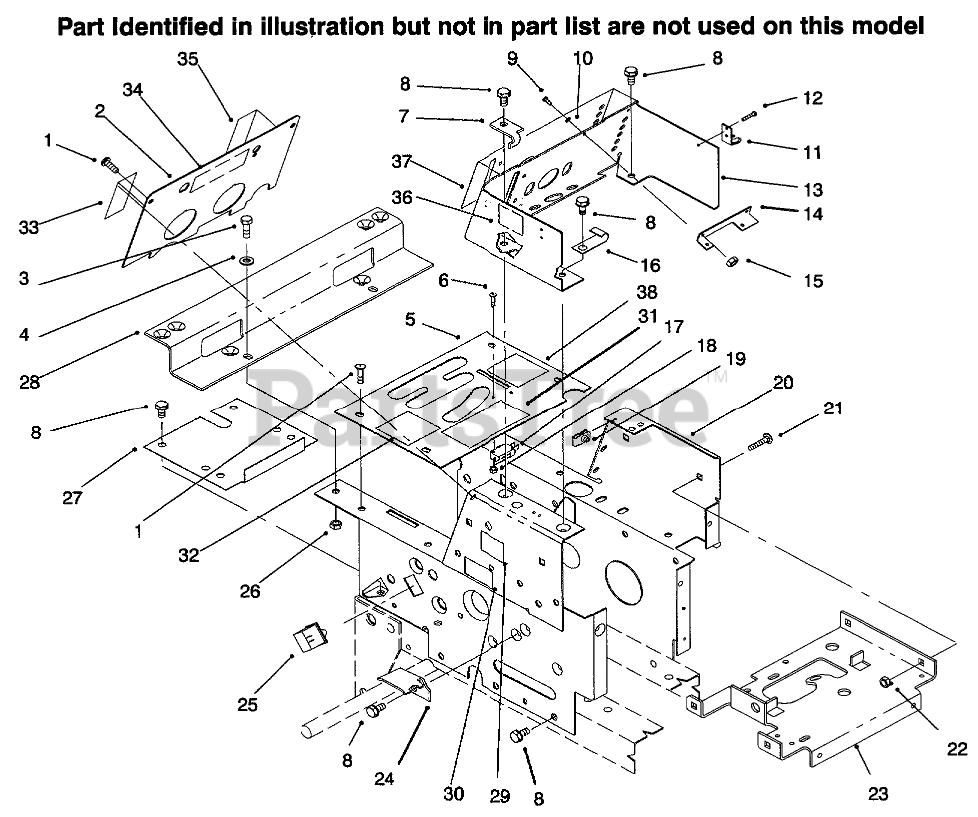

HOODSTAND, CONSOLE Parts Diagram

  • Title
1

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

2

Toro 94-1809

Plate-Hoodstand
(Superseded to 94-1809-03)

$

$

Not available

3

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 111386

Plate-Shift Cover
(Superseded to 92-6529)

$32.99

$

In Stock, only 1 left!

0

6

Toro 9109482

Screw

$

$

Currently unavailable

7

Toro 112415

STOP-PTO

$21.99

$

In Stock, only 1 left!

0

8

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

9

Toro 9107622

SCREW-PAN

$1.49

$

Usually ships in 3-6 days

0

10

Toro 9201504

Washer-Lock

$

$

Currently unavailable

11

Toro 117343

KEEPER-LATCH

$4.99

$

In Stock, only 2 left!

0

12

Toro 117431

POPRIVET 1/8X 1/8 BK

$

$

Not available

13

Toro 111271

Console
(Superseded to 111271-03)

$

$

Not available

14

Toro 112506

BRACKET

$9.49

$

Usually ships in 3-6 days

0

15

Toro 9159604

Nut
(Superseded to 3217-29)

$0.99

$

Usually ships in 3-6 days

0

16

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

17

Toro 111332

SWITCH

$12.99

$

In Stock, only 2 left!

0

18

Toro 9157324

NUT-HEX

$1.49

$

In Stock, Qty 7

0

19

$2.99

$

In Stock, Qty 20+

0

20

Toro 92-1525

Hoodstand
(Superseded to 95-7676-03)

$

$

Not available

21

Toro 117371

BOLT CARR. 5/16X1/2 BK

$

$

Not available

22

Toro 9151126

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

23

Toro 78-3010

SUPORT-BATERYB
(Superseded to 78-3010-03)

$

$

Not available

24

Toro 88-2170

Bracket-Belt
(Superseded to 88-2170-03)

$

$

Not available

25

Toro 103480

SWITCH INTERLOCK

$

$

Not available

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 106250

Cover-Dust
(Superseded to 106250-03)

$

$

Not available

28

Toro 107951

BRACKET-FENDER B
(Superseded to 95-7665-03)

$65.99

$

In Stock, only 1 left!

0

30

Toro 94-6340

DECAL - MODEL 416-8

$

$

Not available

31

Toro 92-8946

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0

32

Toro 111534

DECAL-SHIFT PATTERN

$9.49

$

Usually ships in 3-6 days

0

33

Toro 111960

DECAL PTO CLUTCH

$18.99

$

Usually ships in 3-6 days

0

34

Toro 79-2470

DECAL-BACK PLATE

$

$

Not available

35

Toro 112168

DECAL-LIFT

$11.99

$

Usually ships in 3-6 days

0

36

Toro 111926

DECAL ELECT SYSTEM

$

$

Not available

37

Toro 119200

DECAL-LOWER DASH

$

$

Not available

38

Toro 111510

DECAL-PARKING, BRAKE

$8.99

$

Usually ships in 3-6 days

0
