73422 (416-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) ENGINE CYLINDER BLOCK Parts Diagram

Garden Tractor

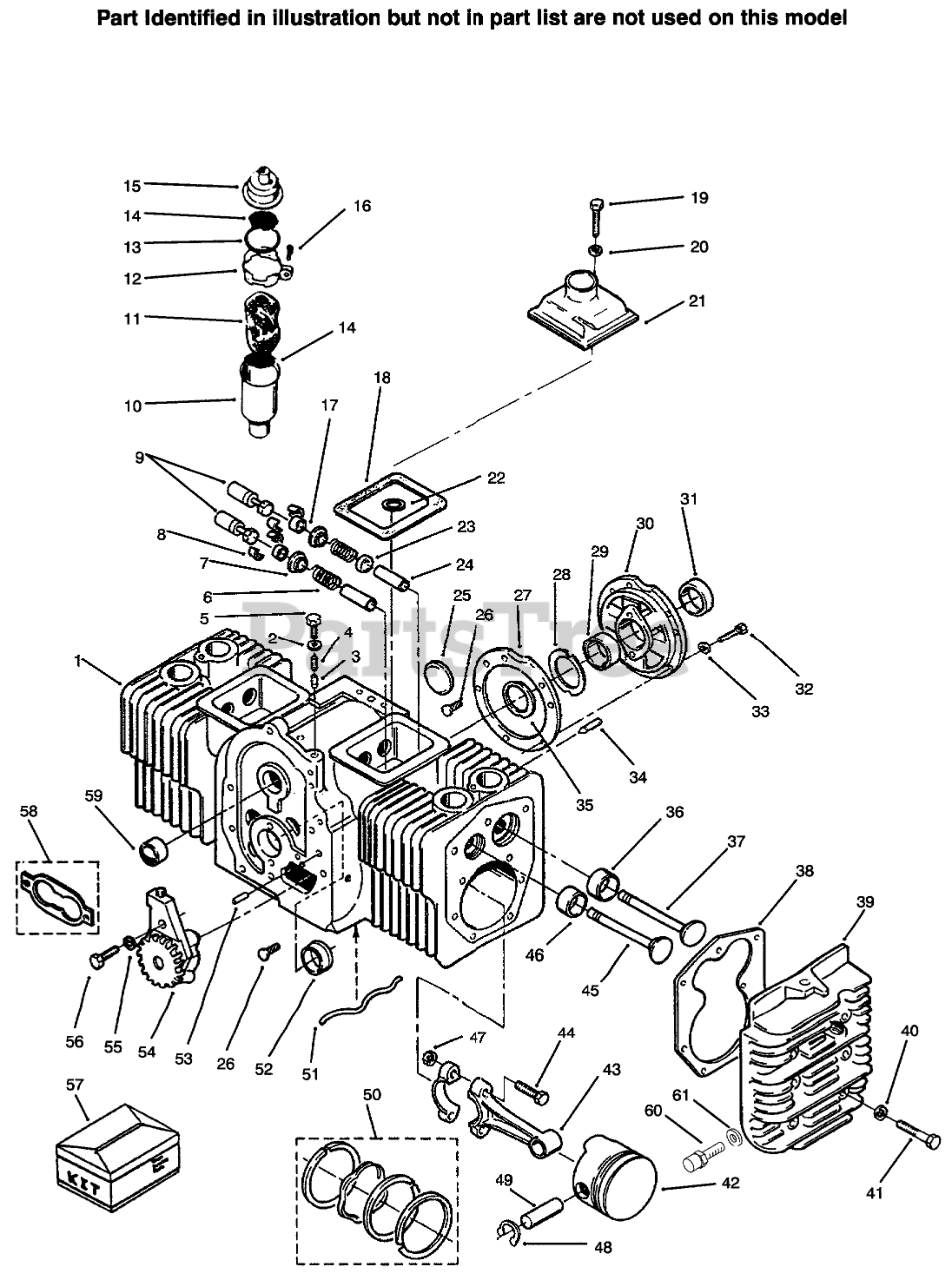

ENGINE CYLINDER BLOCK Parts Diagram

  • Title

1

Toro NN10850

SHORT-BLOCK

$

$

Not available

2

Toro 57-9760

WASHER

$

$

Not available

3

Toro 57-8470

PLUNGER

$

$

Not available

4

Toro 59-0280

SPRING

$

$

Not available

5

Toro 59-0910

SCREW-HH

$

$

Not available

6

Toro 71-5790

VALVE SPRING

$

$

Not available

7

Toro 71-5800

VALVE SPRING RETAINER

$

$

Not available

8

Toro NN10082

VALVE SPRING LOCK

$

$

Not available

9

Toro 57-8450

TAPPET

$

$

Not available

Toro 59-0260

TAPPET .002 OS

Note: Not illustrated

$

$

Not available

10

Toro 82-0540

TUBE-BREATHER

$

$

Not available

11

Toro 57-8580

FILTER

$6.99

$

Usually ships in 3-6 days

0

12

Toro 82-0530

Clamp

$

$

Not available

13

Toro 82-0570

SEAL - O-RING

$7.49

$

Usually ships in 3-6 days

0

14

Toro 82-0560

SCREEN-BREATHER TUBE

$

$

Not available

15

Toro 82-0550

BREATHER-CAP AND VALVE

$

$

Not available

16

Toro 82-1480

SCREW-TAPPING, ROUND HEAD

$

$

Not available

17

Toro 71-5830

VALVE CAP

$

$

Not available

18

Toro 57-8280

GASKET

$11.99

$

In Stock, only 1 left!

0

19

Toro NN10370

HHCS 1/4-20 X 1 3/4

$

$

Not available

20

Toro 57-9740

WASHER

$

$

Not available

21

Toro NN10821

VALVE-COVER L.H.

$

$

Not available

22

Toro 59-0820

WASHER-FLAT

$

$

Not available

23

Toro 71-6180

VALVE STEM SEAL

$18.99

$

Usually ships in 3-6 days

0

24

Toro 71-6250

EXHAUST VALVE GUIDE

$

$

Not available

Toro 71-6260

INTAKE VALVE GUIDE

Note: Not illustrated

$

$

Not available

25

Toro 57-9690

PLUG

$8.49

$

Usually ships in 3-6 days

0

26

Toro 59-0730

PIN-DRIVE

$

$

Not available

27

Toro 57-8010

GASKET

$28.99

$

In Stock, only 2 left!

0

28

Toro 57-8170

SHIM

$8.49

$

Usually ships in 3-6 days

0

29

Toro 57-8050

BEARING KIT (STANDARD SLEEVE)

$236.99

$

Usually ships in 3-6 days

0

Toro 57-8060

BEARING KIT (.010)

Note: Not illustrated

$

$

Not available

Toro 59-0020

BEARING-CRANKSHAFT (.002)

Note: Not illustrated

$

$

Not available

Toro 59-0030

BEARING-CRANKSHAFT (.020)

Note: Not illustrated

$

$

Not available

Toro 59-0040

BEARING-CRANKSHAFT (.030)

Note: Not illustrated

$

$

Not available

30

Toro 82-0020

PLATE-BEARING, REAR

$

$

Not available

31

Toro 57-9590

SEAL

$41.99

$

In Stock, only 2 left!

0

32

Toro 59-0880

HEX HD CAPSCREW

$

$

Not available

33

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 17

0

33

Toro 82-1310

WASHER-FLAT

$

$

Not available

34

Toro 3247-4

SCREW-SET

$5.99

$

Usually ships in 3-6 days

0

35

Toro 57-8160

WASHER

$

$

Not available

36

Toro 59-0050

STD INSERT

$

$

Not available

Toro 59-0080

INSERT .010

Note: Not illustrated

$

$

Not available

37

Toro 71-5770

INTAKE VALVE

$

$

Not available

38

Toro 57-8330

GASKET

$

$

Not available

39

Toro 59-0180

CYL RS HEAD

$

$

Not available

Toro 71-5810

LH CYLINDER HEAD

Note: Not illustrated

$609.99

$

Usually ships in 3-6 days

0

40

Toro 57-9770

WASHER

$

$

Not available

41

Toro 59-0900

Screw-HH
(Superseded to 71-6270)

$

$

Not available

42

Toro 82-1800

STD PISTON KIT

$

$

Not available

Toro 92-0902

PISTON .010

Note: Not illustrated

$

$

Not available

Toro 92-0903

PISTON .020

$

$

Not available

Toro 92-0904

PISTON .030

Note: Not illustrated

$

$

Not available

43

Toro NN10125

CONNECTING ROD W/NUT

$

$

Not available

43

Toro NN10126

CONNECTING ROD W/NUT

$

$

Not available

43

Toro NN10127

CONNECTING ROD W/NUT

$

$

Not available

43

Toro NN10128

CONNECTING ROD W/NUT

$

$

Not available

44

Toro 57-8410

BOLT

$

$

Not available

45

Toro 71-5780

EXHAUST VALVE

$

$

Not available

46

Toro 59-0100

STD INSERT

$

$

Not available

Toro 59-0110

INSERT .002

Note: Not illustrated

$

$

Not available

Toro 59-0120

INSERT .005

Note: Not illustrated

$

$

Not available

Toro 59-0130

INSERT .010

Note: Not illustrated

$

$

Not available

Toro 59-0140

.025" Oversize
(Superseded to 79-6220)

Note: Not illustrated

$

$

Not available

47

Toro 57-9790

NUT

$

$

Not available

48

Toro 57-9720

Piston Pin

$

$

Not available

49

Toro 71-6310

PISTON PIN

$

$

Not available

50

Toro 92-0905

RING/PISTON KIT

$

$

Not available

Toro 92-0906

RING/PISTON KIT .050

Note: Not illustrated

$

$

Not available

Toro 92-0907

RING/PISTON KIT .010

Note: Not illustrated

$

$

Not available

Toro 92-0908

RING/PISTON KIT .020

Note: Not illustrated

$

$

Not available

Toro 92-0909

RING/PISTON KIT .030

Note: Not illustrated

$

$

Not available

51

Toro 59-0290

OIL TUBE

$

$

Not available

52

Toro 57-8020

KIT-BEARING, SLEEVE
(Superseded to 57-8030)

$

$

Not available

Toro 57-8030

BEARING KIT (.010)

Note: Not illustrated

$

$

Not available

Toro 57-9360

BEARING-CRANKSHAFT

Note: Not illustrated

$

$

Not available

Toro 57-9800

BEARING-CRANKSHAFT

Note: Not illustrated

$

$

Not available

Toro 59-0010

BEARING-CRANKSHAFT

Note: Not illustrated

$

$

Not available

53

Toro 59-0750

PIN-GEAR COVER

$7.99

$

Usually ships in 3-6 days

0

54

Toro 57-8480

PUMP

$

$

Not available

55

Toro 82-1340

WASHER-FLAT

$

$

Not available

56

Toro 82-1370

SCREW - CAP HEX HEAD

$

$

Not available

57

Toro 71-6290

ENGINE GASKET KIT

$

$

Not available

58

Toro 57-8460

GASKET KIT

$

$

Not available

59

Toro 57-8000

SLEEVE-BEARING

$153.99

$

Usually ships in 3-6 days

0

60

Toro NN10274

HIGH TEMPERATURE

$

$

Not available

61

Toro NN10924

WASHER-LOCK EXT TO

$

$

Not available
