73421 (416-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) GOVERNOR Parts Diagram

Garden Tractor

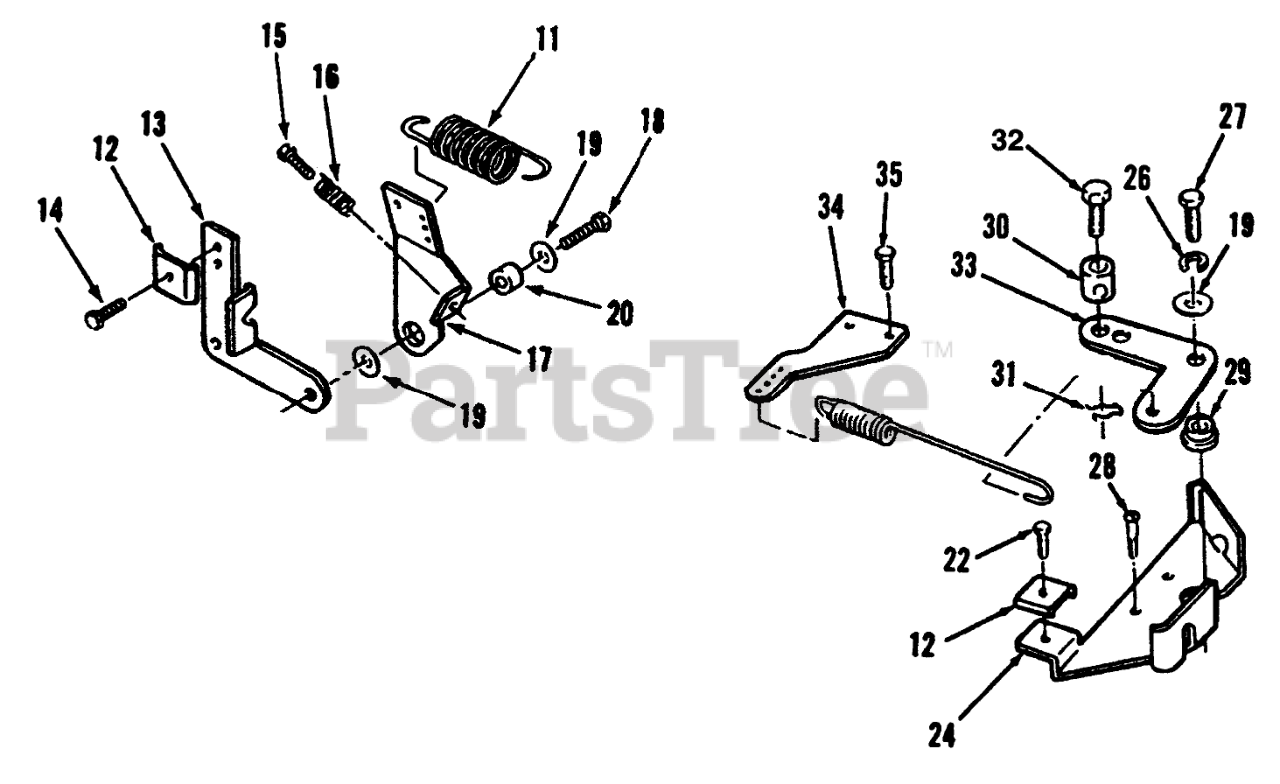

GOVERNOR Parts Diagram

  • Title
11

Toro 57-9100

SPRING

$

$

Not available

12

$

$

Not available

13

Toro 79-6360

BRACKET

$

$

Not available

14

Toro 72-3900

SCREW-TAPPING

$

$

Not available

15

Toro 59-1030

SCREW-TAP

$

$

Not available

16

Toro 59-0430

SPRING

$

$

Not available

17

Toro 92-0922

GOVERNOR CONTROL ARM

$

$

Not available

18

Toro 59-1100

SCREW-HWH

$

$

Not available

19

Toro 59-0830

WASHER-FLAT

$

$

Not available

20

Toro 57-9120

BUSHING

$

$

Not available

22

Toro 59-1000

TAPPING HEX HD CS

$

$

Not available

24

Toro 79-6390

BRKT-GOVERNOR CONTRL

$

$

Not available

26

Toro 82-1620

WASHER-LOCK, SPRING

$

$

Not available

27

Toro 82-1370

SCREW - CAP HEX HEAD

$

$

Not available

28

Toro 201327

HEX HD CAP SCREW

$

$

Not available

29

Toro 79-6400

BUSHING-GOV CONTROL

$

$

Not available

30

$

$

Not available

31

Toro 59-0720

PIN-COTTER

$

$

Not available

32

Toro 72-3890

SCREW

$

$

Not available

33

Toro 201256

Governor Control Arm
(Superseded to 79-6410)

$

$

Not available

34

Toro 79-6420

ADAPTER-GOV ARM

$

$

Not available

35

Toro NN10403

Screw
(Superseded to 59-1050)

$

$

Not available
