73421 (416-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) GEARCASE AND IGNITION CONTROLS Parts Diagram

Garden Tractor

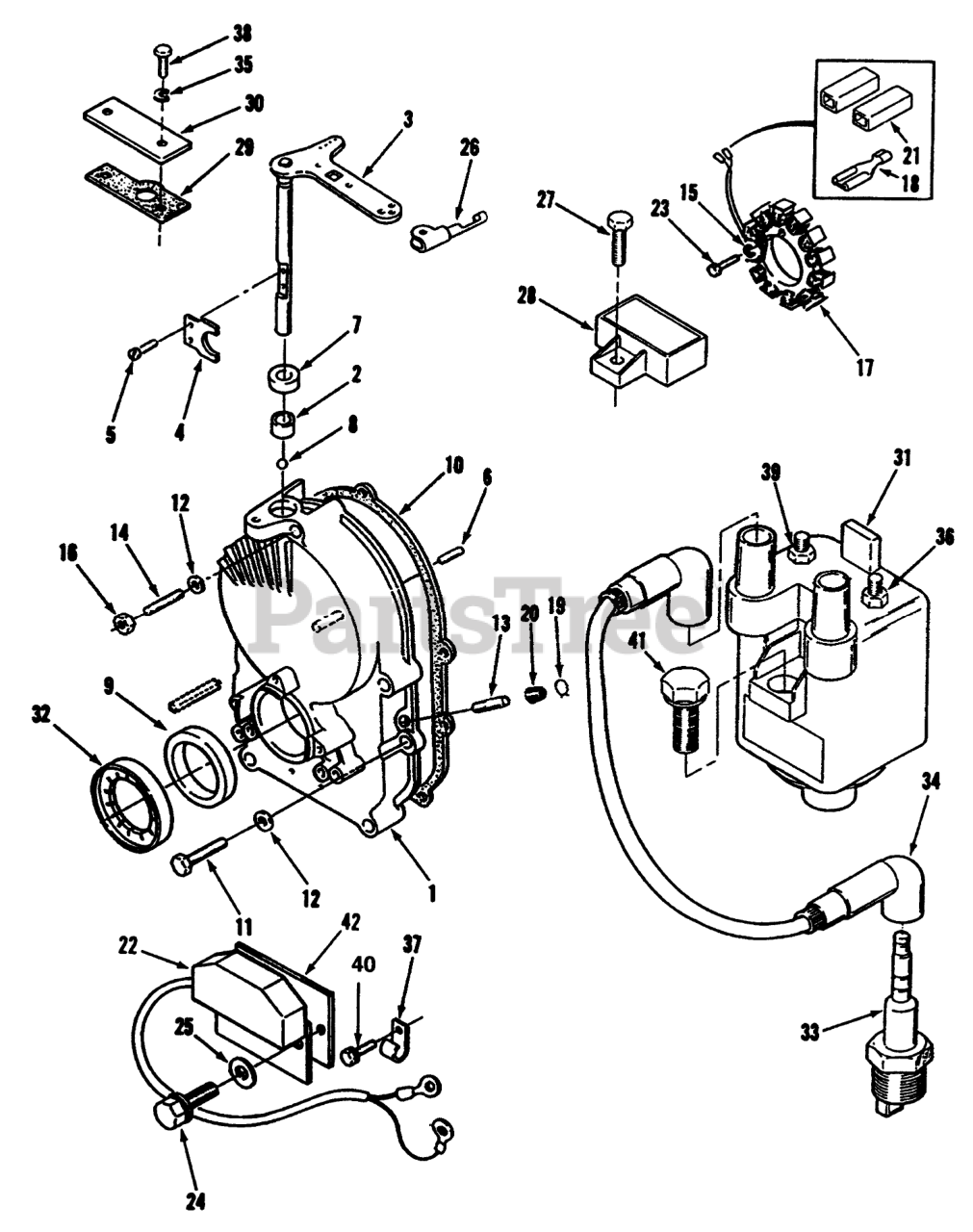

GEARCASE AND IGNITION CONTROLS Parts Diagram

  • Title

1

Toro NN10825

Kit-Gearcase (Incl. Ref. #2-9, 13, 19, & 20)

$

$

Not available

2

Toro 57-9650

BEARING

$

$

Not available

3

Toro NN10826

SHAFT AND ARM

$200.99

$

Usually ships in 3-6 days

0

4

Toro 59-0420

YOKE

$

$

Not available

5

Toro 59-0950

SCREW-PAN HD

$

$

Not available

6

Toro 59-0740

PIN-DOWEL

$6.49

$

In Stock, only 1 left!

0

7

Toro 57-9570

SEAL

$

$

Not available

8

Toro 57-9630

BALL

$

$

Not available

9

Toro 57-9580

SEAL

$

$

Not available

10

Toro 71-6360

GEAR CASE MTG GASKET

$

$

Not available

11

Toro 82-1410

Bolt
(Superseded to NN10545)

$

$

Not available

12

Toro 57-9750

WASHER

$

$

Not available

13

Toro 59-0360

TUBE-PORT, VACUUM

$

$

Not available

14

Toro 59-0790

STUD-GEAR COVER

$

$

Not available

15

Toro 82-1620

WASHER-LOCK, SPRING

$

$

Not available

16

Toro 59-1130

NUT-GEAR COVER

$

$

Not available

17

Toro 92-0967

KIT - STATOR

$394.99

$

Usually ships in 3-6 days

0

18

Toro 59-0590

TERMINAL

$

$

Not available

19

Toro 57-9550

CLAMP

$

$

Not available

20

Toro 59-0370

CAP-FUEL OUTLET

$

$

Not available

21

Toro 82-1000

BODY-TERM. CONNECTOR KIT

$

$

Not available

22

Toro 71-6380

CONTROL-IGNITION

$457.99

$

Usually ships in 3-6 days

0

23

Toro 82-1500

Screw-HH
(Superseded to 71-6390)

$

$

Not available

24

Toro NN10394

Bolt
(Superseded to 71-6400)

$

$

Not available

25

Toro 82-1660

WASHER-LOCK

$

$

Not available

26

Toro 57-9730

CLIP

$19.99

$

Usually ships in 3-6 days

0

27

Toro 59-1080

SCREW-HWH

$

$

Not available

28

Toro 57-9430

REGULATOR
(Superseded to 117-2742)

$271.99

$

In Stock, only 2 left!

0

29

Toro 79-6490

Gasket-Plate
(Superseded to 57-9260)

$

$

Not available

30

Toro 71-5990

PLATE-COVER

$

$

Not available

31

Toro 71-6000

COIL-BATTERY IGNITION

$

$

Not available

32

Toro 71-6010

ROTOR-IGNITION

$107.99

$

Usually ships in 3-6 days

0

33

Toro 57-9340

SPARK PLUG

$3.49

$

In Stock, only 4 left!

0

34

Toro NN10253

Wire-Plug
(Superseded to 57-9350)

$93.99

$

Usually ships in 3-6 days

0

35

Toro 82-1340

WASHER-FLAT

$

$

Not available

36

Toro NN10248

Nut
(Superseded to 71-6430)

$

$

Not available

37

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

38

Toro 82-1360

SCREW - CAP HEX HEAD

$

$

Not available

39

Toro NN10249

Nut
(Superseded to 71-6440)

$

$

Not available

41

Toro 71-6460

SCREW-HH

$

$

Not available

42

Toro NN10516

Insulator
(Superseded to 71-6410)

$12.99

$

Usually ships in 3-6 days

0
