73421 (416-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) CHOKE LINKAGE Parts Diagram

Garden Tractor

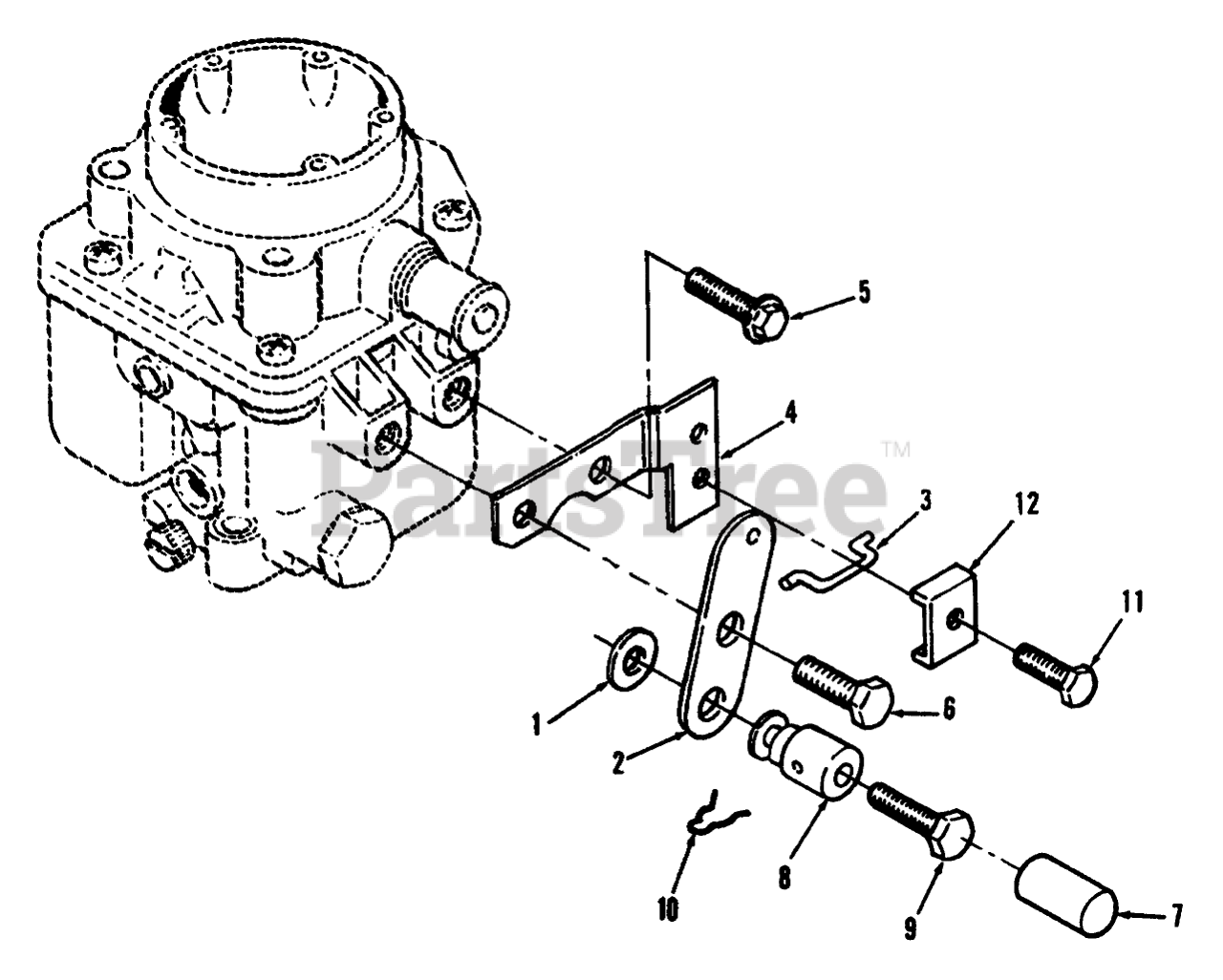

CHOKE LINKAGE Parts Diagram

  • Title

1

Toro 59-0850

Washer

Note: Low Emission Carburetor Not Repairable

$

$

Not available

2

Toro 59-0460

SWIVEL-CHOKE

Note: Low Emission Carburetor Not Repairable

$

$

Not available

3

Toro 57-9180

LINK-CHOKE

Note: Low Emission Carburetor Not Repairable

$

$

Not available

4

Toro 59-0470

BRACKET

Note: Low Emission Carburetor Not Repairable

$15.99

$

Usually ships in 3-6 days

0

5

Toro 72-3880

SCREW-HWH

Note: Low Emission Carburetor Not Repairable

$

$

Not available

6

Toro 92-0916

MACHINE SCREW

Note: Low Emission Carburetor Not Repairable

$

$

Not available

7

Toro NN10830

PLUG

Note: Low Emission Carburetor Not Repairable

$

$

Not available

8

Toro 57-9170

SWIVEL

Note: Low Emission Carburetor Not Repairable

$

$

Not available

9

Toro 72-3890

SCREW

Note: Low Emission Carburetor Not Repairable

$

$

Not available

10

Toro 59-0720

PIN-COTTER

Note: Low Emission Carburetor Not Repairable

$

$

Not available

11

Toro 72-3900

SCREW-TAPPING

Note: Low Emission Carburetor Not Repairable

$7.99

$

Usually ships in 3-6 days

0

12

Toro 57-9190

CLIP

Note: Low Emission Carburetor Not Repairable

$

$

Not available
