73421 (416-H) - Toro Garden Tractor (SN: 059001047 - 059999999) (1995) TRANSAXLE ASSEMBLY Parts Diagram

Garden Tractor

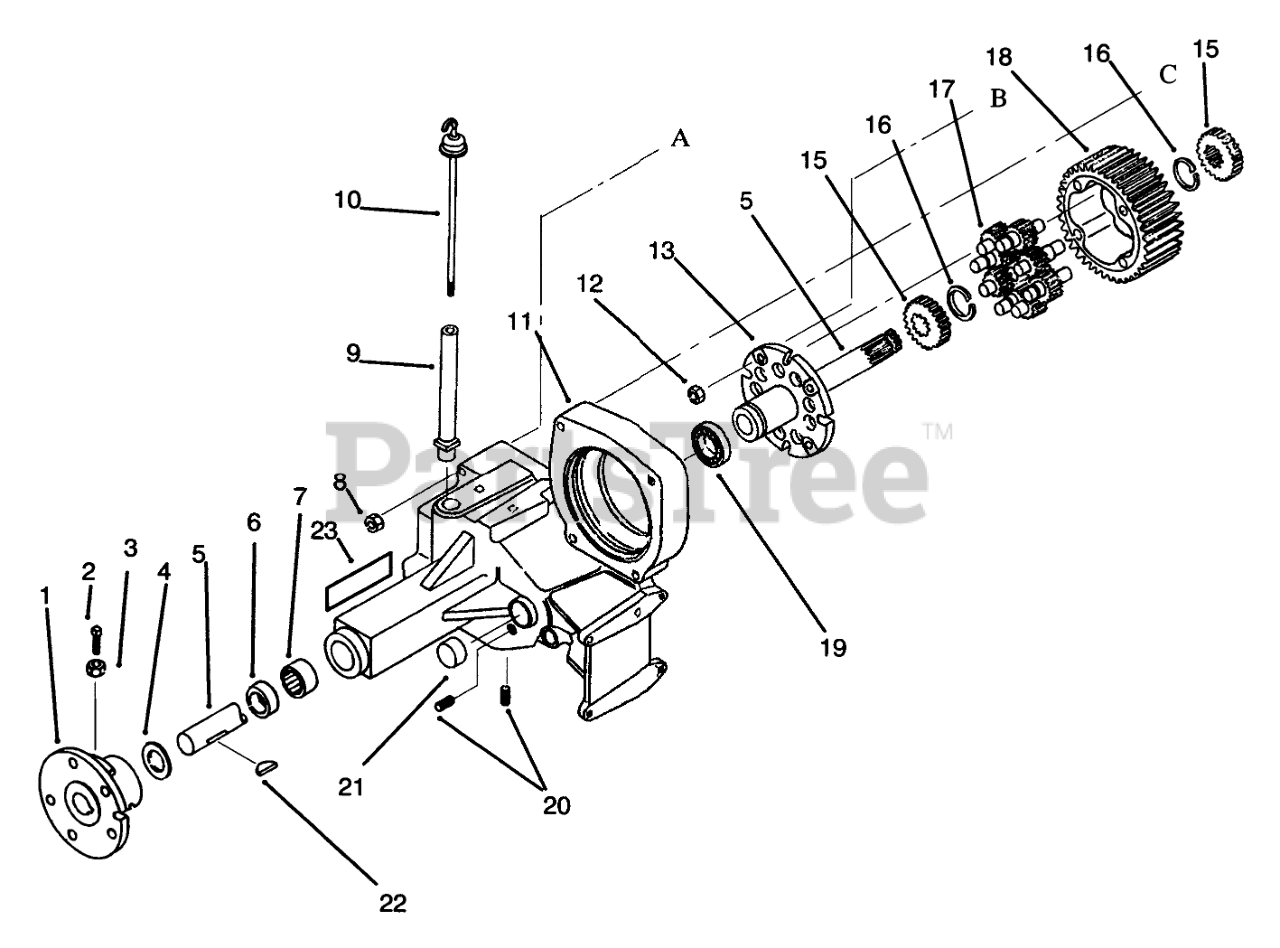

TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 105763

Hub Rear
(Superseded to 105763-03)

$191.99

$

In Stock, only 1 left!

0

2

Toro 3243-5

SCREW-SET, SQH

$2.99

$

In Stock, Qty 13

0

3

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

4

Toro 106826

WASHER-THRUST

$14.99

$

In Stock, only 1 left!

0

5

Toro 108362

AXLE-REAR RH

$

$

Not available

6

Toro 6449

SEAL-OIL

$24.99

$

In Stock, only 1 left!

0

7

Toro 9416

BEARING

$81.99

$

Usually ships in 3-6 days

0

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

9

Toro 106448

NIPPLE-TRANS FILL

$

$

Not available

10

Toro 110768

Dipstick
(Superseded to 110768-03)

$

$

Not available

11

Toro 92-7298

Case-Transaxle, RH (Incl. Ref. #23)

$

$

Not available

12

Toro 108881

NUT

$6.49

$

In Stock, only 2 left!

0

13

Toro 111196

END CAP-DIFFERENTIAL

$254.99

$

In Stock, only 1 left!

0

15

Toro 101889

GEAR-AXLE DIFFERENTIAL

$

$

Not available

16

Toro 105876

RING-SNAP

$5.99

$

In Stock, only 2 left!

0

17

Toro 101623

GEAR-PINION, 11T

$116.99

$

Usually ships in 3-6 days

0

18

Toro 105061

GEAR-DIFFERENTIAL RING, 43T

$1209.99

$

Usually ships in 3-6 days

0

19

Toro 111199

BEARING-BALL

$125.99

$

In Stock, only 3 left!

0

20

Toro 281-10

PLUG

$18.99

$

Usually ships in 3-6 days

0

21

Toro 1532

BEARING-NEEDLE

$59.99

$

In Stock, only 4 left!

0

22

Toro 937108

KEY-WOODRUFF

$5.99

$

In Stock, only 3 left!

0

Toro 92-7297

Transaxle (Incl Ref. #23)

$

$

Not available

23

Toro 88-2790

DECAL - DANGER

$

$

Not available
