73421 (416-H) - Toro Garden Tractor (SN: 059000001 - 059001046) (1995) HYDRAULIC PUMP AND MOTOR Parts Diagram

Garden Tractor

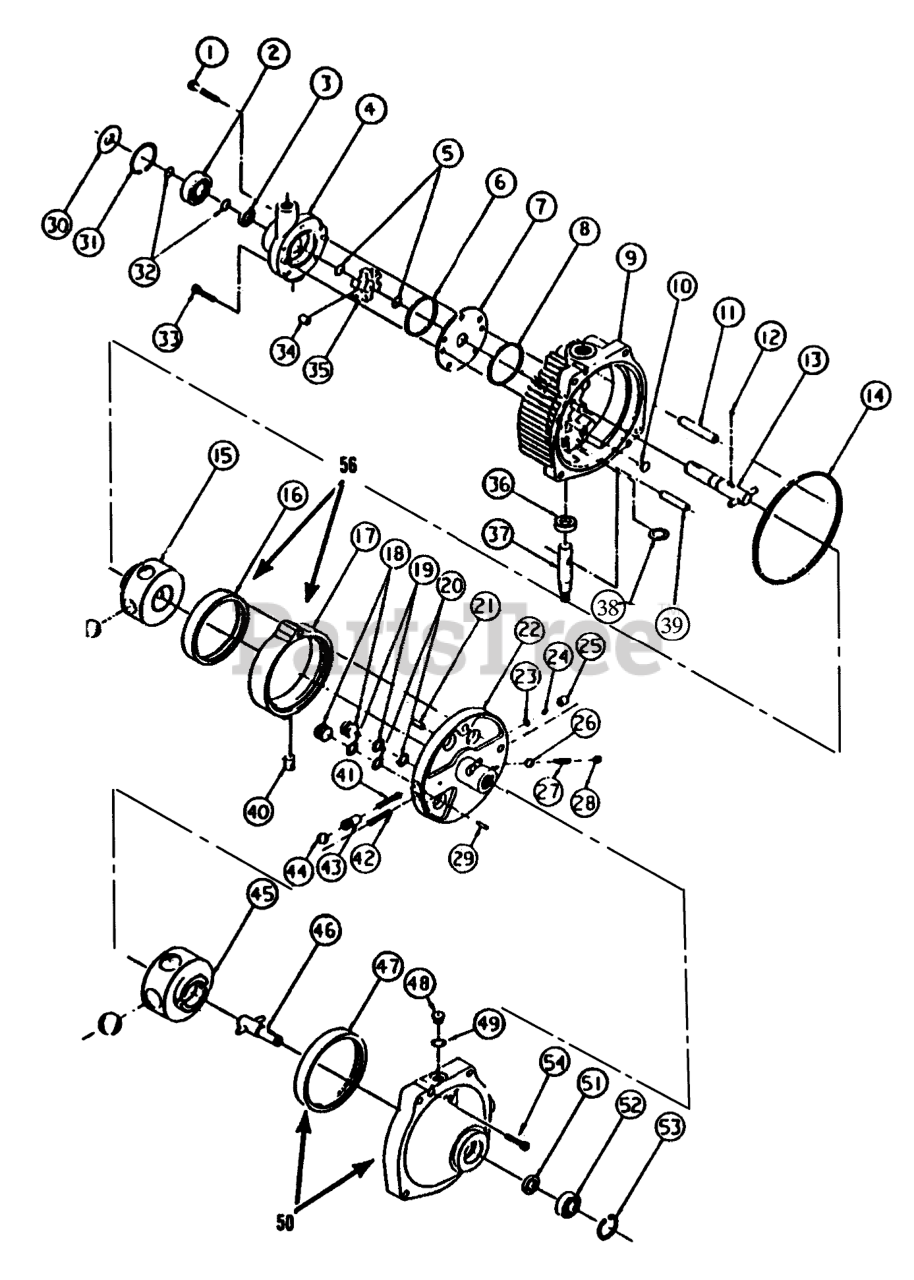

HYDRAULIC PUMP AND MOTOR Parts Diagram

  • Title
1

Toro 112635

Screw
(Superseded to 56-2800)

$

$

Not available

2

Toro 112636

Bearing-Input
(Superseded to 56-2810)

$209.99

$

Usually ships in 3-6 days

0

3

Toro 112604

Seal
(Superseded to 56-2820)

$40.99

$

In Stock, only 2 left!

0

4

Toro 112637

Housing-Pump Assembly (Incl. Ref. #2)

$

$

Not available

5

Toro 112654

Ring
(Superseded to 56-3090)

$5.49

$

In Stock, only 2 left!

0

6

Toro 112638

Ring-Seal
(Superseded to 56-2850)

$7.49

$

In Stock, Qty 6

0

7

Toro 112639

Plate
(Superseded to 56-2860)

$

$

Not available

8

Toro 112640

Ring-Seal
(Superseded to 56-2870)

$7.99

$

In Stock, only 1 left!

0

9

Toro 112641

Cover Assembly (Incl. Ref. #3, 6, 8, 10, 11, 19, 20, 36-39, &51)

$

$

Not available

10

Toro 112595

Button
(Superseded to 56-2880)

$

$

Not available

11

Pin-Pivot

$

$

Not available

12

Toro 112642

Pin
(Superseded to 56-2900)

$

$

Not available

13

Toro 112643

Shaft-Input
(Superseded to 56-2910)

$

$

Not available

14

Toro 112644

Ring-Seal
(Superseded to 56-2920)

$

$

Not available

15

Toro 112645

Rotor-Pump
(Superseded to 56-2930)

$

$

Not available

16

Toro 113136

PUMP-RACE

$

$

Not available

17

Ring-Cam

$

$

Not available

18

Toro 113041

Piston
(Superseded to 56-2950)

$

$

Not available

19

Ring-Back Up

$

$

Not available

20

"O" Ring

$

$

Not available

21

Toro 112608

Pin-Coil
(Superseded to 56-2980)

$

$

Not available

22

Toro 112646

Pintle Assembly (Inc. Ref. #21, 23-29, & 41-44)
(Superseded to 56-2990)

$3389.99

$

Usually ships in 3-6 days

0

23

Toro 112611

Ring-Retaining
(Superseded to 56-3000)

$4.49

$

In Stock, only 2 left!

0

24

Toro 112610

Ball
(Superseded to 56-3010)

$

$

Not available

25

Toro 112647

Body-Check Valve
(Superseded to 56-3020)

$

$

Not available

26

Toro 112648

Ball
(Superseded to 56-3030)

$

$

Not available

27

Toro 112649

Spring-Relief Valve
(Superseded to 56-3040)

$

$

Not available

28

Toro 112650

Plug-Relief Valve
(Superseded to 56-3050)

$

$

Not available

29

Toro 112651

Pin
(Superseded to 56-3060)

$

$

Not available

30

Toro 112652

SHIELD-GRASS

$

$

Not available

31

Toro 112653

RETAINING-RING

$

$

Not available

32

Toro 112654

Ring
(Superseded to 56-3090)

$5.49

$

In Stock, only 2 left!

0

33

Toro 112616

Screw
(Superseded to 56-3100)

$

$

Not available

34

Toro 112656

Roller
(Superseded to 56-3110)

$

$

Not available

35

Toro 112657

Carrier
(Superseded to 56-3120)

$200.99

$

Usually ships in 3-6 days

0

36

Toro 112658

Seal
(Superseded to 56-3130)

$

$

Not available

37

Toro 112659

Kit-Control
(Superseded to 56-3140)

$

$

Not available

38

Washer

$

$

Not available

39

Dowel

$

$

Not available

40

Toro 112660

Insert-Cam Ring
(Superseded to 56-3170)

$

$

Not available

41

Toro 112661

Spring-Acc. Valve
(Superseded to 56-3180)

$

$

Not available

42

Toro 112661

Spring-Acc. Valve
(Superseded to 56-3180)

$

$

Not available

43

Toro 112662

Body-Acc. Valve
(Superseded to 56-3200)

$

$

Not available

44

Toro 112663

Ball
(Superseded to 56-3210)

$

$

Not available

45

Toro 112664

Rotor-Motor
(Superseded to 56-3220)

$

$

Not available

46

Toro 112665

Shaft-Output
(Superseded to 56-3230)

$

$

Not available

47

Toro 113137

Race-Motor
(Superseded to 56-3240)

$

$

Not available

48

Toro 112613

Plug-"O"Ring (incl. Ref. #49)
(Superseded to 56-3250)

$

$

Not available

49

Toro 112614

O-Ring
(Superseded to 56-3260)

$

$

Not available

50

Toro 112669

Body Assembly (Incl. Ref. #51, 53, & 54)

$

$

Not available

51

Seal ASM

$

$

Not available

52

Toro 112666

Bearing-Output
(Superseded to 112602)

$63.99

$

Usually ships in 3-6 days

0

53

Toro 112600

Retaining Ring
(Superseded to 56-3290)

$

$

Not available

54

Toro 112616

Screw
(Superseded to 56-3100)

$

$

Not available

55

Toro 112667

Kit-Seal Overhaul (Incl. Ref. #3, 6, 8, 14, 19, 20, 36, 49, & 51)
(Superseded to 56-3310)

$116.99

$

In Stock, only 2 left!

0

56

Toro 112668

Ring-Cam
(Superseded to 56-2940)

$

$

Not available
