73421 (416-H) - Toro Garden Tractor (SN: 059000001 - 059001046) (1995) ENGINE, TORO POWER PLUS Parts Diagram

Garden Tractor

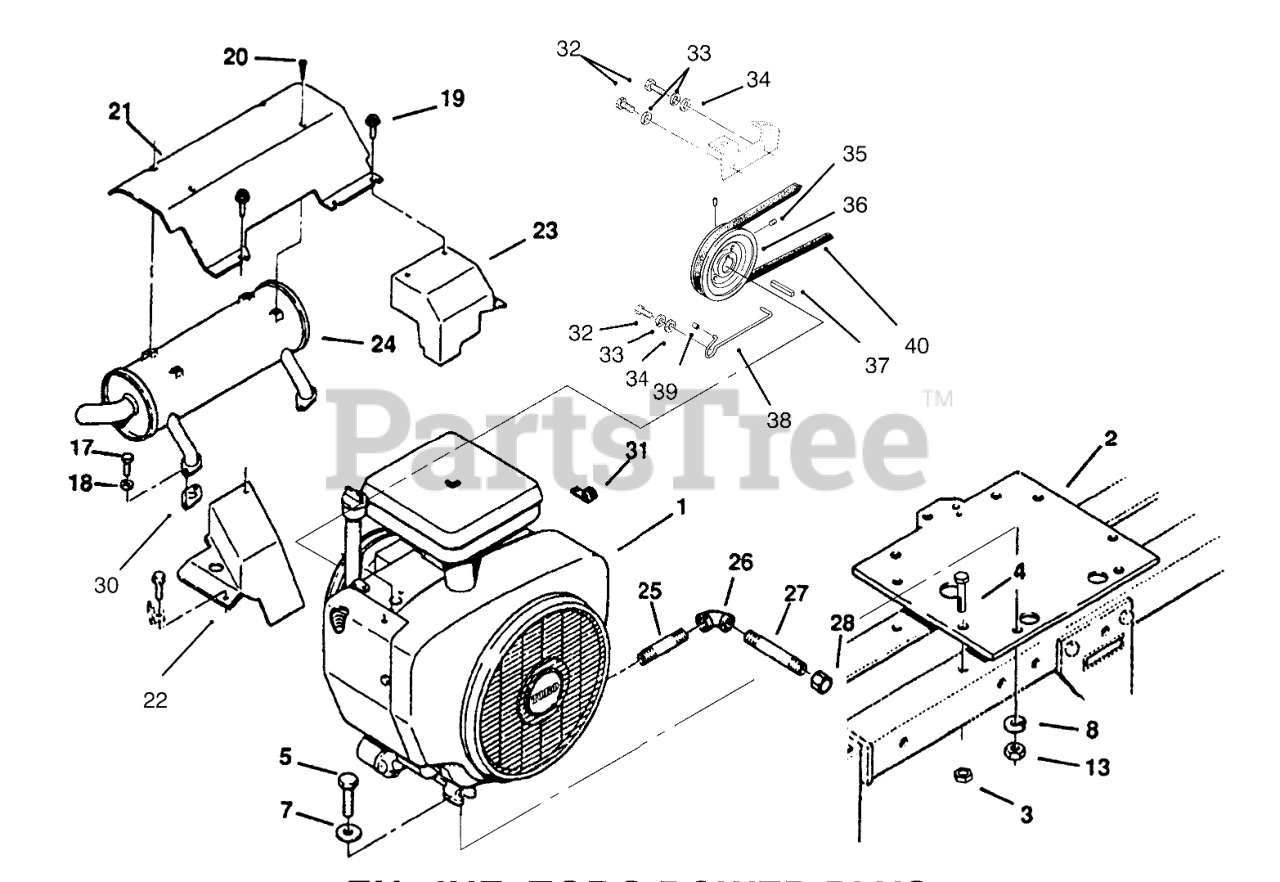

ENGINE, TORO POWER PLUS Parts Diagram

  • Title

1

Toro 79-5210

Engine-16HP TORO Power Plus P216G-I/10976D
(Superseded to 95-7690)

$

$

Not available

2

Toro 116609

PLATE-ENGINE B

$113.99

$

Usually ships in 3-6 days

0

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

5

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

13

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

17

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

19

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

20

Toro 910331

Screw
(Superseded to 9103312)

$2.49

$

In Stock, Qty 6

0

21

Toro 114217

Air Deflector
(Superseded to 94-1803)

$

$

Not available

22

Toro 114215

LH Exhaust Cover
(Superseded to 114215-03)

$

$

Not available

23

Toro 114216

RH Exhaust Cover
(Superseded to 114216-03)

$

$

Not available

24

Toro 116470

MUFFLER-EXHAUST

$

$

Not available

25

Toro 114636

Pipe
(Superseded to 289-45)

$19.99

$

Usually ships in 3-6 days

0

26

Toro 114764

ELBOW 3/8 90 DEG

$17.99

$

In Stock, only 1 left!

0

27

Toro 114763

PIPE-NIPPLE 3/8 X 4"

$15.99

$

In Stock, only 1 left!

0

28

Toro 5224

Cap
(Superseded to 288-4)

$23.99

$

In Stock, only 1 left!

0

30

Toro 57-9210

GASKET

$17.99

$

In Stock, Qty 6

0

31

Toro 111357

J-CLIP

$

$

Not available

32

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

33

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

34

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

35

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

36

Toro 7443

PULLEY

$

$

Not available

37

Toro 105453

Key

$1.99

$

In Stock, only 2 left!

0

38

Toro 111242

GUIDE BELT

$18.99

$

Usually ships in 3-6 days

0

39

Toro 112841

CAP

$

$

Not available

40

Toro 114895

BELT-V

$61.99

$

In Stock, only 1 left!

0
