73421 (416-H) - Toro Garden Tractor (SN: 059000001 - 059001046) (1995) CRANKSHAFT, CAMSHAFT, FLYWHEEL Parts Diagram

Garden Tractor

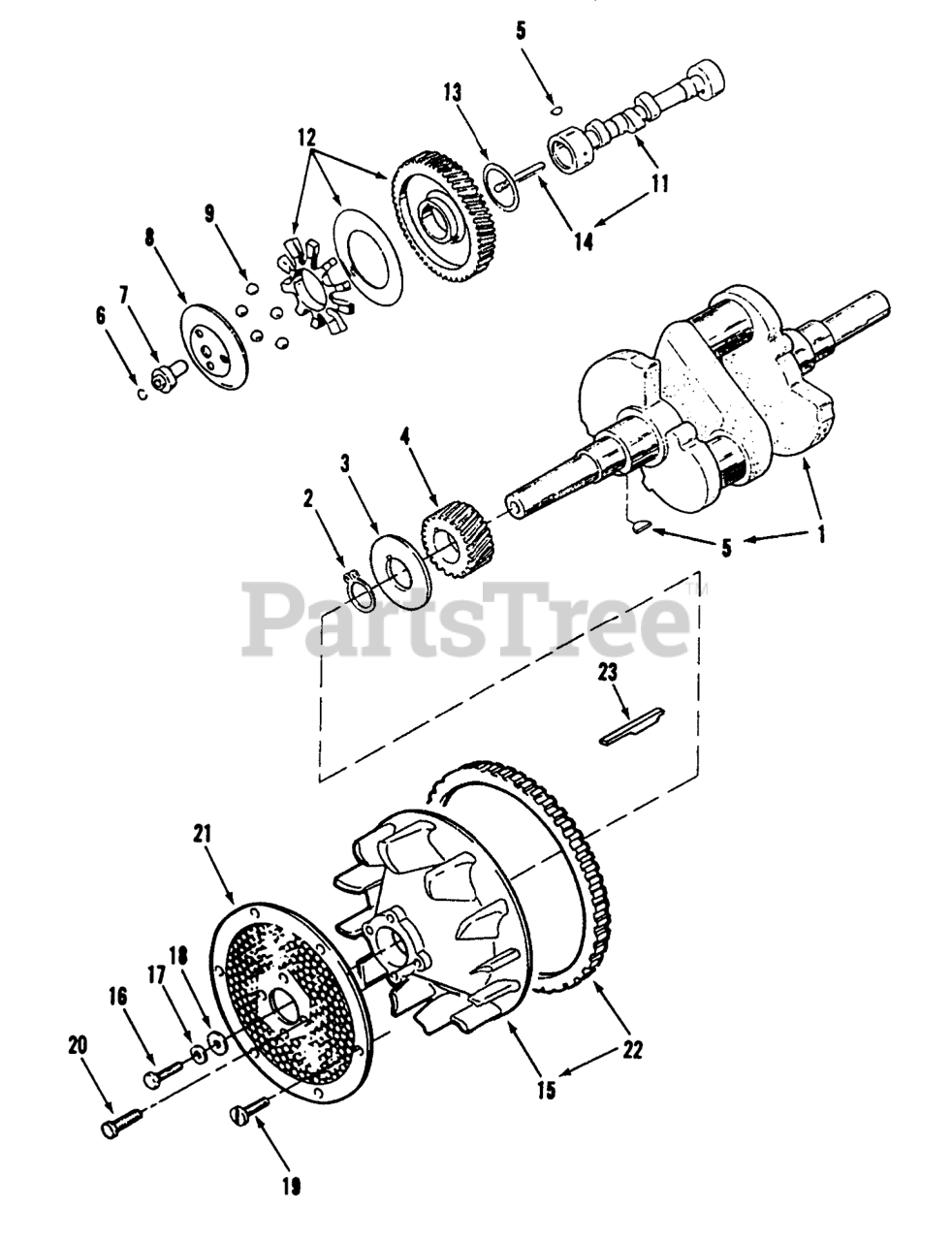

CRANKSHAFT, CAMSHAFT, FLYWHEEL Parts Diagram

  • Title

1

Toro NN10853

CRANK-SHAFT

$

$

Not available

2

Toro 57-9710

RING

$

$

Not available

3

Toro 57-8140

WASHER

$

$

Not available

4

Toro 57-8130

GEAR

$

$

Not available

5

Toro 57-9660

KEY

$7.99

$

Usually ships in 3-6 days

0

6

Toro 57-9090

RING

$

$

Not available

7

Toro 57-9130

HUB-GOVERNOR CUP

$

$

Not available

8

Toro 59-0450

CUP-GOVERNOR

$

$

Not available

9

Toro 57-9640

BEARING

$

$

Not available

11

Toro NN10032

Camshaft (Incl. Item 13)

$

$

Not available

12

Toro 57-8210

Camshaft Gear (Incl. Gear, Spacer, & Plate)

$

$

Not available

13

Toro 57-8230

WASHER-THRUST

$

$

Not available

14

Toro 59-0400

PIN-CENTER

$

$

Not available

15

Toro 71-5920

Flywheel (Incl. Ring Gear)

$

$

Not available

16

Toro 57-8150

SCREW

$

$

Not available

17

Toro 82-1320

WASHER-FLAT

$

$

Not available

18

Toro 59-0810

WASHER-FLAT

$

$

Not available

19

Toro 71-6340

LOCK SCREW

$

$

Not available

20

Toro 82-1400

SCREW - CAP HEX HEAD

$

$

Not available

21

Toro 79-6440

Screen

$166.99

$

Usually ships in 3-6 days

0

22

Toro 57-8180

GEAR

$

$

Not available

23

Toro 82-1150

KEY - MACHINE

$

$

Not available
