73421 (416-H) - Toro Garden Tractor (SN: 049000001 - 049999999) (1994) STARTER Parts Diagram

Garden Tractor

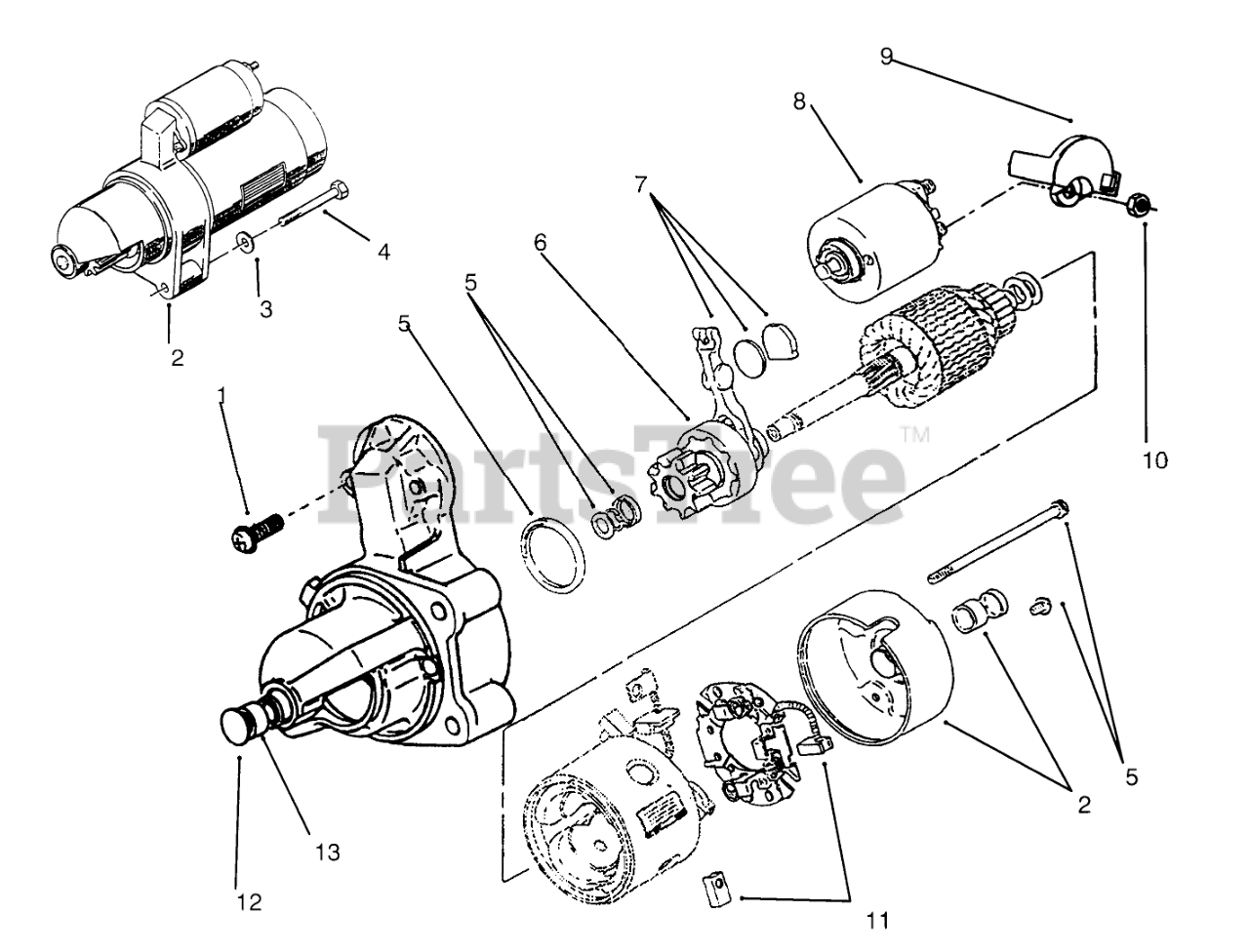

STARTER Parts Diagram

  • Title
1

Toro 62-2760

Starter Hdwr Kit (Incl. Solenoid Screws 2], Brush Holder Screws 2], Thru Bolts2], Armature Shims 2], Pinion Stop Collar, & Pinion Retaining Ring)

$

$

Not available

2

Toro 71-6040

STARTER
(Superseded to 112-7023)

$419.99

$

Usually ships in 3-6 days

0

3

Toro 57-9770

WASHER

$

$

Not available

4

Toro 79-6580

SCREW

$

$

Not available

5

Toro NN10886

DUST-SEAL KIT

$

$

Not available

6

Toro 72-3940

Clutch-Starter (Incl. Pinion Gear w/Clutch)

$

$

Not available

7

Toro 62-2770

Kit-Starter Shift Lever (Incl. Shift Lever, Wear Plate & Rubber Plug)

$

$

Not available

8

Toro 72-3930

Kit-Starter Solenoid (Incl. Solenoid, Spring, & Plunger)

$

$

Not available

9

Toro NN10930

Cap-Starter Solenoid
(Superseded to 82-1720)

$

$

Not available

10

Toro NN10768

Nut
(Superseded to 92-5935)

$

$

Not available

11

Toro NN10883

Kit-Starter Brush (Incl. Positive Brush 2] & Negative Brush w/Pigtail)

$

$

Not available

12

Toro 62-2730

Kit-Bushing (Incl. Front Bushing & Rear Cap w/Bushing)

$

$

Not available

13

Toro NN10929

Holder-Starter Brush (Incl. Brush Holder w/Negative Brush)

$455.99

$

Usually ships in 3-6 days

0
