73421 (416-H) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) HOOD STAND AND SUPPORTS Parts Diagram

Garden Tractor

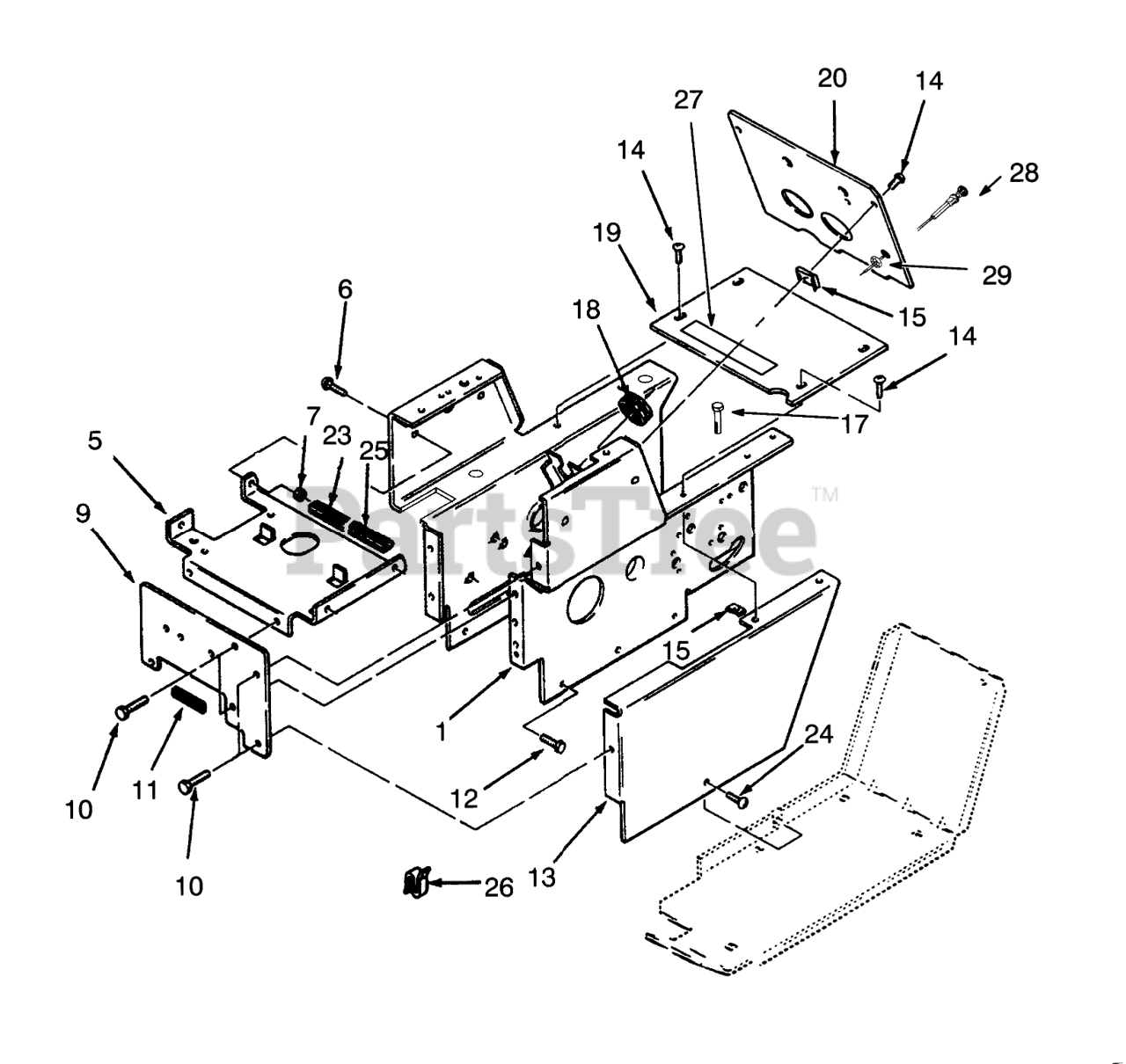

HOOD STAND AND SUPPORTS Parts Diagram

  • Title

1

Toro 79-4900

Handstand
(Superseded to 95-7676-03)

$

$

Not available

5

Toro 78-3010

SUPORT-BATERYB
(Superseded to 78-3010-03)

$

$

Not available

6

Toro 117371

BOLT CARR. 5/16X1/2 BK

$

$

Not available

7

Toro 9151126

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

9

Toro 78-3020

Front Plate
(Superseded to 78-3020-03)

$

$

Not available

10

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

11

Toro 106772

EDGE TRIM 4IN OF 102896

$

$

Not available

12

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

Toro 926696

Bolt
(Superseded to 9266964)

Note: Not illustrated

$9.49

$

Usually ships in 3-6 days

0

13

Toro 79-5130

Cover-Side LH
(Superseded to 79-5130-01)

$

$

Not available

14

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

15

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

17

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

18

Toro 104248

GROMMET

$12.99

$

Usually ships in 3-6 days

0

19

Toro 92-7294

Plate-Shift Cover, Top (Incl. Ref. #27)

$

$

Not available

20

Toro 78-5620

Plate-Hood Stand
(Superseded to 78-5620-03)

$

$

Not available

23

Toro 110142

EDGE TRIM 5" OF 102896

$

$

Not available

24

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

25

Toro 106454

EDGE TRIM 2" 102896

$

$

Not available

26

Toro 3023

SPEED CLIP

$

$

Not available

27

Toro 79-0370

DECAL-DANGER

$

$

Not available

28

Toro 114951

CONTROL-CHOKE

$118.99

$

Usually ships in 3-6 days

0

29

Toro 109530

NUT-HEX PALNUT

$1.49

$

In Stock, only 4 left!

0
