73421 (416-H) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) FUEL SYSTEM Parts Diagram

Garden Tractor

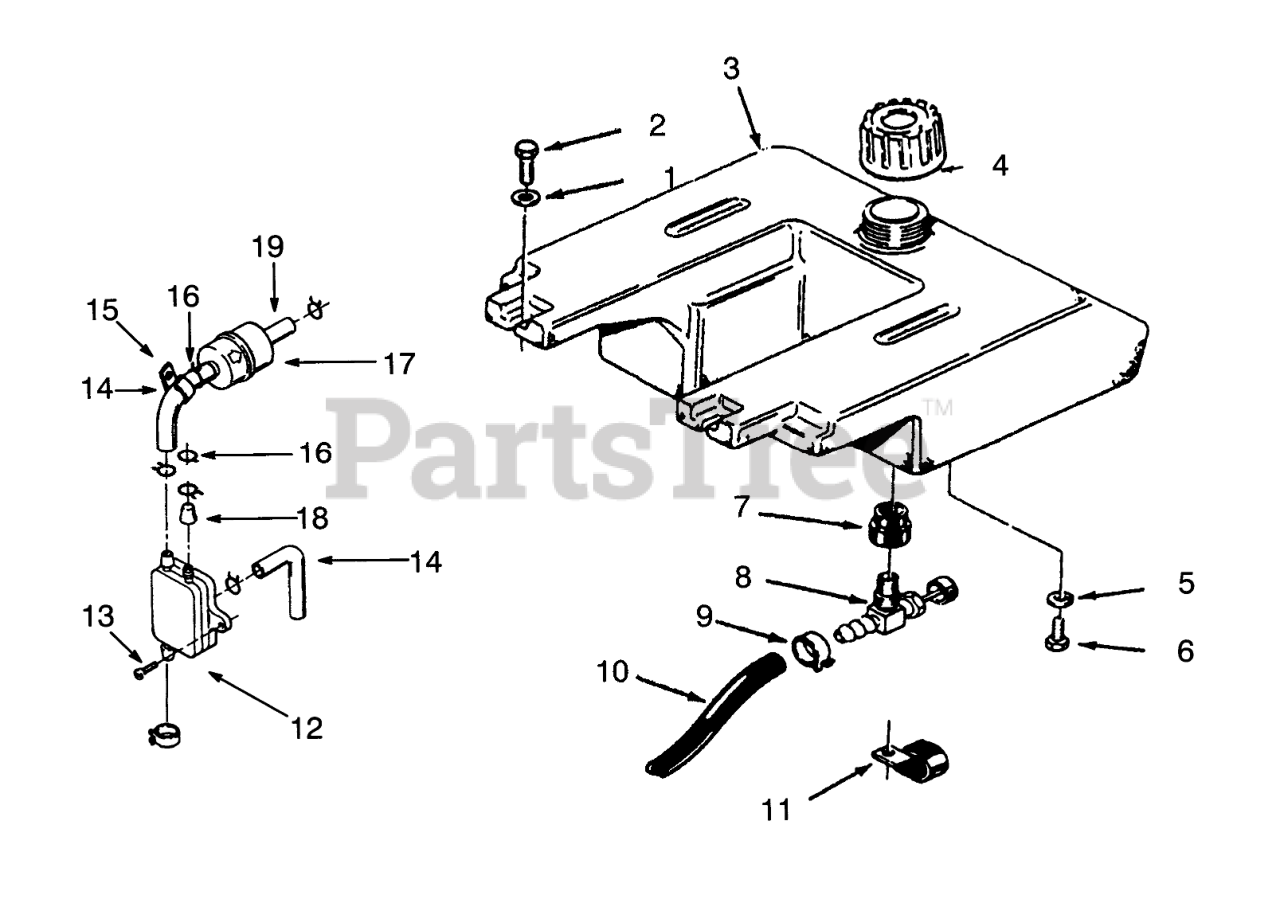

FUEL SYSTEM Parts Diagram

  • Title

1

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

2

Toro 926697

Bolt
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

3

Toro 106234

Tank-Fuel(Incl. Ref. #5 & 7)

$456.99

$

Usually ships in 3-6 days

0

4

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

5

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

6

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

7

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 12

0

8

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

9

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

10

Toro 103787

Fuel Line 62
(Superseded to 110521)

$

$

Not available

11

Toro 950154

Clamp

$

$

Not available

12

Toro 57-9080

PUMP-FUEL

$

$

Not available

13

Toro 59-1050

SCREW-TAPPING PAN HD

$

$

Not available

14

Toro NN10302

Hose
(Superseded to 71-6100)

$11.99

$

Usually ships in 3-6 days

0

15

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

16

Toro 82-1080

CLAMP-HOSE

$7.49

$

In Stock, only 3 left!

0

17

Toro NN10506

Filter-Fuel
(Superseded to 71-5960)

$32.99

$

In Stock, Qty 7

0

18

Toro 59-0370

CAP-FUEL OUTLET

$

$

Not available

19

Toro 92-0923

FUEL HOSE
(Superseded to 82-1100)

$

$

Not available
